The figure below shows a specification example for notifying Asset Information Manager of only emergencies and warnings from the information displayed on the JP1/IM side.

The following describes the values to be specified in JP1/IM - Manager's Action Parameter Detailed Definitions dialog box:

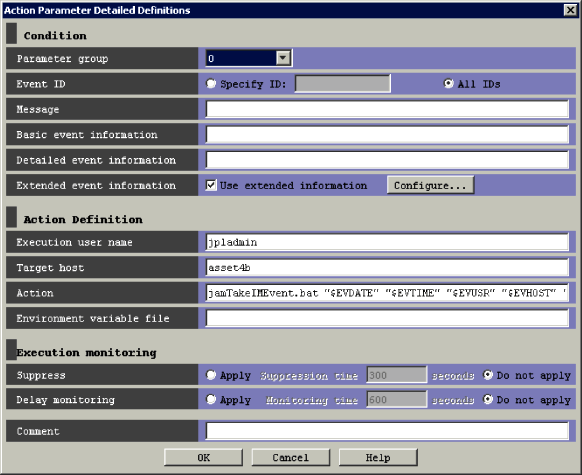

Figure 6-4 Action Parameter Detailed Definitions dialog box (JP1 event automatic collection setting)

• Condition

  • Leave the Parameter group settings unchanged.
  • For Event ID, select All IDs.
  • Leave Message, Basic event information, and Detailed event information blank.
  • Select the Use extended information check box for Extended event information, and then click the Configure button.
    From the displayed Action Parameter Detailed Definitions (extended event information) dialog box, select the Emergency and Warning check boxes.

• Action Definition

  • For Execution user name, specify the name of the user who executes actions.
  • For Target host, specify the name of the host that executes actions.
  • For Action, specify jamTakeIMEvent.bat "$EVDATE" "$EVTIME" "$EVUSR" "$EVHOST" "$EVIPADDR" "$EVSEQNO" "$EVMSG" "$EVSEV" "$ACTHOST" "$EV"OBJECT_TYPE"" "$EV"SNMP_SOURCE"".
    Do not express a file name as a path.

  • Leave Environment variable file blank.
• Execution monitoring
  Specify Suppress, Delay monitoring, and Comment as needed.


When you register a resolution to a problem in Asset Information Manager, you must set the JP1/IM - Manager jcochstat command for automatic notification to notify JP1/IM - Manager that the problem has been resolved.

The following shows the value specified in the JP1/IM - Manager Action Parameter Detailed Definitions dialog box.

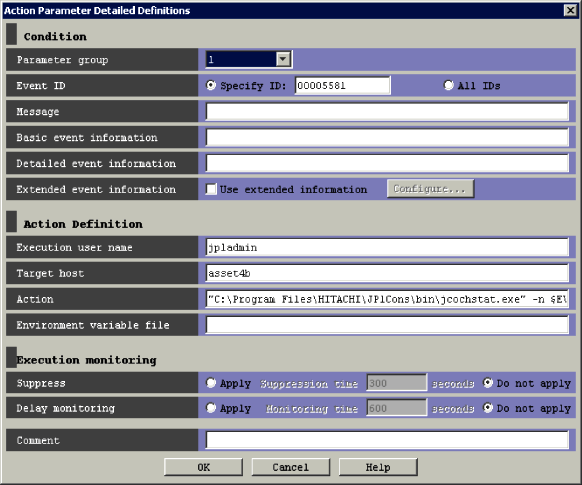

Figure 6-5 Action Parameter Detailed Definitions dialog box (error resolution completion notification setting)

• Condition

  • Specify the Parameter group settings different from the setting in (1).
  • Select Specify ID for Event ID, and specify 00005581.
  • Leave Message, Basic event information, and Detailed event information blank.
  • Do not check Extended event information.
• Action Definition

  • Specify the user name to execute actions in Execution user name.
  • Specify the host name to execute actions in Target host.
  • Specify the absolute path to the jcochstat command in Action and -n $EV"EVENT_SEQNO" -k PROCESSED.
  • Leave Environment variable file blank.
• Execution monitoring
  Specify Suppress, Delay monitoring, and Comment as needed.


To reflect the JP1 event or SNMP trap resolution status changed by Asset Information Manager, select the Resolution status change approval check box for the jcochstat command on the Communication tab of the System Environment Settings dialog box.
