The figure below shows an example of asset management system configuration linked to JP1/IM - Manager. In this system configuration, the asset management server connects to the JP1/IM - Manager server and acquires the managed client's program information.

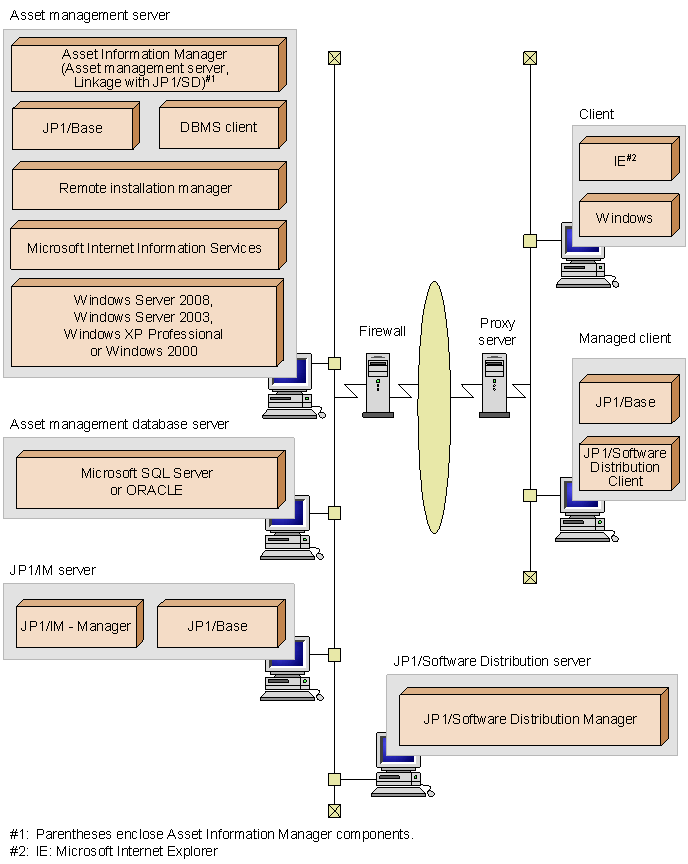

Figure 4-6 System configuration example linked to JP1/IM - Manager
![[Figure]](FIGURE/ZU040600.GIF)
