ftsregcv - displays transmission information

Format

ftsregcv [-c transmission-card-name] [-m format-file-name | -v]

Function

The ftsregcv command displays transmission information that has been registered.

Arguments

-c transmission-card-name

Specifies the name of the transmission card that is to be displayed.

The command displays the transmission card information that matches the specified transmission card name.

-m format-file-name ((1 to 256-byte character string))

Displays transmission information in the format that was set up in the specified format file.

For details about the format file, see E. Format Files Used for Output of Definition Information.

If a relative path is specified for the format file name, the command assumes the directory relative to the command execution directory.

This argument and -v are mutually exclusive.

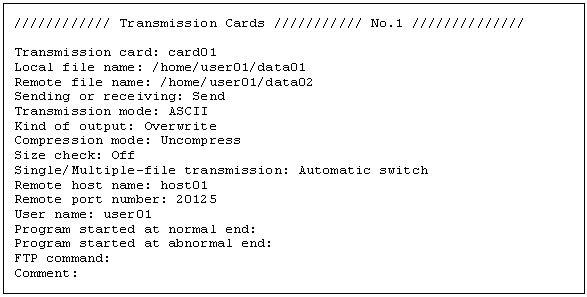

Example of display when the default format file is specified:

If -m and -v are both omitted, the command displays information in the format that was set up in the default format file.

For details about the default format file, see E. Format Files Used for Output of Definition Information.

-v

Displays transmission information in list format.

This argument and -m are mutually exclusive.

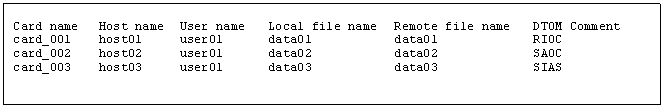

Example of display:

In the list format, the meanings of the information in the DTOM column are as follows:

• D: Send/receive type

  • S: Send
  • R: Receive
• T: Transmission type

  • A: ASCII
  • I: Binary
• O: Output type

  • O: Overwrite
  • A: Append
• M: Compression mode

  • S: Uncompressed
  • C: Compressed

If the list format is used, the length of each item is limited as shown in the table below.

Table 6-6 Number of characters displayed in the list format columns

Item name	Maximum number of characters displayed
Card name	14 characters
Host name	14 characters
User name	14 characters
Local file name	19 characters
Remote file name	19 characters
Comment	20 characters

If -m and -v are both omitted, the command displays information in the format that was set up in the default format file.

For details about the default format file, see E. Format Files Used for Output of Definition Information.

Return values

0	Normal termination
64	Abnormal termination during display
91	Abnormal termination due to a syntax error in the command parameter
