5.1.3 Performing scheduled transmissions

To perform scheduled transmissions, you must first create a jobnet and then register the schedule in the jobnet.

Organization of this subsection
(1) Creating a jobnet
(2) Registering a schedule

(1) Creating a jobnet

To create a jobnet:

  1. From the Windows Start menu, choose Programs, JP1_Automatic Job Management System 3 - View, and Job System Management, and then log in.
    The JP1/AJS3 - View window is displayed.

  2. From the Edit menu, choose New and then Jobnet to create a jobnet.

  3. Specify each setting and then click OK.
    The following figure shows an example of the settings. For details, see the Job Management Partner 1/Automatic Job Management System 3 Linkage Guide.

    Figure 5-3 Example of the settings in the Define Details - [Jobnet] dialog box

    [Figure]

  4. Double-click the created jobnet.
    The Jobnet Editor window appears.

  5. Select Exclusive edit.

  6. From the icon list, drag the required job icon to the map area.
    The JP1/FTP icon is the [Figure] icon on the Custom Jobs page.
    The Define Details - [Custom Job] dialog box appears.

  7. In Command statement, specify the transmission card in the following format:
    ftstran transmission-card-name
    The following figure shows an example of the settings.

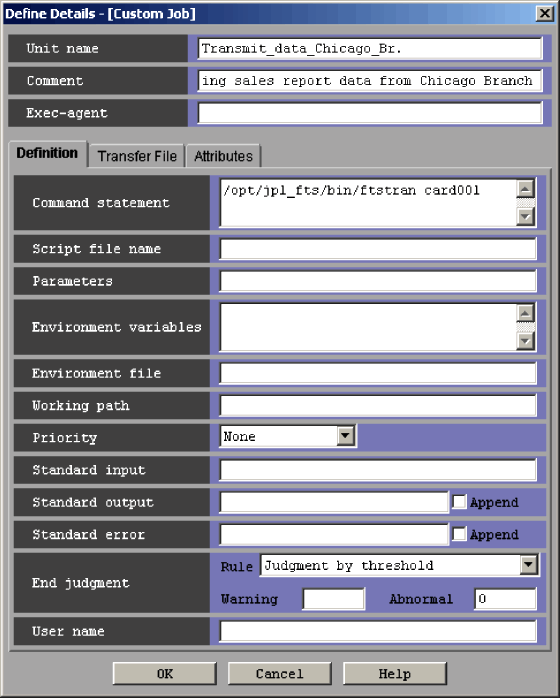

    Figure 5-4 Example of the settings in the Define Details - [Custom Job] dialog box

    [Figure]

  8. Specify other settings, and then click OK.
    For details, see the Job Management Partner 1/Automatic Job Management System 3 Linkage Guide.

  9. If necessary, set the job type as a UNIX job and associate the jobs.
    The following figure shows an example of the settings.

    Figure 5-5 Example of the jobnet settings

    [Figure]

  10. Close the Jobnet Editor window.

(2) Registering a schedule

To register a schedule:

  1. From the list area of the JP1/AJS3 - View window, select the jobnet that is to be scheduled, and then from the Edit menu, choose Schedule.
    The Schedule Settings dialog box is displayed.

  2. Specify each setting and then click OK.
    The figure below shows an example of the settings. For details, see the Job Management Partner 1/Automatic Job Management System 3 Linkage Guide.

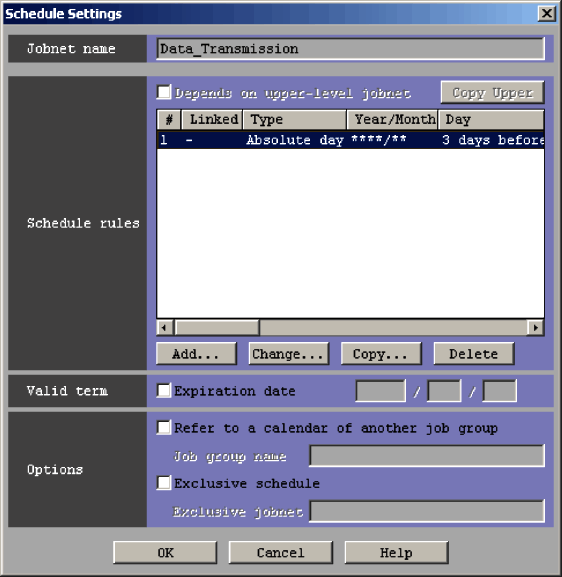

    Figure 5-6 Example of the settings in the Schedule Settings dialog box

    [Figure]

  3. From the list area of the JP1/AJS3 - View window, select the jobnet to be registered for execution, and then from Operations, choose Register for Execution.
    The Register for Execution dialog box is displayed.

  4. Specify each setting and then click OK.
    The figure below shows an example of the settings. For details, see the Job Management Partner 1/Automatic Job Management System 3 Linkage Guide.

    Figure 5-7 Example of the settings in the Register for Execution dialog box

    [Figure]
