Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

3.8.1 Outputting definition information as text

To output definition information as text, you use the File menu in each registration window.

You can select one of the following text output formats:

Output text

This format outputs information to a specified file. If the specified file already exists, its contents are overwritten.

Append text

This format adds the information after the last line of the specified file.

To output definition information as text:

1. Display the window in which the information to be output was registered.
2. From the File menu, choose Output To Text File or Append To Text File.
   A dialog box for specifying the output destination file is displayed.

3. Specify the output destination file and then click OK.
   The following figures show a format file for auto-start programs and an example of text output.

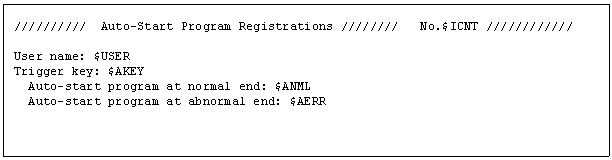

   Figure 3-17 Format file

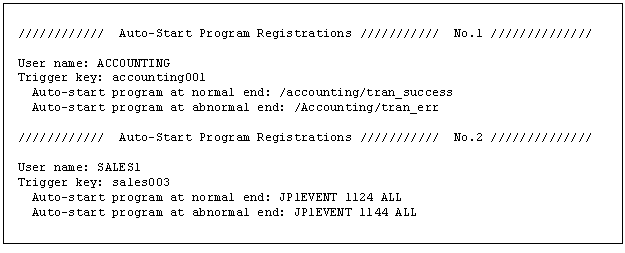

   Figure 3-18 Example of text output
