Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

1.3.4 Checking the JP1/FTP definition information for another host

You can use the Operations-Manager Console to check and change the JP1/FTP definition information and to reference logs.

Note

The Operations-Manager Console is not supported in Linux.

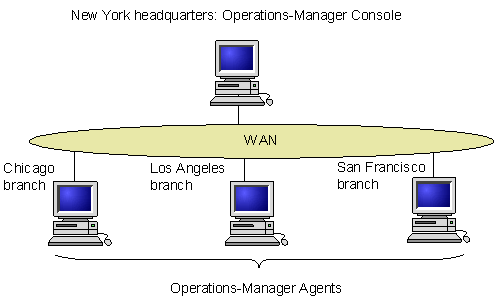

Figure 1-6 Example of checking the JP1/FTP definition information for another host

Overview of operation Executing host Commands that are used

Operations-Manager Console:

Enables you to reference log information and to check, register, change, and delete definition information for another host.

The end that checks definition information is called the Operations-Manager Console, and the end whose definition information is checked is called the Operations-Manager Agent.

In the above example, the New York headquarters can reference each branch's log information and check its definition information. Operations-Manager Console ftsconsole
(see 4. JP1/FTP Operations Management)

Overview of operation	Executing host	Commands that are used
Operations-Manager Console: Enables you to reference log information and to check, register, change, and delete definition information for another host. The end that checks definition information is called the Operations-Manager Console, and the end whose definition information is checked is called the Operations-Manager Agent. In the above example, the New York headquarters can reference each branch's log information and check its definition information.	Operations-Manager Console	ftsconsole (see 4. JP1/FTP Operations Management)
