4.2.1 Environment Definition window

The figure below shows an example of the Environment Definition window for another host that is displayed in the Operations-Manager Console. This subsection describes the functions that you can use in the Environment Definition window.

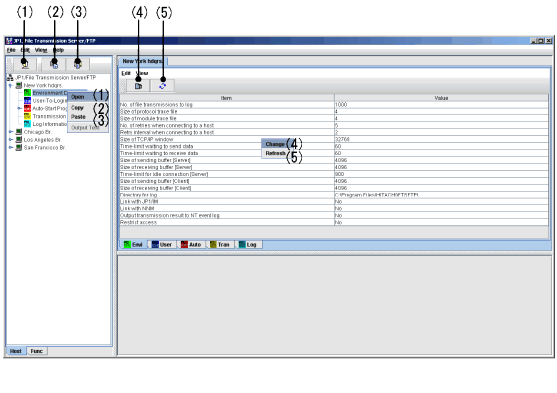

Figure 4-3 Environment Definition window

[Figure]

  1. Click [Figure], or right-click in the tree window: Opens host information.
  2. Click [Figure], or right-click in the tree window: Copies host information.
  3. Click [Figure], or right-click in the tree window: Pastes the copied information.
  4. Click [Figure], or right-click in the list window: Changes the definition information.
  5. Click [Figure], or right-click in the list window: Refreshes the information.

Notes
  • Definition information cannot be copied between Windows hosts and UNIX hosts that have been set as managed hosts.
  • If definition information is copied from a version earlier than 07-50 to version 07-50 or later, single-byte spaces can no longer be entered in the file path names.
