Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

3.4 Registering transmission information

You register information about a transmission (such as the remote host name, remote user name, and transmission file) onto a transmission card. You can also specify a program to be started by the client when transmission finishes.

To register transmission information, you use Transmission Regist. & Exe. at the client to display the Registration And Execution Of Transmission Requests window. Alternatively, you can use a command.

How to display the Registration And Execution Of Transmission Requests window

From the Windows Start menu, choose Programs, JP1_File Transmission Server_FTP, and then Registration And Execution Of Transmission Requests.

The Registration And Execution Of Transmission Requests window is displayed. The following figure shows the Registration And Execution Of Transmission Requests window.

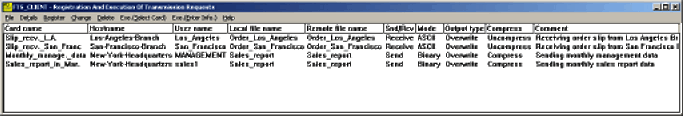

Figure 3-10 Registration And Execution Of Transmission Requests window

Organization of this section

3.4.1 Registering transmission information onto a transmission card

3.4.2 Changing the information registered on a transmission card

3.4.3 Deleting transmission cards

3.4.4 Checking the contents of a transmission card
