Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

3.1.2 Using a definition file to define an environment for JP1/FTP

You can use a definition file to define some of the environment settings for JP1/FTP.

You create a definition file and specify the definition information as described below.

Organization of this subsection

(1) Creating a definition file

(2) Contents of the definition file

(1) Creating a definition file

Create a definition file with the following path name:
JP1/FTP-installation-directory\ftsenv.ini

(2) Contents of the definition file

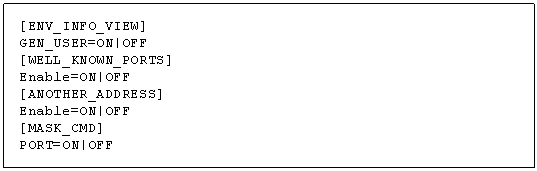

Specify the definition information in the format of a Windows initialization file (.ini), as shown below:

The following table lists and describes the sections, keys, and values that can be specified.

Table 3-2 Contents of the definition file (ftsenv.ini)

Section Key Value Description

[ENV_INFO_VIEW] GEN_USER ON|OFF <<OFF>> Specifies whether a non-Administrator user or a user who does not have the administrator role can reference the definition information.^#1

ON: Make the definition information referenceable.

OFF: Do not display the definition information.

[WELL_KNOWN_PORTS] Enable ON|OFF <<OFF>> Specifies whether to permit connection when a well-known port (0 to 1023) is specified in the PORT command at the FTP server.^#2

ON: Permit connection.

OFF: Reject connection.

[ANOTHER_ADDRESS] Enable ON|OFF <<OFF>> Specifies whether to permit connection when the IP address specified in the PORT command at the FTP server does not belong to the client that established the control connection.^#2

ON: Permit connection.

OFF: Reject connection.

[MASK_CMD] PORT ON|OFF <<OFF>> Specifies whether to suppress reception of the PORT command at the FTP server.^{#2, #3}

ON: Suppress.

OFF: Do not suppress.

#1

In version 8 or earlier, a non-Administrator user or a user who does not have the administrator role cannot reference some of the definition information. If ON is specified, all the definition information becomes referenceable, including the information that was not referenceable in version 8 or earlier.

When the Operations-Manager Console is used to reference definition information, the user must be an administrator or have the administrator role.

#2

This registration information takes effect the next time the JP1/File Transmission Server/FTP Server service starts.

#3

If ON is specified and the FTP server receives the corresponding command, the FTP server sends to the FTP client the response message 500 'command-name': command not understood.

Note that Help for this command is not disabled.

Section	Key	Value	Description
[ENV_INFO_VIEW]	GEN_USER	ON\|OFF <<OFF>>	Specifies whether a non-Administrator user or a user who does not have the administrator role can reference the definition information.^#1 ON: Make the definition information referenceable. OFF: Do not display the definition information.
[WELL_KNOWN_PORTS]	Enable	ON\|OFF <<OFF>>	Specifies whether to permit connection when a well-known port (0 to 1023) is specified in the PORT command at the FTP server.^#2 ON: Permit connection. OFF: Reject connection.
[ANOTHER_ADDRESS]	Enable	ON\|OFF <<OFF>>	Specifies whether to permit connection when the IP address specified in the PORT command at the FTP server does not belong to the client that established the control connection.^#2 ON: Permit connection. OFF: Reject connection.
[MASK_CMD]	PORT	ON\|OFF <<OFF>>	Specifies whether to suppress reception of the PORT command at the FTP server.^{#2, #3} ON: Suppress. OFF: Do not suppress.
