Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

1.3.3 Saving and recovering JP1/FTP settings

You can save and recover JP1/FTP settings and output them in text format.

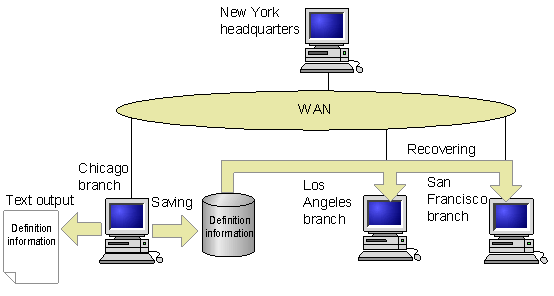

Figure 1-5 Example of saving and recovering JP1/FTP settings

Overview of operation Executing host Menu selection

Saving and recovering JP1/FTP settings:

You can save the definition information created at one host and then recover it at other hosts.

Definition information that can be saved and recovered:

Environment settings

User-to-login settings

Auto-start program settings

Transmission settings

This example recovers definition information for the Chicago branch at the Los Angeles and San Francisco branches. This makes it easy to set up environments. Server/client where the information is registered Saving and Recovering Settings
(see 3.7 Saving and recovering JP1/FTP settings)

Outputting definition information as text:

You can output the registered information in text format. For the output format, use the provided sample.

Definition information that can be output as text:

User-to-login settings

Auto-start program settings

Transmission settings

Log information

Server/client where the information is registered menu-item-for-type-of-information
(see 3.8 Outputting definition information as text)

Overview of operation	Executing host	Menu selection
Saving and recovering JP1/FTP settings: You can save the definition information created at one host and then recover it at other hosts. Definition information that can be saved and recovered: Environment settings User-to-login settings Auto-start program settings Transmission settings This example recovers definition information for the Chicago branch at the Los Angeles and San Francisco branches. This makes it easy to set up environments.	Server/client where the information is registered	Saving and Recovering Settings (see 3.7 Saving and recovering JP1/FTP settings)
Outputting definition information as text: You can output the registered information in text format. For the output format, use the provided sample. Definition information that can be output as text: User-to-login settings Auto-start program settings Transmission settings Log information	Server/client where the information is registered	menu-item-for-type-of-information (see 3.8 Outputting definition information as text)
