Job Management Partner 1/Automatic Job Management System 3 Linkage Guide
When an environment for using HP NNM linkage is set up in JP1/AJS3 - Manager on a UNIX host, jobnet statistical information is registered in MIB objects.
The following figure illustrates the configuration of MIB objects in which jobnet statistical information is registered.

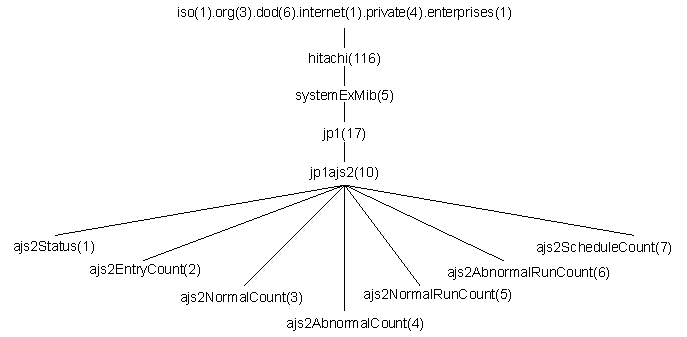

Figure A-9 Configuration of MIB objects
The following table lists MIB objects under jp1ajs2.
Table A-19 MIB objects under jp1ajs2
Object ID Object name Syntax Description 1 ajs2Status DisplayString The status of JP1/AJS3
- Unknown
- The status is unknown.
- Normal
- Executing normally.
- Minor
- Some abnormal-end jobs exist.
- Warning
- Some warning-end jobs exist.
- Critical
- Stopped.
- Restricted
- Restricted processing
2 ajs2EntryCount Gauge Number of registered jobnets 3 ajs2NormalCount Gauge Number of normal-end jobnets as of the current date 4 ajs2AbnormalCount Gauge Number of abnormal- or warning-end jobnets as of the current date 5 ajs2NormalRunCount Gauge Number of jobnets being executed 6 ajs2AbnormalRunCount Gauge Number of jobnets for which abnormal-end or warning is detected 7 ajs2ScheduleCount Gauge Number of jobnets scheduled as of the current date
