Job Management Partner 1/Automatic Job Management System 3 Linkage Guide

Appendix A.5 Monitoring the status of JP1/AJS3

You can determine the operation status of JP1/AJS3 - Manager, execution status of jobs in jobnets, and operation status of JP1/AJS3 - Agent based on the color of JP1AJS2 symbols. In addition, you can obtain detailed information from the Alarms Browser and the ajsdetail window.

When the status of JP1/AJS3 - Manager or JP1/AJS3 - Agent changes, an SNMP trap reporting the status change is sent to NNM. Then, NNM displays the symbols in a color that corresponds to the reported status.

When JP1/AJS3 - Manager is monitoring the scheduler status, the monitoring process checks the jobnet every 5 minutes. Therefore, a job status change is applied to NNM symbols a maximum of 5 minutes later than the time at which the status was changed.

The status monitoring process of the scheduler is common to the physical and logical hosts. If at least one job in the Warning or Abnormal status exists on a host, regardless of whether the host is a physical host or logical host, the process assumes JP1/AJS3 - Manager to be abnormal and notifies NNM symbols of the abnormal status.

Even if you remove the cause of the status change that is reported to NNM while you are using JP1/AJS3 - Manager or JP1/AJS3 - Agent, the symbol indicating the operation status of JP1/AJS3 - Manager or JP1/AJS3 - Agent is not initialized to keep indicating the status of a higher severity level (for example, if an error occurs in JP1/AJS3 and the error is reported to NNM, the JP1AJS2 symbol of NNM remains displayed in the color indicating an error even if you remove the cause of the error). When this occurs, reset the symbol manually.

This section describes how to interpret the JP1AJS2 symbols shown in the node submap, how to read the messages shown in the Alarms Browser, and how to use detailed information shown in the ajsdetail window, as well as how to reset the status of the JP1AJS2 symbols.

Organization of this subsection

(1) Interpreting JP1AJS2 symbols shown in the node submap

(2) Reading messages in Alarms Browser

(3) Viewing detailed information in the ajsdetail window

(4) Resetting JP1AJS2 symbols

(1) Interpreting JP1AJS2 symbols shown in the node submap

The colors and meanings of JP1AJS2 symbols shown in the node submap vary depending on whether the status of JP1/AJS3 - Manager or JP1/AJS3 - Agent is monitored. Table A-9 shows symbol colors and their meanings when monitoring the status of JP1/AJS3 - Manager. Table A-10 shows symbol colors and their meanings when monitoring the status of JP1/AJS3 - Agent.

Table A-9 Colors and meanings of JP1AJS3 symbols when monitoring JP1/AJS3 - Manager

Color of symbol (default^#1) Meaning Severity^#2

Color indicating Unknown (Light blue) The status is unknown. 1

Color indicating a Normal range (Green) JP1/AJS3 - Manager is active. JP1/AJS3 - Manager is operating normally. 2

Color indicating a Warning range (Cyan) Some warning-end jobs exist. 3

Color indicating a Minor alert range (Yellow) Some abnormal-end jobs exist. 4

Color indicating a Restricted operation (Light pink)
Color indicating a Critical range (Red)

Execution of jobnets in schedule failed.

Job execution failed.

Operation based on an event job failed.

5

#1

The default symbol colors might differ depending on the NNM you are using.

#2

The highest severity is 5 and 1 is the lowest.

Table A-10 Colors and meanings of JP1AJS2 symbols when monitoring JP1/AJS3 - Agent

Color of symbol (default^#1) Meaning Severity^#2

Color indicating Unknown (Light blue) The status is unknown. 1

Color indicating a Normal range (Green) JP1/AJS3 - Agent is active. JP1/AJS3 - Agent is operating normally. 2

Color indicating a Restricted operation (Light pink)
Color indicating a Critical range (Red)

Job execution failed.

Operation based on an event job failed.

3

#1

The default symbol colors might differ depending on the NNM you are using.

#2

The highest severity is 3 and 1 is the lowest.

The color of a JP1AJS2 symbol indicates the most serious status among the following operation statuses of the JP1/AJS3 functions:

Schedule control of jobnets (except when monitoring the status of JP1/AJS3 - Agent)

Execution control of jobs

Operation control with event jobs

You can check the status of each function in the ajsdetail window. For further details, see (3) Viewing detailed information in the ajsdetail window.

Color of symbol (default^#1)	Meaning	Severity^#2
Color indicating Unknown (Light blue)	The status is unknown.	1
Color indicating a Normal range (Green)	JP1/AJS3 - Manager is active. JP1/AJS3 - Manager is operating normally.	2
Color indicating a Warning range (Cyan)	Some warning-end jobs exist.	3
Color indicating a Minor alert range (Yellow)	Some abnormal-end jobs exist.	4
Color indicating a Restricted operation (Light pink) Color indicating a Critical range (Red)	Execution of jobnets in schedule failed. Job execution failed. Operation based on an event job failed.	5

Color of symbol (default^#1)	Meaning	Severity^#2
Color indicating Unknown (Light blue)	The status is unknown.	1
Color indicating a Normal range (Green)	JP1/AJS3 - Agent is active. JP1/AJS3 - Agent is operating normally.	2
Color indicating a Restricted operation (Light pink) Color indicating a Critical range (Red)	Job execution failed. Operation based on an event job failed.	3

(2) Reading messages in Alarms Browser

When NNM receives an SNMP trap from JP1/AJS3 - Manager or JP1/AJS3 - Agent, it displays detailed information regarding the following statuses in the Alarms Browser:

Operation status of JP1/AJS3 - Manager

Execution status of jobs in jobnets of JP1/AJS3 - Manager

Status of scheduler service of JP1/AJS3 - Manager

Execution status of event job-based operation control of JP1/AJS3 - Manager

Operation status of JP1/AJS3 - Agent

Execution status of event job-based operation control of JP1/AJS3 - Agent

The following describes how to display the Alarms Browser as well as two kinds of message formats and message meanings shown in the Alarms Browser.

How to display the Status Alarms Browser
In NNM's Alarm Categories, click the Status Alarms button.

Message format 1
"object-name" Status change to "status". ("Status-change-factor-code")

object-name

Indicates the name of the object.

status and status-change-factor-code

See the following table for the status and status change factor code combinations:

Table A-11 Status and status change factor code combinations

Status Status change factor code Meaning

Normal Factor:Start JP1/AJS3 started operating.^#1

Normal Factor:Schedule Normal The scheduling function is operating normally.^#2

Warning Factor:Job Warning End Some warning-end jobs exist.^#2

Minor Factor:Job Abnormal End Some abnormal-end jobs exist.^#2

Restricted Factor:Schedule Restricted Restricted operation by the scheduling function.^#2

Restricted Factor:jpqmon^#4 The job execution control stopped.^#1

Restricted Factor:evactiona^#3 Operation with event jobs (agent control) stopped.^#1

Restricted Factor:jajs_dbmd Database management stopped.^#¹

Restricted Factor:jajs_hstd Host service management stopped.^#¹

Restricted Factor:jajs_agtd Scheduler service management stopped.^#¹

Restricted Factor:jajs_schd Agent service management stopped.^#¹

Restricted Factor:queuea^#3 Job execution control stopped.^#¹

Restricted Factor:jpoagent^#4 Operation with event jobs (agent control) stopped.^#1

Restricted Factor:Event Reception of a JP1 event failed.^#5

Restricted Factor:File Monitoring of a file failed.^#5

Restricted Factor:Mail Reception of mail failed.^#5

Restricted Factor:Time Control of the execution interval failed.^#5

Unknown Factor:Schedule Unknown The status of the scheduling function is unknown.^#2

Critical Factor:Schedule Stop The scheduling function stopped.^#2

Critical Factor:Stop JP1/AJS3 stopped operating.^#1

#1

Process Manager (process management control of JP1/AJS3) sends the SNMP trap.

#2

Job Schedule (schedule control of jobnets) sends SNMP trap.

#3

Event Action (operation control with event jobs) sends SNMP trap.

#4

This is the status change factor code in messages displayed for NNM in UNIX.

#5

This is the status change factor code in messages displayed for NNM in Windows.

How to display the Error Alarms Browser
In NNM's Alarm Categories, click the Error Alarms button.

Message format 2
"object-name" Jobnet terminates abnormally. ("scheduler-service-name":"jobnet-name")

scheduler-service-name

Indicates the scheduler service name to which the root jobnet that ended abnormally belongs.

jobnet-name

Indicates the root jobnet name that ended abnormally.

You can also obtain details on a message shown in the Alarms Browser by double-clicking the event in the Event setup dialog box in NNM to display the Event change dialog box. However, do not change the settings for the event.

Status	Status change factor code	Meaning
Normal	Factor:Start	JP1/AJS3 started operating.^#1
Normal	Factor:Schedule Normal	The scheduling function is operating normally.^#2
Warning	Factor:Job Warning End	Some warning-end jobs exist.^#2
Minor	Factor:Job Abnormal End	Some abnormal-end jobs exist.^#2
Restricted	Factor:Schedule Restricted	Restricted operation by the scheduling function.^#2
Restricted	Factor:jpqmon^#4	The job execution control stopped.^#1
Restricted	Factor:evactiona^#3	Operation with event jobs (agent control) stopped.^#1
Restricted	Factor:jajs_dbmd	Database management stopped.^#¹
Restricted	Factor:jajs_hstd	Host service management stopped.^#¹
Restricted	Factor:jajs_agtd	Scheduler service management stopped.^#¹
Restricted	Factor:jajs_schd	Agent service management stopped.^#¹
Restricted	Factor:queuea^#3	Job execution control stopped.^#¹
Restricted	Factor:jpoagent^#4	Operation with event jobs (agent control) stopped.^#1
Restricted	Factor:Event	Reception of a JP1 event failed.^#5
Restricted	Factor:File	Monitoring of a file failed.^#5
Restricted	Factor:Mail	Reception of mail failed.^#5
Restricted	Factor:Time	Control of the execution interval failed.^#5
Unknown	Factor:Schedule Unknown	The status of the scheduling function is unknown.^#2
Critical	Factor:Schedule Stop	The scheduling function stopped.^#2
Critical	Factor:Stop	JP1/AJS3 stopped operating.^#1

(3) Viewing detailed information in the ajsdetail window

When NNM receives an SNMP trap from JP1/AJS3 - Manager or JP1/AJS3 - Agent, it displays detailed information regarding the operation status of JP1/AJS3 - Manager, execution status of jobs in jobnets, or operation status of JP1/AJS3 - Agent in the ajsdetail window.

The following describes how to display the ajsdetail window and the meaning of the items displayed in the window.

To display the ajsdetail window:

Click the JP1AJS2 symbol about which you want to display detailed information, and then choose Administer, JP1/AJS2 Manager, and View Detail.
The ajsdetail window appears.
See the following figure:

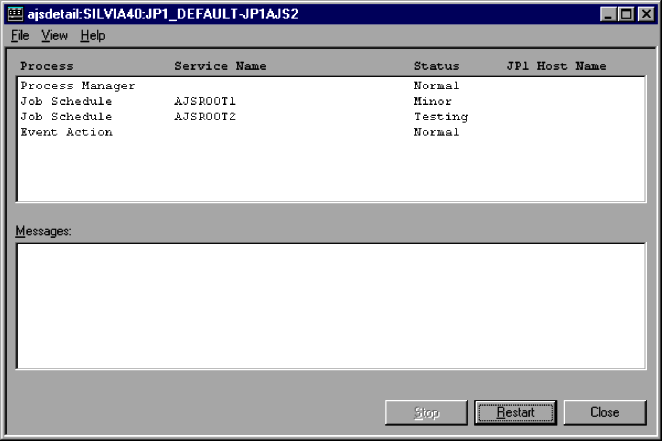

Figure A-7 ajsdetail window

Meaning of the items displayed in the ajsdetail window

Title line

Indicates the object name.

Process

Displays the names of the JP1/AJS3 functions.

Process Manager
Process management control of JP1/AJS3

Job Schedule
Schedule control of jobnets.
Displayed in units of scheduler services.
This function does not work while the status of JP1/AJS3 - Agent is being monitored.

Event Action
Operation control with event jobs

Service Name

Displays the names of scheduler services.

Status

Indicates the status of each function. For details, see (1) Interpreting JP1AJS2 symbols shown in the node submap.

JP1 Host Name

Displays the appropriate logical host name when multiple logical hosts are activated.

Message

Nothing displayed.

Cautionary notes

When the scheduler service configuration is changed, the status before the change remains in the JP1AJS2 symbol objects. If the status of the scheduler service whose configuration was changed is not correctly reflected in the ajsdetail window, enable the new configuration.

To enable the new configuration:

Use the ajsovsymrem command to delete, in one operation, the JP1AJS2 symbols from the node submap.
For details on the ajsovsymrem command, see C.3 ajsovsymrem.

Restart the JP1/AJS3 service.

Re-create the JP1AJS2 symbols by the method creating symbols for all hosts.
For details, see subsection A.4(1) Creating symbols.

(4) Resetting JP1AJS2 symbols

If, after JP1/AJS3 - Manager or JP1/AJS3 - Agent has reported an operation status to NNM, you remove the factor of the status change, reset the JP1AJS2 symbol. Usually, you must reset it to the Normal. However, if you are not sure about the operation status or execution status of jobs, reset it to Unknown.

To reset the JP1AJS2 symbol:

Click the JP1AJS2 symbol that you want to reset. Then, choose Administer, JP1/AJS2 Manager, Initial symbol and Normal or Unknown.
The JP1AJS2 symbol is reset to a Normal or an Unknown status.
