Job Management Partner 1/Automatic Job Management System 3 Linkage Guide
To define and execute a custom job for a SAP R/3 or SAP BW system, you need JP1/AJS3 for Enterprise Applications on the host where you define and execute the custom job. In addition, to define a custom job using JP1/AJS3 - View, you have to copy the definition program for JP1/AJS3, which is provided by JP1/AJS3 for Enterprise Applications, to the JP1/AJS3 - View host.

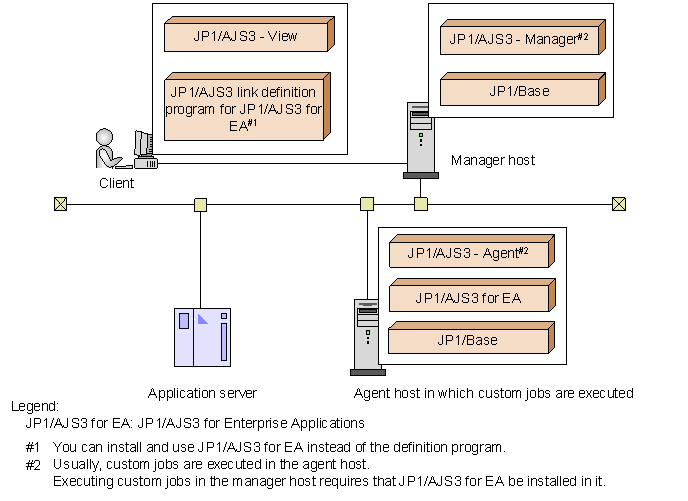

The following figure shows an example of a system configuration for linking a SAP R/3 system.
Figure 5-1 Example of a system configuration for linking a SAP R/3 system

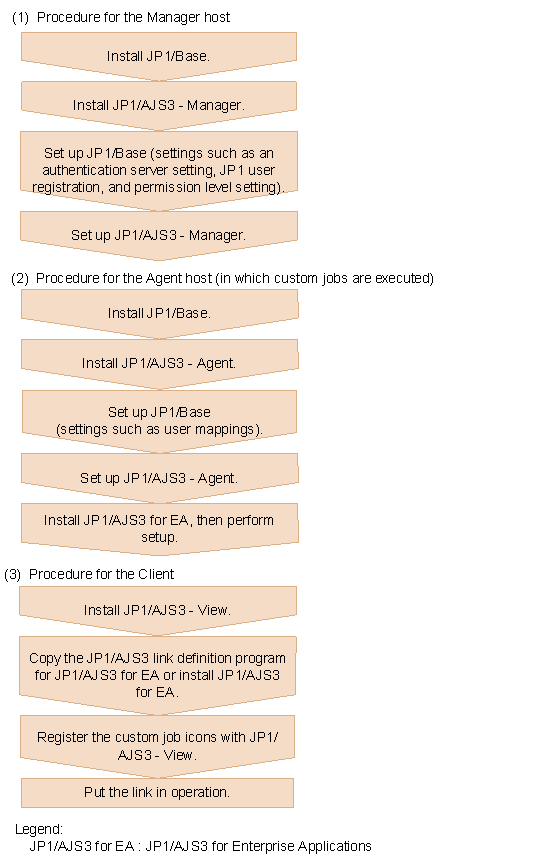

The figure below shows the setup procedure for linking a SAP R/3 system.
Figure 5-2 Setup procedure for linking a SAP R/3 system
For details on how to register custom job icons, see 3.2 Registering default custom jobs.
