4.2 Setup for linking JP1/FTP

To define and execute JP1/FTP custom jobs, you must install JP1/FTP on the host where you execute the custom jobs. In addition, to define custom jobs using JP1/AJS3 - View, you have to copy the definition program for JP1/AJS3, which JP1/FTP provides, to the JP1/AJS3 - View host.

The following figure shows an example of a system configuration for linking JP1/FTP.

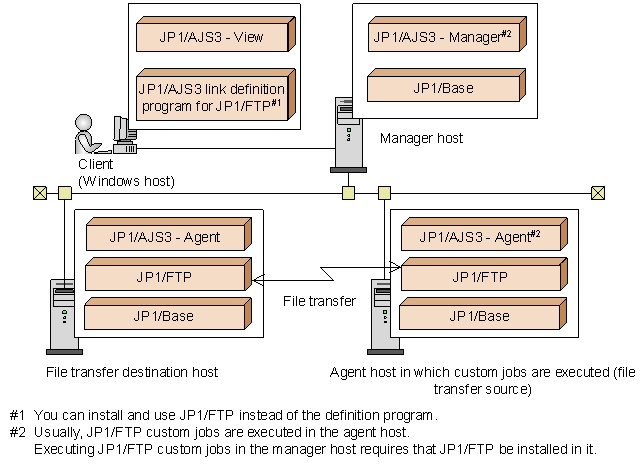

Figure 4-1 Example of a system configuration for linking JP1/FTP

Commands for operating units while using the automatic startup program registration function of JP1/FTP for UNIX require you to start the JP1/FTP daemon by specifying the following environment variables.

JP1FTS_AUTO_UID_OPTION=TRUE

JP1FTS_AUTO_STDIO=standard-I/O-file-name and standard-error-output-file-name

The following example shows how to enter these variables:

# JP1FTS_AUTO_UID_OPTION=TRUE
# JP1FTS_AUTO_STDIO=/dev/null
# export JP1FTS_AUTO_UID_OPTION JP1FTS_AUTO_STDIO
# jftsd

The figure below shows the setup procedure for linking JP1/FTP.

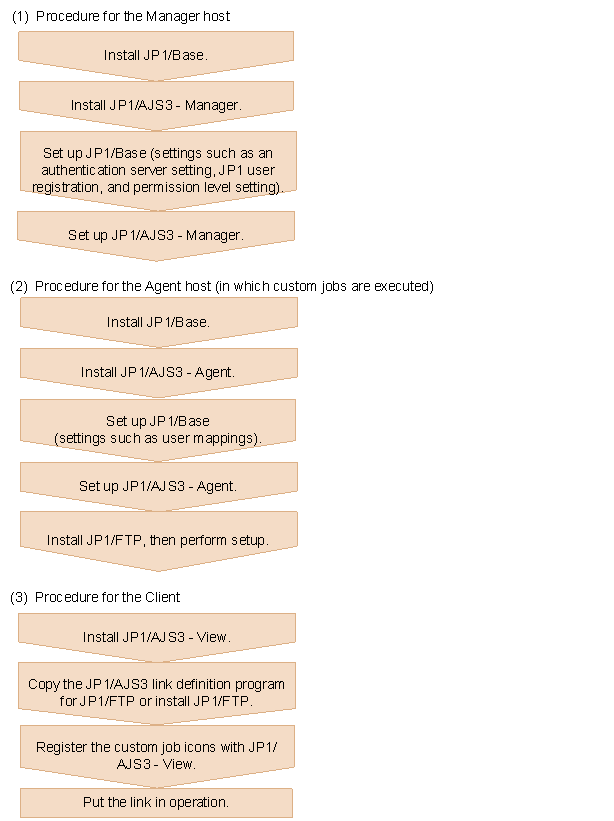

Figure 4-2 Setup procedure for linking JP1/FTP

For details on how to register custom job icons, see 3.2 Registering default custom jobs.
