Job Management Partner 1/Automatic Job Management System 3 Command Reference 2
This subsection gives an example of a schedule information parameter to define a schedule for a jobnet which meets the conditions below.

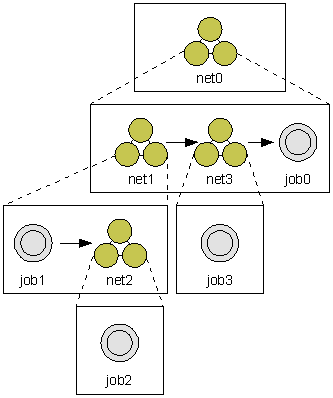

The following shows the configuration of the units.
The following table covers schedules to be defined.
Unit Execution start time Hold attribute for execution net0 20XX/12/1 12:00 Hold net1 20XX/12/1 12:00 Not hold job1 Execute Not hold net2 20XX/12/1 14:00 Not hold job2 Execute Not hold net3 20XX/12/1 13:00 Hold job3 Not execute N/A job0 Execute Not hold
- Legend:
- N/A: Not applicable

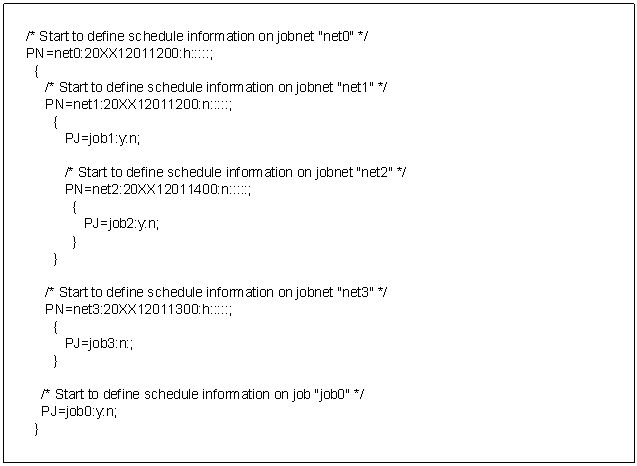

The following gives an example of description.
