Job Management Partner 1/Automatic Job Management System 3 Command Reference 1

ajsshow

Format

ajsshow
     [-F service-name]
     [{-s|-p|-l|-r|-f "format-indicator"|
          -i "two-byte-format-indicator"}]
     [-t "format-indicator"]
     [-k]
     [-g {number-of-generations|a}
         |-b year/month[/day] [-e year/month[/day]]
         |-v year/month[/day] [-w year/month[/day]]
         |-B execution-registration-number]
     [-u user-name]
     [-c]
     [-R]
     [-E]
     [-T]
     [-N|-J]
     [-d [[year/]month/]day]
     [-h hours[:minutes]]
     [-X {yes|no|auto}]
     job-name-or-jobnet-name-or-job-group-name...

Description

Outputs the results of the past execution, the current status, the next execution schedule, and other information on a jobnet or job already registered for execution to the standard output file. (For details about the output format, see Additional information 1 later.)

Execution privileges

You must have any of the following JP1 privileges:

• JP1_AJS_Admin privilege
• JP1_AJS_Manager privilege
• JP1_AJS_Editor privilege
• JP1_AJS_Operator privilege
• JP1_AJS_Guest privilege

Arguments

-F service-name

Specify the name of the target scheduler service.

You can specify a character string of 1 to 30 bytes.

-s

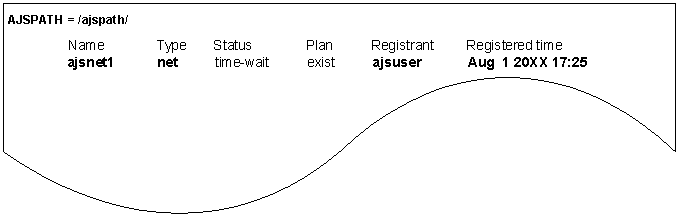

Outputs execution registration information scheduled to be performed in the specified jobnet in the next cycle.

If there is nothing scheduled for subsequent execution, the option outputs the execution registration information for the jobnet that was executed in the previous cycle or is currently being executed.

Note that for a jobnet that has been registered for planned execution, if the next execution is not scheduled, a non-scheduled generation is generated for the next execution. Therefore, if you specify this option when the next execution is not scheduled, Not sched. to exe. is output as the status.

When you use the function that automatically selects a unit being operated, select a jobnet scheduled to be executed in the next cycle from those in the root jobnet under the planning group, and output the execution registration information. If there is nothing scheduled for subsequent execution, the option selects the jobnet that was executed in the previous cycle or is currently being executed and outputs the execution registration information.

You cannot specify this option for a job.

You cannot specify this option with the -p, -l, -r, -f, -i, -g, -b, -e, -v, -w, -B, or -J option.

You cannot specify this option if you specify the execution ID for a job, jobnet, or job group name.

-p

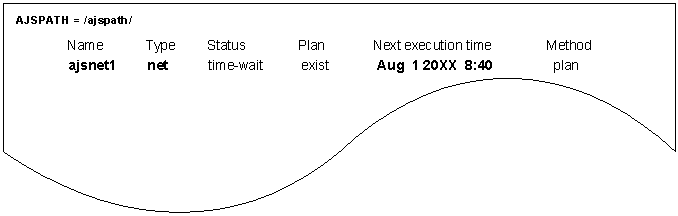

Outputs information on the next execution schedule of a specified jobnet.

If you are using the function for automatically selecting a target unit, the command outputs information on the next execution schedule of the jobnet scheduled to be executed next under the root jobnets in a planning group.

You cannot specify this option for a job.

You cannot specify this option with the -s, -l, -r, -f, -i, -g, -b, -e, -v, -w, -B, or -J option.

You cannot specify this option if you specify the execution ID for a job, jobnet, or job group name.

-l

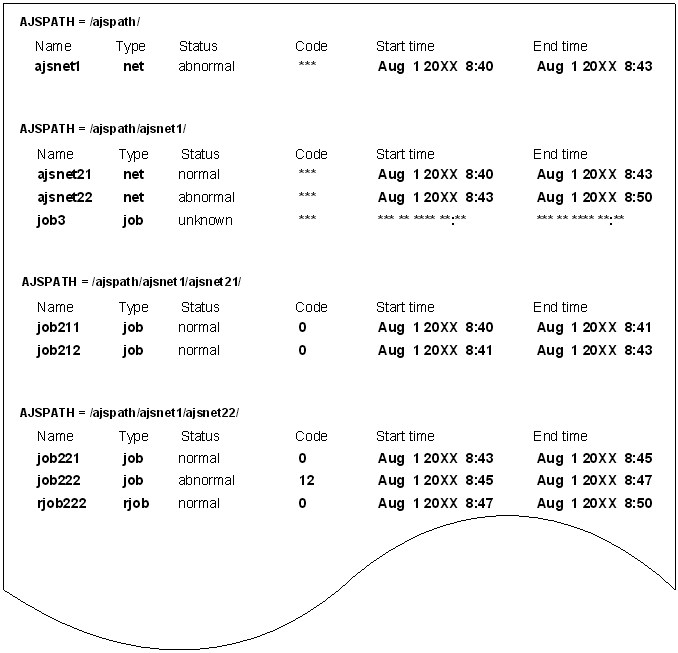

Outputs execution result information on a specified jobnet, and jobs and jobnets in it.

If you are using the function for automatically selecting a target unit, the command outputs result information for the jobnets or jobs that belong to as many generations as the number specified with the -g option, starting from generation number 1, under the root jobnets in a planning group.

You cannot specify this option with the -s, -p, -r, -f, -i, -b, -e, -v, -w, or -B option.

You cannot specify this option if you specify the execution ID for a job, jobnet, or job group name.

-r

Outputs the standard error output file name for a specified job.

If the specified job does not send information to the standard error output, the default standard error output file name is output.

You cannot specify this option with the -s, -p, -l, -f, -i, -T, or -N option.

-f "format-indicator"

Outputs the information specified by the format indicator for a specified jobnet or job.

Specify the format indicator by % followed by an alphabetic character of one byte. For details about the format indicator, see Additional information 1 later.

Characters are output as specified, except for the format indicator enclosed in double quotation marks (").

-i "two-byte-format-indicator"

Outputs the information specified by the format indicator for a specified jobnet or job.

Specify the format indicator by % followed by an alphabetic character of two bytes. For details about the format indicator, see Additional information 1 later.

Characters are output as specified, except for the format indicator enclosed in double quotation marks (").

-t "format-indicator"

Outputs the information specified by the format indicator to the title row.

Specify the format indicator by % followed by an alphabetic character of one byte. For details about the format indicator, see Additional information 1 later.

Characters are output as specified, except for the format indicator enclosed in double quotation marks (").

You must specify this option with the -f or -i option. Specify this option with the -f option. If you specify it with the -s, -p, -l, or -k option, it is disabled.

-k

Does not output the title row.

When you specify this option with the -s, -p, or -l option, only the AJSPATH= row is output.

-g {number-of-generations|a}

Outputs execution result information in descending order from the latest generation to the specified generation.

The default is 1. However, even when you specify 1 for number-of-generations, if generation number 1 does not exist, 0 is assumed as the number of generations.

If you are using the function for automatically selecting a target unit, the command outputs information about the jobnets or jobs that belong to as many generations as the specified number, starting from generation number 1 or 0, under the root jobnets in a planning group.

You cannot specify this option with the -s, -p, -b, -e, -v, -w, or -B option.

• number-of-generations

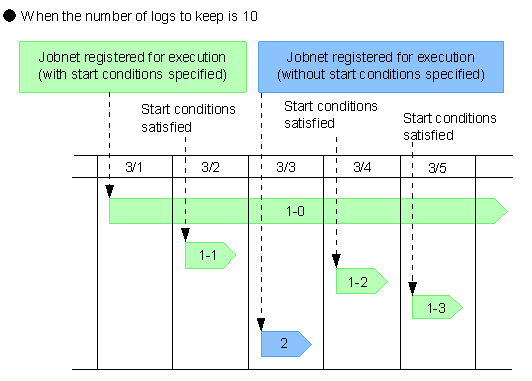

  You can specify 0 to 99 generations. You can, however, enable the system setting option to expand the number of generations up to 999.
  If you set 0, the system outputs information on the jobnets not executed and jobnets being held (in this case, you cannot specify this option with the -l option).
  Even though a nest jobnet is not executed or is being held, the number of generations is assumed to be 1 if its root jobnet is being executed.
  If the number of generations is other than 0, the generation number is output to the title row when you specify the -l option.

• a
  Outputs execution result information on all the generations.


When you execute this command for a unit that has never been executed, the results of generation 0 are output. When you execute this command for a unit that has already been executed, the results of generation 1 or greater are output.

-b year/month[/day]

Specify the start date of the period of information output as a calendar date.

The start time is the base time.

If you are using the function for automatically selecting a target unit, the command outputs information about the units having result or schedule information for the specified period under the jobnets in a planning group.

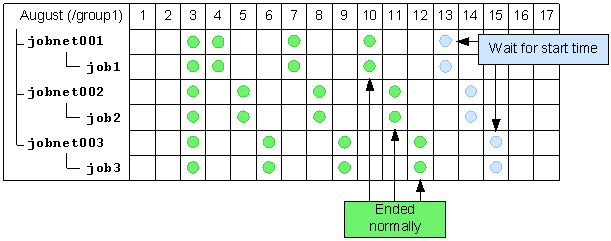

If the schedule or the result of the specified unit exists in the period specified by the -b or -e option, the information is output.

If the schedule or the result of the specified unit does not exist in the period specified by the -b or -e option, the information is not output.

See the examples shown below.

Specify this option with the -f or -i option and the -e option. You cannot specify it with the -s, -p, -l, -g, -v, -w, or -B option.

• year
  You can specify a value between 1994 and 2036 for the year.

• month
  You can specify a value between 1 (or 01) and 12.

• day
  You can specify a value between 1 (or 01) and 31. If you omit this option, the system assumes the base date for the specified year and month.


-e year/month[/day]

Specify the end date of the period of information output as a calendar date.

For the end date, specify a date the same as or following the start date.

If you omit this option, the system assumes the date specified with the -b option.

The end time is the base time plus 23 hours: 59 minutes: 59 seconds.

Specify this option with the -f or -i option and the -b option. You cannot specify it with the -s, -p, -l, -g, -v, -w, or -B option.

• year
  You can specify a value between 1994 and 2036 for the year.

• month
  You can specify a value between 1 (or 01) and 12.

• day
  You can specify a value between 1 (or 01) and 31. If you omit this option, the system assumes the base date for the specified year and month. (For example, if you set the base date to 20, the system assumes 19 as the end date.)


-v year/month[/day]

Specify the start date of the period of information output as an execution date.

The start time is the base time.

If you are using the function for automatically selecting a target unit, the command outputs information about the units having result or schedule information for the specified period under the jobnets in a planning group.

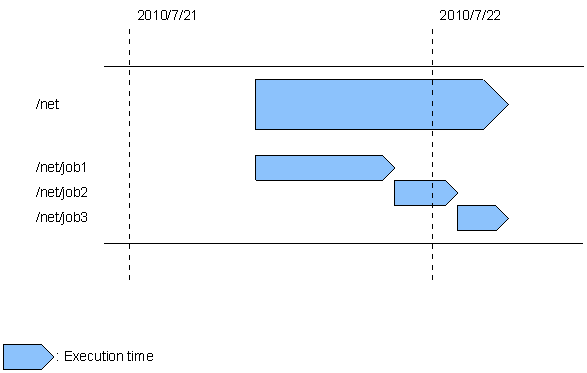

If the schedule or the result of the root jobnet which contains the specified unit exists in the period specified by the -v or -w option, the information about the specified unit is output.

If schedules or results exist in the root jobnet which contains the specified unit in the period specified by the -v or -w option, even if the schedule or the result of the specified unit does not exist in the period specified by the -v or -w option, the information about all the items under the specified unit (including unplanned units) is output.

See the examples shown below.

Specify this option with the -f or -i option and the -w option. You cannot specify it with the -s, -p, -l , -g, -b, -e, or -B option.

• year
  You can specify a value between 1994 and 2036 for the year.

• month
  You can specify a value between 1 (or 01) and 12.

• day
  You can specify a value between 1 (or 01) and 31. If you omit this option, the system assumes the base date for the specified year and month.


-w year/month[/day]

Specify the end date of the period of information output as an execution date.

For the end date, specify a date the same as or following the start date.

If you omit this option, the system assumes the date specified with the -v option.

The end time is the base time plus 23 hours: 59 minutes: 59 seconds.

Specify this option with the -f or -i option and the -v option. You cannot specify it with the -s, -p, -l , -g, -b, -e, or -B option.

• year
  You can specify a value between 1994 and 2036.

• month
  You can specify a value between 1 (or 01) and 12.

• day
  You can specify a value between 1 (or 01) and 31. If you omit this option, the system assumes the base date for the specified year and month. (For example, if you set the base date to 20, the system assumes 19 as the end date.)


-B execution-registration-number

Specify the execution registration number of the jobnet whose information you want to display in the YYYYMMDDNNN format. The following gives the contents of YYYYMMDDNNN.

YYYY: Year of the date of execution

MM: Month of the date of execution

DD: Day of the date of execution

NNN: Execution registration sequence number for the date of execution

For details about the execution registration number, see 4.5.13 Methods of specifying generations when executing commands in the manual Job Management Partner 1/Automatic Job Management System 3 Overview.

If you are using the function for automatically selecting a target unit, the command outputs information about the units having an execution registration number under the jobnets in a planning group.

You cannot specify this option with the -s, -p, -l, -g, -b, -e, -v, or -w option. Specify this option together with the -f, -i, or -r option.

-u user-name

To output information on a jobnet registered by a specified user, specify the user name.

You can specify a character string of 1 to 31 bytes.

-c

Obtains information for the specified jobnet or job, and then outputs it in the high-speed mode.

You cannot obtain information about a job or jobnet that is added while it is suspended.

Format indicators %B, %b, %O, and %o are displayed in the ****/**/** **:**:** or ****/**/** **:** format.

Format indicator %a is displayed in the 00:00:00 format.

Specify this option with the -f, -i, or -r option.

You cannot specify this option with the -s, -p, -l, -b, -e, -v, -w, or -R option. However, you can specify this option with the -R option if you also specify the -T option.

-R

Outputs information on all the jobnets or jobs contained in a specified unit.

If you specify this option with the -E, -T, -N, and/or -J options, the system outputs information on the jobnets or jobs according to the specification of each option.

-E

Outputs information on a jobnet already registered for execution.

-T

Outputs information on the root jobnet.

You cannot specify this option with the -r or -J option.

-N

Outputs information on a jobnet.

You cannot specify this option with the -r or -J option.

-J

Outputs information on a job.

You cannot specify this option with the -s, -p, -T, or -N option.

-d [[year/]month/]day

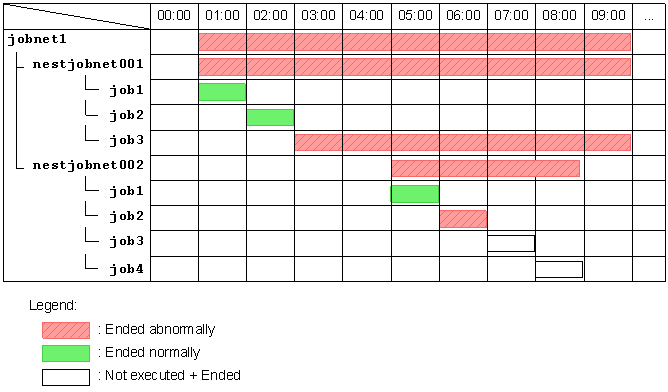

Specify the starting date for re-executing the root jobnet. Use this option when you specify the 2-byte format indicator %ab or %an for the -i option to obtain the estimated required time.

• year
  You can specify a value between 1994 and 2036.

• month
  You can specify a value between 1 (or 01) and 12.

• day
  You can specify a value between 1 (or 01) and 31.


If you omit the specification of the year or both the year and month for this option, the system assumes the following values:

year: The year when the command was executed

year/month: The year and month in which you executed the command

By default, the system assumes the date on which you execute the command.

This option is invalid if you do not specify the 2-byte format indicator %ab or %an for the -i option.

You cannot specify this option with the -s, -p, -l, -r, -f, -g, -B, or -c option.

You must specify this option with the -i option and either the -b or -v option.

-h hours[:minutes]

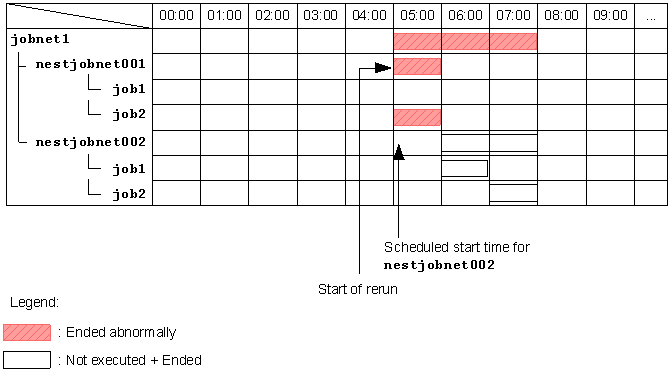

Specify the starting time for re-executing the root jobnet. Use this option when you specify the 2-byte format indicator %ab or %an for the -i option to obtain the estimated required time.

• hours
  You can specify a value between 0 (or 00) and 24.

• minutes
  You can specify a value between 0 (or 00) and 59. If you do not specify a value, 0 is assumed.


By default, the system assumes the time at which you execute the command.

This option is invalid if you do not specify the 2-byte format indicator %ab or %an for the -i option.

You cannot specify this option with the -s, -p, -l, -r, -f, -g, -B, or -c option.

You must specify this option with the -i option and either the -b or -v option.

-X {yes|no|auto}

Specify whether to automatically select the current unit for operation from the units listed in a planning group. The units in the job group are not, however, automatically selected regardless of the specified value. You cannot omit a root jobnet name.

• yes
  Specify this to automatically select a target unit.
  When specifying a unit name in the command, omit a root jobnet name in a planning group.

• no
  Specify this if you do not want to automatically select a target unit.
  You must specify a unit for which the command will operate. You cannot omit a root jobnet name in a planning group.

• auto
  Whether a target unit will automatically be selected depends on how the unit name is specified.

  • If you want to automatically select a target unit
    Specify a unit name without a root jobnet name in a planning group.

  • If you do not want to automatically select a target unit
    Specify a unit name with a root jobnet name in a planning group. The command will operate for the specified unit only. However, if there is a unit having the same name as the path name specified without a root jobnet name in a planning group, a root jobnet name is assumed to be omitted so that a target unit will be selected automatically.


job-name-or-jobnet-name-or-job-group-name

Specify the name of the job or jobnet whose information you want to output. You can also specify a job, jobnet, or job group name with the -R, -E, -T, -N, or -J option.

You can specify a character string of 1 to 930 bytes.

You can specify more than one job, jobnet, or job group name. You cannot specify a manager job group name or manager jobnet name.

You can specify a logical host name or execution ID as a job, jobnet or job group name. If you specify an execution ID, however, the -g, -b, -e, -v, -w, and -B options are disabled.

To specify an execution ID as a job, jobnet or job group name, also specify the -f, -i, or -r option. You cannot specify the execution ID with the -s, -p, or -l (default) option. For details about how to specify the execution ID, see 1.1 Command syntax.

Notes

• Users can output information if they are assigned the reference, manipulation, or update privileges when jobnet or job is defined or its attributes are changed. However, a user logged on as a member of the Administrators group in Windows systems), or having superuser privileges (in UNIX systems) can output information.
• The period of information output can be specified through a combination of the -b and -e options or the -v and -w options. Such different combinations give different output results. For details, see Example 5.
• If you use the -b, -e, -v, or -w option to set the period of information output, the information is output in ascending order starting from the oldest generation.
• Information about a unit added to a suspended root jobnet is not output until the root jobnet is released from suspension. After the root jobnet is released from suspension, simulated results are output. Therefore, the results output when the root jobnet is suspended are different from the results output after the root jobnet is released from suspension.
• You may specify multiple units with the -c option and the -g option that specifies the number of generations. In this case, the system outputs execution result information on each jobnet or job in descending order from the latest generation to the specified generation.
• When you specify that a target unit automatically be selected from the units in a planning group, an error occurs if you do not have the appropriate operation privilege for the automatically selected unit.
• When the -X option is omitted, a target unit in a planning group is determined according to the value specified for the AJSAUTOJUDGE environment variable.
• For an explanation of how to specify the name of a unit in a planning group, see Additional informations in ajsplan in 2. Commands.
• If you specify none of the -s, -p, -r, -f, and -i options, the -l option is assumed.
• If you specify the -l, -r, -f, or -i option without specifying the -g, -b, -e, -v, -w, or -B option or execution ID, the system assumes -g 1.
• If you specify the -b, -e, -v, or -w option, a schedule simulation and an execution simulation are performed. When you specify -g (default), -B, or an execution ID, no simulation is performed. For details about simulations, see 4.4.2 Simulation in the manual Job Management Partner 1/Automatic Job Management System 3 Overview.

Return values

0	Normal end
Multiple of 4 within the range from 4 to 124	Abnormal end

Additional information 1

Table 2-15 lists the format indicators to output jobnet and job definitions.

Table 2-16 lists the two-byte format indicators to output jobnet and job definitions.

Table 2-17 lists the other format indicators.

Table 2-18 provides the output formats of the format indicators.

Table 2-15 Format indicators for jobnet and job output.

Format indicator	Output information	-f	-t
%J	Jobnet or job full-path name	Yes	Yes
%j	Jobnet or job name Character string of up to 30 bytes	Yes	Yes
%A	Character string specified for AJSPATH= Character string specified with %J except the part that follows the right-most slash (/)	Yes	Yes
%T	Unit type mgroup: Manager job group group: Job group mnet: Manager jobnet condn: Start condition (.CONDITION) net: Jobnet rnet: Jobnet for recovery rmnet: Remote jobnet rrnet: Remote jobnet for recovery job: UNIX job rjob: UNIX job for recovery pjob: PC job rpjob: PC job for recovery qjob: QUEUE job rqjob: QUEUE job for recovery jdjob: Judgment job rjdjob: Judgment job for recovery orjob: OR job rorjob: OR job for recovery cmsjb: OpenView status report job rcmsjb: OpenView status report job for recovery evwjb: JP1 event reception monitoring job revwjb: JP1 event reception monitoring job for recovery flwjb: File monitoring job rflwjb: File monitoring job for recovery mlwjb: Email reception monitoring job rmlwjb: Email reception monitoring job for recovery mqwjb: Message queue reception monitoring job rmqwjb: Message queue reception monitoring job for recovery mswjb: MSMQ reception monitoring job rmswjb: MSMQ reception monitoring job for recovery lfwjb: Log file monitoring job rlfwjb: Log file monitoring job for recovery ntwjb: Windows event-log monitoring job rntwjb: Windows event-log monitoring job for recovery tmwjb: Execution interval control job rtmwjb: Execution interval control job for recovery evsjb: JP1 event sending job revsjb: JP1 event sending job for recovery mlsjb: Email sending job rmlsjb: Email sending job for recovery mqsjb: Message queue sending job rmqsjb: Message queue sending job for recovery mssjb: MSMQ sending job rmssjb: MSMQ sending job for recovery pwljb: Local power control job rpwljb: Local power control job for recovery pwrjb: Remote power control job rpwrjb: Remote power control job for recovery cuujb: Custom UNIX job rcuujb: Custom UNIX job for recovery cupjb: Custom PC job rcupjb: Custom PC job for recovery netcn: Jobne connector	Yes	Yes
%C	Jobnet or job status	Yes#10	--
%U	User name of a jobnet registered for execution Character string of up to 31 bytes	Yes#9	--
%D	Time when the jobnet was registered for execution#7	Yes#9	--
%L	Number of jobnet nests with respect to the root jobnet as 0	Yes#9	Yes
%p#3	Whether the next execution is scheduled exist none	Yes#27	--
%P#3	Date and time of the next execution schedule#7	Yes#1	--
%M#3	Next execution method schedule plan shift	Yes#1	--
%R	Return value or signal code *** if there is no return value or signal code	Yes#2	--
%S	Date and time when jobnet execution is started or when a job is submitted#7	Yes#12	--
%s	Date and time when jobnet execution is started or when a job is submitted#7	Yes#12	--
%K	Date and time when jobnet re-execution is started#7	Yes#1, #15	--
%k	Date and time when jobnet re-execution is started#7	Yes#1, #15	--
%E	Date and time when jobnet or job execution is ended#7	Yes	--
%e	Date and time when jobnet or job execution is ended#7	Yes	--
%V	Date and time when jobnet or job execution is started in another host#7	Yes#2	--
%Q	Date and time when jobnet or job execution was ended in another host#7	Yes#2	--
%W	$LANG value	Yes#9	Yes
%Z	$TZ value	Yes#9	Yes
%G	Generation number#8 (0 or less for scheduled generations) (1 or greater for generations being executed or execution result generations)	Yes#8	Yes
%N	Priority of execution#24 A value of 1 to 5	Yes	--
%H	Agent host name	Yes#2	--
%I	Job number	Yes#2, #17	--
%Y	The number of executions of jobnets or jobs that ended normally after the registration for execution#13	Yes	--
%B	Scheduled execution start date and time obtained from a computed processing cycle#7	Yes#4, #18, #22	--
%b	Scheduled execution start date and time obtained from a computed processing cycle#7	Yes#4, #19	--
%a	Estimated time required for execution#7	Yes#5, #16, #22	--
%O	Scheduled execution end date and time obtained from a computed processing cycle#7	Yes#4, #14, #20, #22	--
%o	Scheduled execution end date and time obtained from a computed processing cycle#7	Yes#4, #14, #21, #22	--
%v	Start time of the period that schedule and result information is output#7	Yes#6	Yes#6
%w	End time of the period that schedule and result information is output#7	Yes#6	Yes#6
%F	Hold attribute of the next execution schedule#26 yes no Before Abnormal End Before Warning End	Yes	--
%i	Type of registration for execution immediate definit planned simulation	Yes#9	--
%l	Execution registration number#7	Yes#8	--
%r	Standard error output file name If the standard error output file does not exist, the default standard error output file name is output. The standard error output file will not exist when, for example, no jobs have been executed or no errors have occurred. Output example: /var/opt/jp1ajs2/jobinf/7.14a.0.8.err	Yes #8, #23	--
%d	Delay status none start-delay nest-start-delay end-delay nest-end-delay	Yes#25	--
%#	execution-ID	Yes#8	--
%m	Time at which start conditions are effective unlimited#7	Yes#11	--
%q	Number of times by which start conditions are effective A decimal value unlimited	Yes#11	--

Legend:

Yes: Format indicators specifiable in the -f or -t option

--: Format indicators not specifiable in the -f or -t option

#1

Valid only for a unit type of net. In the other cases, an asterisk (*) is output.

#2

Valid only for a unit type of job. In the other cases, an asterisk (*) is output.

#3

Information about a jobnet having a generation number of 0.

#4

****/**/** **:** and ****/**/** **:**:** are output if you also specify the -g option.

#5

For a jobnet and job not executed, a value of 1 is assumed.

#6

****/**/** **:**:** is output if you do not specify the -b -e, -v, or -w option.

#7

For details about the output format, see Table 2-18

#8

For simulation, three asterisks (***) are output.

#9

Effective only when the unit type is net. Otherwise, three asterisks (***) are output.

#10

For a unit that is added while it is suspended, its output reads "plan unexecuted" if the existing upper-level unit is completed. Otherwise, the output reads "unplanned".

#11

Effective only when the unit type is net or condn. Otherwise, three asterisks (***) are output.

#12

For a job, the submitted time is output. For a queueless job, the time when the execution of the job was requested is output.

#13

The total count after registration is output, regardless of the number of logs to keep or generations to be output.

#14

The sum of the values of Scheduled execution start date and time obtained from a computed processing cycle and Estimated time required for execution is output as the time.

#15

The start time at which the unit was re-executed is displayed.

When the unit is re-executed, the date/time re-execution started is set at the point re-execution of the upper-level jobnets started. If the root jobnet is being executed, however, the date/time of re-execution start is not set for the root jobnet.

When the root jobnet has been completed, the date/time re-execution started is set only for the root jobnet if the root jobnet is specified at the point re-execution started.

#16

Output when -b, -e, -v, -w, -B, or an execution ID is specified.

In other cases, 00:00:00 is output.

#17

For a queueless job, three asterisks (***) are output.

#18

For a jobnet or job that has been completed, the date/time that is output here is the same as the actual date/time execution started for the jobnet or job (%St).

#19

For a jobnet or job that has been completed, the date/time that is output here is the same as the actual date/time execution started for the jobnet or job (%st).

#20

For a jobnet or job that has been completed, the date/time that is output here is the same as the actual date/time execution was completed for the jobnet or job (%E).

#21

For a jobnet or job that has been completed, the date/time that is output here is the same as the actual date/time execution was completed for the jobnet or job (%e).

#22

A result of execution simulation is output. For details about execution simulations, see 4.4.2(2) Execution simulation in the manual Job Management Partner 1/Automatic Job Management System 3 Overview.

If the schedule is changed temporarily, execution simulation is performed based on the new time.

#23

Effective only when the unit type is job, netcn, or a connection-destination jobnet.

Otherwise, three asterisks (***) are output.

#24

Effective only when the unit type is net.

Otherwise, none is output (when the language type is English).

#25

Effective only when the unit type is any of the following:

net, pjob, job, qjob, evwjb, flwjb, mlwjb, mqwjb, mswjb, lfwjb, ntwjb, tmwjb, evsjb, mlsjb, mqsjb, mssjb, cmsjb, pwljb, pwrjb, cupjb, cuujb

Otherwise, three asterisks (***) are output.

#26

For a generation that is not scheduled to be executed the next time (Result, Now running, or Not sched. to exe.), three asterisks (***) are output.

#27

Effective only when the unit type is net or rmnet. Otherwise, three asterisks (***) are output.

Table 2-16 Two-byte format indicators for outputting definition information about jobnets and jobs

Two-byte format indicator	Output information
%SP	The state of being suspended (or not) exist none
%OP	Execution date for a jobnet#1
%St	Actual execution start date and time of a jobnet or job#1
%st	Actual execution start date and time of a jobnet or job#1
%Pt	Date and time at which jobnet execution is to start#2, #10
%Jm	Full-path jobnet or job name (a root jobnet name is omitted for a unit in a planning group)
%Am	Character string specified with AJSPATH= (a root jobnet name is omitted for a unit in a planning group). Character string specified with %Jm except the part that follows the right-most slash (/).
%Ed	Whether or not to suppress the execution if the scheduled time for execution has passed during startup of the scheduler service.#3 yes: Suppress the execution no: Do not suppress the execution
%cm	Comment#4 (character string of up to 80 bytes)
%ab	Estimated time between the start of the abnormally ended job and the end of the root jobnet#1, #5
%an	Estimated time between the start of the unit next to the abnormally ended job and the end of the root jobnet#1, #5
%FG	Number of future generations #6 (from 1 to 99)
%ds	Date/time for monitoring the start delay #1
%de	Date/time for monitoring the termination delay #1, #7
%Ft	Hold attributes hold: Holds not-hold: Does not hold abend-hold: Holds if the previous state was abend warning-hold: Holds if the previous state was warning hold-set: Sets the hold attribute temporarily hold-release: Releases the hold attribute temporarily
%MV	Macro variable and passing information specified at the time jobnets are registered for execution or the macro variable name and inherit result information taken over when jobs are executed#1, #4, #8, #9
%CN	Unit full name of the connection-destination#11, #14 If a jobnet connector is specified, the unit full name of the connection-destination jobnet is output. If a connection-destination jobnet is specified, the unit full name of the jobnet connector is output.
%CI	Execution ID of the connection-destination#11, #12 If a jobnet connector is specified, the execution ID of the connection-destination jobnet is output. If a connection-destination jobnet is specified, the execution ID of the jobnet connector is output.
%CS	Method for controlling the execution order of the connection-destination jobnet#13
%CH	Host name of the connection-destination#11, #15 If this format indicator is specified for a jobnet connector, the host name of the connection-destination jobnet is output. If this format indicator is specified for a connection-destination jobnet, the host name of the jobnet connector is output.
%CF	Name of the scheduler service for the connection-destination#11, #15 If this format indicator is specified for a jobnet connector, the name of the scheduler service for the connection-destination jobnet is output. If this format indicator is specified for a connection-destination jobnet, the name of the scheduler service for the jobnet connector is output.
%RI	Release-ID#16
%so	Standard output file name#17, #18 (The standard output file name specified in the job definition is output even if the standard output file does not exist. For example, the file does not exist when a unit that does not use the standard output (OR job, judgment job, event job, jobnet connector, or connection-destination jobnet) or a job that has not been executed is specified.)

Note

The format indicators shown in Table 2-16 allow specifying a set of two alphabetic characters as a two-byte format indicator. For example, %S can be specified as -i %SS. The -f and -t options will not accept two-byte format indicators. That is, all of the following are incorrect: -f %JJ, -t %JJ, and -f %SP.

#1

For details about the output format, see Table 2-18.

#2

Effective only when the unit is a jobnet. Otherwise, an asterisk (*) is output.

#3

Effective only when the type of the unit is net, netcn, rmnet, or hlnet.

Otherwise, three asterisks (***) are output.

#4

Double quotation marks (") are output at the beginning and end of the character string.

If there is no value to be output, only "" is output.

#5

The required time is estimated based on the execution result after the root jobnet is registered for execution only when the -b, -e, -v, or -w option is specified. One minute is the estimate for a job that has never been executed in the generation containing a job that has ended abnormally. 0 seconds is the estimate for a job that has already ended normally. The information about a unit that has ended without being executed is not output by specifying the -b or -e option. To output the information about a unit that has ended without being executed, use the -v or -w option.

For details about the estimated required time, see Additional information 3 below.

#6

The *** string is output if the number of future generations is not specified at the time of registration for execution. This is the information about the root jobnet, which is 0 in the generation number sequence.

#7

If you use the time-required-for-execution to monitor the date/time for end delay, the monitoring date/time is not output. The * string is output instead.

#8

This is effective only when the unit type is root jobnet (excluding remote jobnets) or job. Otherwise, the *** string is output.

#9

The "" string is output for a pseudo schedule.

#10

The date and time that execution has been scheduled is output. If the schedule is temporarily changed, the new schedule is output.

#11

This is effective only when the unit type is a jobnet connector or jobnet (connection-destination jobnet).

Otherwise, the *** string is output. The *** string is also output when permission to view the jobnet connector or connection-destination jobnet is not granted.

If an invalid unit is specified as the unit to be connected by the jobnet connector or connection-destination jobnet, the execution ID, unit full name, host name, and scheduler service name are displayed. However, the status of the unit changes to Ended abnormally because a definition error occurs during execution.

To check whether the definition is correct, specify the jobnet connector in the ajschkdef command. For details on the ajschkdef command, see ajschkdef in 2. Commands and 8. Definition Pre-Check in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

#12

If a jobnet connector or connection-destination jobnet is defined on a different host or in a different scheduler service, the *** string is output for a generation scheduled to be executed.

For details about how to check the execution ID of a jobnet connector or connection-destination jobnet defined on a different host or in a different scheduler, see Additional information 4 below.

#13

This is effective only for a connection-destination jobnet. Otherwise, three asterisks (***) are output.

#14

If Connection range is Other service, the information defined for the unit is output.

#15

If Connection range is Same service, the *** string is output.

#16

For a release target jobnet (a root jobnet for which release entry is made) or its subordinate unit, the release ID is output. Otherwise, three asterisks (***) are output.

#17

This is effective only when the unit type is any of the following:

net,pjob,job,qjob,evwjb,flwjb,mlwjb,mqwjb,mswjb,lfwjb,ntwjb,tmwjb,evsjb,mlsjb,mqsjb,mssjb,cmsjb,pwljb,pwrjb,cupjb,cuujb,orjob,jdjob,netcn

Otherwise, three asterisks (***) are output.

#18

For simulation, three asterisks (***) are output.

Table 2-17 Other format indicators

Format indicator	Output information
%%	%
%n	Line feed character
%t	Tab character
%x	Current date#
%X	Current time#

#

Time at which you started executing the ajsshow command. For details about the output format, see the following table:

Table 2-18 Output format of format indicators

Format indicator	Output format
%D %P %S %E %K %V %Q %B %O %m %St %Pt %ds %de	MMM DD YYYY hh:mm For DD, if the value to be output is one digit, a space is prefixed. For hh and mm, a zero (0) is prefixed. Example: Jul 1 2010 12:30 Note, however, that if there is no information to be output for the unit, *** ** **** **:** is output.
%s %e %k %b %o %v %w %st	MMM DD YYYY hh:mm:ss For DD, if the value to be output is one digit, a space is prefixed. For hh and mm, a zero (0) is prefixed. Example: Jul 1 2010 12:30:00 Note, however, that if there is no information to be output for the unit, *** ** **** **:** is output.
%x %OP	MMM DD YYYY For DD, if the value to be output is one digit, a space is prefixed. Example: Jul 1 2010 Note, however, that if there is no information to be output for the unit, *** ** **** **:** is output.
%X %a %ab %an	hh:mm:ss Example: 12:30:30
%l	YYYYMMDDNNN Example: Job whose execution registration number is 20100701001 20100701001
%MV	"information-1:information-2"[,"information-1:information-2"[...]] information-1: macro variable name information-2: passing information, or inherit result information (Example 1) For the root jobnet "AJS2ENV:/data/job_report","AJS2COM:c:\temp\test.exe" (Example 2) For a job "AJS2ENV:/data/job_report","AJS2COM:c:\temp\test.exe"

Additional information 2

The following table shows differences between information output when a target unit is automatically selected from the units in a planning group and that output when a target unit is not automatically selected.

Table 2-19 Differences in output information depending on whether a target unit is automatically selected from the units in a planning group

Format indicator	When a target unit is automatically selected	When a target unit is not automatically selected
%p %P %M	Information about the unit to be executed next in the planning group	Schedule for the next execution of the specified unit
%G	Generation number obtained by integrating execution information for the root jobnets in the planning group	Generation number for the specified unit only
%l	Execution registration number obtained by integrating execution information for the root jobnets in the planning group	Execution registration number for the specified unit only
%Y %a	This information is maintained for each unit. Information for each unit is output even if you specify the function for automatically selecting a target unit.
%B %b %O %o	Information obtained from processing cycle calculation is calculated based on information maintained for each unit. Information for each unit is output even if you specify the function for automatically selecting a target unit.

The following example planning group definition shows differences in information output with %P, %G, and %l depending on the specification with the -X option.

Example planning group definition

Planning group (/group1) has three units, /group1/jobnet001, /group1/jobnet002, and /group1/jobnet003.

The scheduled start times for the units are as follows:

The scheduled start time for /group1/jobnet001 is 08:00 (absolute time).

The scheduled start time for /group1/jobnet002 is 09:00 (absolute time).

The scheduled start time for /group1/jobnet003 is 10:00 (absolute time).

Example 1:

Information output with %P when the -X option is set to yes.


ajsshow -f "Next schedule=%P %C %J" -g  1 -X yes  /group1


Output result


Next schedule=Aug 13 20XX 08:00 normal /group1/jobnet003

Explanation:

In this case, the command outputs the next scheduled execution time for the unit to be executed next (/group1/jobnet001) under the root jobnets in the planning group.

Example 2:

Information output with %P when the -X option is set to no.


ajsshow -f "Next schedule=%P %C %J" -g  1 -X no  /group1/jobnet003


Output result


Next schedule=Aug 15 20XX 10:00 normal /group1/jobnet003

Explanation:

In this case, the command outputs the next scheduled execution time for the specified unit (/group1/jobnet003).

Example 3:

Information output with %G when the -X option is set to yes.


ajsshow -f "Generation=%G Start time=%S %C %J" -g  3 -X yes  /group1


Output result


Generation=1 Start time=Aug 12 20XX 10:00 normal /group1/jobnet003
Generation=2 Start time=Aug 11 20XX 09:00 normal /group1/jobnet002
Generation=3 Start time=Aug 10 20XX 08:00 normal /group1/jobnet001

Explanation:

In this case, the command outputs the generation number obtained by integrating execution information for the root jobnets in the planning group.

Example 4:

Information output with %G when the -X option is set to no.


ajsshow -f "Generation=%G Start time=%S %C %J" -g  3 -X no  /group1/jobnet001


Output result


Generation=1 Start time=Aug 10 20XX 08:00 normal /group1/jobnet001
Generation=2 Start time=Aug  7 20XX 08:00 normal /group1/jobnet001
Generation=3 Start time=Aug  4 20XX 08:00 normal /group1/jobnet001

Explanation:

In this case, the command outputs the generation number based on execution information for the specified unit.

Example 5:

Information output with %l when the -X option is set to yes.


ajsshow -f "Registration number=%l Start time=%S %C %J" -b 20XX/8/3  -X yes  /group1


Output result


Registration number=20XX0803001 Start time=Aug  3 20XX 08:00 normal /group1/jobnet001
Registration number=20XX0803002 Start time=Aug  3 20XX 09:00 normal /group1/jobnet002
Registration number=20XX0803003 Start time=Aug  3 20XX 10:00 normal /group1/jobnet003

Explanation:

In this case, the command outputs the execution registration number obtained by integrating execution information for the root jobnets in the planning group.

Example 6:

Information output with %l when the -X option is set to no.


ajsshow -f "Registration number=%l Start time=%S %C %J" -b 20XX/8/3  -X no  /group1/jobnet003


Output result


Registration number=20XX0803001 Start time=20XX/08/03 10:00 Normal end /group1/jobnet003

Explanation:

In this case, the command outputs the execution registration number based on execution information for the specified jobnet.

Additional information 3

The following example shows how to calculate the estimated required time for a job that has ended abnormally.

Example 1:

The following describes how to calculate the estimated required time to determine whether to immediately re-execute a job that has ended abnormally, using the example jobnet configuration as shown below.

The jobs /jobnet1/nestjobnet001/job3 and /jobnet1/nestjobnet002/job2 have ended abnormally.

The following shows the output information and output results for %ab when the -v and -w options are specified.

Output information


ajsshow -i "Estimated required time=%ab UnitName=%JJ" -v 20XX/2/12 -w 20XX/2/12 -RN /jobnet1


Output result


Estimated required time=07:00:00 UnitName=/jobnet1
Estimated required time=07:00:00 UnitName=/jobnet1/nestjobnet001
Estimated required time=03:00:00 UnitName=/jobnet1/nestjobnet002


Explanation:

The output results indicate that the execution of jobnet001 will require seven hours so that you might decide to re-execute only this unit (jobnet1/nestjobnet001) at night or immediately re-execute only the jobnet1/nestjobnet002 unit, which will require three hours.

Example 2:

Suppose the jobnet that follows the abnormally ended job has a scheduled start time specified. The result of calculating the estimated required time may vary with whether the time when the job ends due to the start of re-execution precedes or follows the scheduled start time for the next jobnet.

• If the time when the job ends due to the start of re-execution precedes the scheduled start time for the next jobnet




  The job /jobnet1/nestjobnet001/job2 has ended abnormally. The scheduled start time for the next jobnet (/jobnet1/nestjobnet002) is 05:00.
  If re-execution starts at 03:00, the job /jobnet1/nestjobnet001/job2 is executed between 03:00 and 04:00 and nestjobnet001 ends at 04:00. The jobnet nestjobnet002 waits until 05:00 (scheduled start time) and then starts at 05:00 and ends at 07:00. The following shows the output information and output results:


Output information


ajsshow -i "Estimated required time=%ab UnitName=%JJ" -v 20XX/8/21 -w 20XX/8/21 -d 20XX/8/21 -h 3:00 -RN /jobnet1


Output result


Estimated required time=04:00:00 UnitName=/jobnet1
Estimated required time=01:00:00 UnitName=/jobnet1/nestjobnet001
Estimated required time=02:00:00 UnitName=/jobnet1/nestjobnet002


Explanation:

The output results indicate that jobnet1 will require four hours, 3:00 to 7:00.

• If the time when the job ends due to the start of re-execution follows the scheduled start time for the next jobnet




  The job /jobnet1/nestjobnet001/job2 has ended abnormally. The scheduled start time for the next jobnet (/jobnet1/nestjobnet002)is 05:00.
  If re-execution starts at 05:00, the job /jobnet1/nestjobnet001/job2 is executed between 05:00 and 06:00 and nestjobnet001 ends at 06:00. The jobnet nestjobnet002, for which the scheduled start time, 05:00 is already passed, is immediately executed and ends at 08:00. The following shows the output information and output results:


Output information


ajsshow -i "Estimated required time=%ab UnitName=%JJ" -v 20XX/8/21 -w 20XX/8/21 -d 20XX/8/21 -h 5:00 -RN /jobnet1


Output result


Estimated required time=03:00:00 UnitName=/jobnet1
Estimated required time=01:00:00 UnitName=/jobnet1/nestjobnet001
Estimated required time=02:00:00 UnitName=/jobnet1/nestjobnet002


Explanation:

The output results indicate that jobnet1 will require three hours, 5:00 to 8:00.

As shown above, you can specify the -d and -h options when calculating the estimated required time to determine how long re-execution will take depending on the time when re-execution is started.

Additional information 4

If a jobnet connector or a connection-destination jobnet connector is defined on a different host or in a different scheduler service, *** is output even if %CI is specified in the -i option.

If you want to check the execution ID of a jobnet connector or connection-destination jobnet defined on a different host or in a different scheduler, remotely execute the ajsshow command as described in the following procedure.

To check the execution ID of a jobnet connector or connection-destination jobnet defined on a different host or in a different scheduler:

1. Remotely execute the ajsshow command to display the host name, scheduler service name, and unit full name of the connection-destination.
   Execute the following command:



   ajsshow -v 20XX/07/01 -i "%CH %CF %CN" unit-name


2. Display the execution ID of the connection-destination from the information displayed in step 1.
   Execute the following command:



   host-name-displayed-in-step-1:scheduler-service-name-displayed-in-step-1:ajsshow -v 20XX/07/01 -i "%CI" unit-name


Additional information 5

If you specify a for the -g option, execution result information for jobnets with start conditions specified is output in order from the generation with the latest scheduled start time to the one with the earliest.

If you register a jobnet for execution with start conditions specified, a generation for monitoring the start conditions is created when the start time is reached. At the same time, generations in the Wait for start cond. status are also created and are executed when the start conditions are satisfied.

The scheduled start time for the generation being monitored is also assumed for the generations in the Wait for start cond. status and the generations executed when start conditions are satisfied. If you are using jobnets with start conditions and jobnets without start conditions, note the order in which the execution result information is output.

The following shows an example when the number of logs to keep is 10. In this example, a jobnet (net) with start conditions specified is registered for execution, and later a jobnet without start conditions specified is registered for execution.

As shown, a jobnet (net) with start conditions specified is registered for execution on March 1 and a generation for monitoring the start conditions is created (1-0 in the figure). At the same time, generations in the Wait for start cond. status are created. These generations are executed on March 2, March 4, and March 5 when their start conditions are satisfied (1-1, 1-2, and 1-3 in the figure).

In addition, a jobnet (net) without start conditions specified is registered for execution on March 3(2 in the figure).

Output information


ajsshow -f "Generation=%G %J %# %C" -g a -T /net


Output result


Generation=1 /net @A103 Normal end
Generation=2 /net @A105 Wait for start cond.#
Generation=3 /net @A104 Normal end#
Generation=4 /net @A102 Normal end#
Generation=5 /net @A101 Normal end#
Generation=6 /net @A100 Now monitoring#


# Execution result information for a generation with start conditions specified

Explanation:

When you execute the ajsshow command to output execution result information, the result of executing the jobnet that was registered for execution on March 3 is output as generation 1, since it is the latest execution result of the jobnet (net). For generations 2 to 6, the results of executing the jobnet with start conditions registered for execution on March 1 are output in order by generation according to the generation whose start conditions were satisfied last.

Example 1

The following command outputs the results of executing jobnet net1, and jobnets and jobs in it to the standard output file.


   ajsshow -l net1


Example 2

The following command outputs two generations of results of executing a jobnet in the job group group1. The information to be displayed is the full-path jobnet name, the execution start time, and the execution end time.


   ajsshow -t"Generation: %G" -g2 -f"%J %S %E" -RE /group1


Output example


Generation: 1
/group1/net1 Jun  8 20XX  10:00 Jun  8 20XX  12:00
Generation: 2
/group1/net1 Jun  1 20XX  10:00 Jun  1 20XX  11:30
Generation: 1
/group1/net2 Jun  8 20XX  11:00 Jun  8 20XX  11:30
Generation: 2
/group1/net2 Jun  1 20XX  11:00 Jun  1 20XX  12:00

Example 3

The following command outputs scheduled execution information (jobnet name, generation number and execution start time) on jobnet net for July 2010 (July 1, 2010 to July 31, 2010), displaying the target output period on the title row.


ajsshow -t "Period  %v-%w" -f" %j %G %B"-b 2010/7/1 -e 2010/7/31 /net

Output example


Period   Jul  1 2010  00:00:00-Jul 31 2010 23:59:59
 net -5  Jul  7 2010    10:00
Period   Jul  1 2010  00:00:00-Jul 31 2010 23:59:59
 net -6  Jul 14 2010    10:00
Period   Jul  1 2010  00:00:00-Jul 31 2010 23:59:59
 net -7  Jul 21 2010    10:00
Period   Jul  1 2010  00:00:00-Jul 31 2010 23:59:59
 net -8  Jul 31 2010    10:00

Example 4

The following command outputs the name of the standard error output file for job job1 in jobnet net, whose execution registration number is 20100701001. Assume that the job error information directory (/var/opt/jp1ajs2/jobinf) is set for the JOBINFDIR environment setting parameter.


ajsshow -B 20100701001 -r /net/job1

Output example


/var/opt/jp1ajs2/jobinf/e/67/0.e.err

Example 5

For the following jobnet (net) and jobs (job1, job2, and job3) under the jobnet, this example specifies the period using the -b, -e, -v, and -w options to output the execution start and end dates and times.

Specifying 2010/07/21 in the -b and -e options


ajsshow -b 2010/07/21 -e 2010/07/21  -f "%S %E %J"  -R /net


Output example


Jul 21 2010 10:00 Jul 22 2010 06:00 /net
Jul 21 2010 16:00 Jul 21 2010 21:00 /net/job1
Jul 21 2010 21:00 Jul 22 2010 02:00 /net/job2

Explanation:

The calendar date is the target of output.

The output covers the information about net as well as job1 and job2 under net where execution is started on 2010/07/21.

Specifying 2010/07/21 in the -v and -w options


ajsshow -v 2010/07/21 -w 2010/07/21  -f "%S %E %J"  -R /net


Output example


Jul 21 2010 10:00 Jul 22 2010 06:00 /net
Jul 21 2010 16:00 Jul 21 2010 21:00 /net/job1
Jul 21 2010 21:00 Jul 22 2010 02:00 /net/job2
Jul 22 2010 02:00 Jul 22 2010 06:00 /net/job3

Explanation:

The execution date for the jobnet is the target of output.

The output covers the information about net as well as the three jobs under net where execution is started on 2010/07/21.

Specifying 2010/07/22 in the -b and -e options


ajsshow -b 2010/07/22 -e 2010/07/22 -f "%S %E %J"  -R /net


Output example


Jul 21 2010 10:00 Jul 22 2010 06:00 /net
Jul 22 2010 02:00 Jul 22 2010 06:00 /net/job3

Explanation:

The calendar date is the target of output.

The output covers the information about job3 where execution is started on 2010/07/22.

Specifying 2010/07/22 in the -v and -w options


ajsshow -v Jul 22 2010 -w Jul 22 2010  -f "%S %E %J"  -R /net


Explanation:

The execution date for the jobnet is the target of output.

The output covers no information even if you specify 2010/07/22 in the -v and -w options because the execution date for net is 2010/07/21.

Example 6

This example explains how you can output information about a jobnet connector or connection-destination jobnet by using the -i option.

• jobnet connector
  host name: HOSTA
  scheduler service name: AJSROOT1
  unit name: /JC/jobnet-connector
  execution ID: @A544

• connection-destination jobnet
  host name: HOSTB
  scheduler service name: AJSROOT2
  unit name: /JC-NET
  execution ID: @A546


When a jobnet connector is specified for the -i option:


ajsshow -i "%JJ %TT %CH %CF %CN %CI %CS" /JC/jobnet-connector


Output example


/JC/jobnet-connector netcn HOSTB AJSROOT2 /JC-NET @A546 ***


When a connection-destination jobnet is specified for the -i option:


ajsshow -i "%JJ %TT %CH %CF %CN %CI %CS" /JC-NET


Output example

/JC-NET net HOSTA AJSROOT1 /JC/jobnet-connector @A544 nosync

Output example

• When you specify the -s option




• When you specify the -p option




• When you specify the -l option




Explanation of the output items

AJSPATH=

Indicates the contents of the full-path jobnet or job name except the jobnet or job name covered in name.

name

Indicates a jobnet or job name.

type

Indicates the type of a unit.

mgroup: Manager job group

group: Job group

mnet: Manager jobnet

condn: Start condition (.CONDITION)

net: Jobnet

rnet: Jobnet for recovery

rmnet: Remote jobnet

rrnet: Remote jobnet for recovery

job: UNIX job

rjob: UNIX job for recovery

pjob: PC job

rpjob: PC job for recovery

qjob: QUEUE job

rqjob: QUEUE job for recovery

jdjob: Judgment job

rjdjob: Judgment job for recovery

orjob: OR job

rorjob: OR job for recovery

cmsjb: OpenView status report job

rcmsjb: OpenView status report job for recovery

evwjb: JP1 event reception monitoring job

revwjb: JP1 event reception monitoring job for recovery

flwjb: File monitoring job

rflwjb: File monitoring job for recovery

mlwjb: Email reception monitoring job

rmlwjb: Email reception monitoring job for recovery

mqwjb: Message queue reception monitoring job

rmqwjb: Message queue reception monitoring job for recovery

mswjb: MSMQ reception monitoring job

rmswjb: MSMQ reception monitoring job for recovery

lfwjb: Log file monitoring job

rlfwjb: Log file monitoring job for recovery

ntwjb: Windows event-log monitoring job

rntwjb: Windows event-log monitoring job for recovery

tmwjb: Execution interval control job

rtmwjb: Execution interval control job for recovery

evsjb: JP1 event sending job

revsjb: JP1 event sending job for recovery

mlsjb: Email sending job

rmlsjb: Email sending job for recovery

mqsjb: Message queue sending job

rmqsjb: Message queue sending job for recovery

mssjb: MSMQ sending job

rmssjb: MSMQ sending job for recovery

pwljb: Local power control job

rpwljb: Local power control job for recovery

pwrjb: Remote power control job

rpwrjb: Remote power control job for recovery

cuujb: Custom UNIX job

rcuujb: Custom UNIX job for recovery

cupjb: Custom PC job

rcupjb: Custom PC job for recovery

netcn: Jobnet connector

n: Job group

p: Planning group

Status

Indicates the status of a jobnet or job.

next-execution-schedule

Indicates whether the displayed jobnet or job is scheduled to be executed next.

exist: The jobnet or job is scheduled to be executed next.

none: The jobnet or job is not scheduled to be executed next.

registrant

Indicates the name of the user who registered the jobnet for execution.

registration-time

Indicates the date and time when the jobnet was registered for execution.

scheduled-next-execution-time

Indicates the scheduled next execution time.

If the next execution time is not scheduled, *** ** **** **:** is displayed.

method-of-execution

Indicates the method of the next execution.

schedule: Follows the planned execution schedule for execution.

plan: Changes the plan temporarily for execution

shift: Shift for execution

code

Indicates the return value or the cancellation signal code.

If there is no return value or signal code, *** appears.

execution-start-time

Indicates the execution start date and time.

If execution is not started, *** ** **** **:** appears.

execution-end-time

Indicates the execution end date and time.

If execution is not ended, *** ** **** **:** appears.

Example 7

The following command outputs the name of the standard output file used by job job1 in jobnet net executed in the period from 2010/08/06 to 2010/08/07. Assume that the job information storage directory (C:\Program Files\HITACHI\JP1AJS2\jobinf) is set for the JOBINFDIR environment setting parameter.


ajsshow -b 2010/08/06 -e 2010/08/07 -i "%so" /net/job1


Output example


C:\Program Files\HITACHI\JP1AJS2\jobinf\d\6e\0.e.std

[Contents][Back][Next]

Copyright (C) 2009, 2010, Hitachi, Ltd.
Copyright (C) 2009, 2010, Hitachi Solutions, Ltd.
