Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
The Set Default Values dialog box allows you to perform the following:
- Change default values in dialog boxes
- Prohibit change of specific definition items in the Define Details dialog boxes
- Prohibit displaying unit icons in icon list if they are not used in the Jobnet Editor window
The following figures show a case where a definition item is selected in the tree area in the Set Default Values dialog box and a case where an icon name is selected in the Set Default Values dialog box.

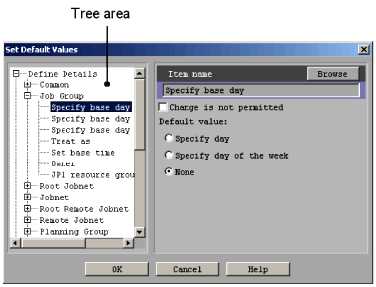

Figure 15-75 Set Default Values dialog box (when a definition item is selected)

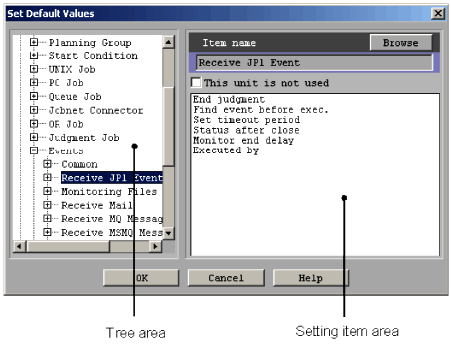

Figure 15-76 Set Default Values dialog box (when an icon name is selected)
The following explains the displayed items.
- Tree area
- Lists the customizable dialog boxes and the settings for each dialog box in a hierarchical format. The following table lists the items for which you can change default values.
- Note that the name enclosed between angle brackets (< >) in the Dialog box name column indicates the name of a dialog box shown in the tree area in the Set Default Values dialog box.
Table 15-25 Items whose defaults you can customize
Dialog box name Setting item Define Details (for all units)#1
<Define Details - common>Delayed end - Time-required-for-execution Executed by Define Details - [Job Group] Specify base day Week (week) Week (day of the week) Treat as Set base time Define Details - [Jobnet] (for a root jobnet)
<Define Details - Root Jobnet>Concurrent exec. No. logs to keep Priority Time-out period Schedule option Monitor jobnet - Time-required-for-execution Exec. order control#2, #3 Connection range#2, #4 Exec. order method#2, #3 Hold Define Details - [Jobnet] (for a nested jobnet)
<Define Details - Jobnet>Monitor jobnet - Time-required-for-execution Define Details - [Remote Jobnet] (for a root jobnet)
<Define Details - Root Remote Jobnet>Concurrent exec. No. logs to keep Priority Time-out period Schedule option Monitor jobnet - Time-required-for-execution Hold Define Details - [Remote Jobnet] (for a nested jobnet)
<Define Details - Remote Jobnet>Monitor jobnet - Time-required-for-execution Define Details - [Planning Group] Specify base day Week (week) Week (day of the week) Treat as Set base time Exec. order control#3 Connection range#4 Exec. order method#3 Define Details - [Start Condition] Start Condition Concurrent exec. of monitoring gen. Pause exec. gen. for start cond. Task after abend Define Details - [UNIX Job] Priority End judgment - Rule Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Define Details - [PC Job] Priority End judgment - Rule Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Define Details - [Queue Job] Priority End judgment - Rule Delayed end - Time-required-for-execution Executed by Define Details - [Jobnet Connector] Connection range#4 Define Details - [Judgment Job] Judgment type Condition (Return code) Condition (File) Condition (Variable (char.)) Condition (Variable (number)) Detailed Definition (for all event jobs)#1
<Detailed Definition - All Event Jobs>Set timeout period Status after close Detailed Definition - [Receive JP1 Event] End judgment Find event before exec. Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Monitoring Files] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Receive Mail] Platform Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Receive MQ Message] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Receive MSMQ Message] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Monitoring Log Files] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Monitoring Event Log] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition - [Interval Control] Set timeout period Status after close Delayed end - Time-required-for-execution Executed by Detailed Definition (for all action jobs)#1
<Detailed Definition - All Action Jobs>Platform Exec. Service Set timeout period Detailed Definition - [Send JP1 Event] Check event arrivals Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [Send Mail] Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [Send MQ Message] Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [Send MSMQ Message] Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [OpenView Status Report] Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [Local Power Control] Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Detailed Definition - [Remote Power Control] Platform Exec. Service Set timeout period Delayed end - Time-required-for-execution Executed by Define Details - [Custom Job]
<Define Details - Custom Job (PC)> or
<Define Details - Custom Job (UNIX)>Delayed end - Time-required-for-execution Executed by Register for Execution Register method Planned execution - Planned time passed when daemon starts Planned execution - Planned time passed when reg. for exe. Fixed execution - Planned time passed when daemon starts Immediate execution - Start condition Immediate execution - Valid range of start condition (Times) Immediate execution - Valid range of start condition (Period) Shift Schedule Date and Time Start time When schedule is pushed ahead: Change schedule of all lower jobnets Immediate Execution When schedule is pushed ahead: Change date and time of all lower jobnets Rerun dialog box (for root jobnets) Rerun with hold Set skipped jobs to warning Rerun dialog box (for a nested jobnet or job) Rerun with hold Set skipped jobs to warning
- #1
- If you specify the same item in the Common dialog box and other dialog boxes, the item set later becomes valid.
- #2
- When you create a unit under a planning group, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- #3
- When you create a unit when you connect to a JP1/AJS2 - Manager of version 08-00 or earlier, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- #4
- When you create a unit when you connect to a JP1/AJS2 - Manager of version 08-10 or earlier, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- The following table lists the items for which you can disable permission for changes.
Table 15-26 Items for which you can disable permission for changes
Dialog box name Setting item Define Details - [Job Group] Specify base day Week (week) Week (day of the week) Treat as Set base time Owner JP1 resource group Define Details - [Jobnet] (for a root jobnet)
<Define Details - Root Jobnet>Exec-agent Concurrent exec. No. logs to keep Priority Time-out period Schedule option Monitoring jobnet - Time-required-for-execution Exec. order control#1, #2 Connection range#1, #3 Exec. order method#1, #2 Hold Type Owner JP1 resource group Define Details - [Jobnet] (for a nested jobnet)
<Define Details - Jobnet>Exec-agent Priority Monitoring jobnet - Time-required-for-execution Hold Type Owner JP1 resource group Define Details - [Remote Jobnet] (for a root remote jobnet)
<Define Details - Root Remote Jobnet>Exec-agent Concurrent exec. No. logs to keep Priority Time-out period Schedule option Monitoring jobnet - Time-required-for-execution Hold Type Owner JP1 resource group Define Details - [Remote Jobnet] (for a nested remote jobnet)
<Define Details - Remote Jobnet>Exec-agent Priority Monitoring jobnet - Time-required-for-execution Hold Type Owner JP1 resource group Define Details - [Planning Group] Specify base day Week (week) Week (day of the week) Treat as Set base time Exec. order control#2 Connection range#3 Exec. order method#2 Owner JP1 resource group Define Details - [Start Condition] Start condition Concurrent exec. of monitoring gen. Pause exec. gen. for start cond. Task after abend Owner JP1 resource group Define Details - [UNIX Job] Exec-agent Command statement Script file name Parameters Environment variables Environment file Working path Priority Standard input Standard output - File name Standard output - Append Standard error - File name Standard error - Append End judgment - Rule End judgment - Warning#4 User name Transfer file 1 - File to transfer#5 Transfer file 1 - Destination file Transfer file 1 - Yes Transfer file 2 - File to transfer#5 Transfer file 2 - Destination file Transfer file 2 - Yes Transfer file 3 - File to transfer#5 Transfer file 3 - Destination file Transfer file 3 - Yes Transfer file 4 - File to transfer#5 Transfer file 4 - Destination file Transfer file 4 - Yes Hold Type Exec. Service Set timeout period Monitor end delay - Time-required-for-execution Owner JP1 resource group Executed by Define Details - [PC Job] Exec-agent File name Parameters Environment variables Environment file Working path Priority Standard input Standard output - File name Standard output - Append Standard error - File name Standard error - Append End judgment - Rule End judgment - Warning#4 User name Transfer file 1 - File to transfer#5 Transfer file 1 - Destination file Transfer file 1 - Yes Transfer file 2 - File to transfer#5 Transfer file 2 - Destination file Transfer file 2 - Yes Transfer file 3 - File to transfer#5 Transfer file 3 - Destination file Transfer file 3 - Yes Transfer file 4 - File to transfer#5 Transfer file 4 - Destination file Transfer file 4 - Yes Hold Type Exec. Service Set timeout period Monitor end delay - Time-required-for-execution Owner JP1 resource group Executed by Define Details - [Queue Job] Host name Job name File name Parameters Priority End judgment - Rule End judgment - Warning#4 Transfer file 1 - File to transfer#5 Transfer file 1 - Destination file Transfer file 2 - File to transfer#5 Transfer file 2 - Destination file Transfer file 3 - File to transfer#5 Transfer file 3 - Destination file Transfer file 4 - File to transfer#5 Transfer file 4 - Destination file Hold Type Monitor end delay - Time-required-for-execution Owner JP1 resource group Executed by Define Details - [Jobnet Connector] Connection range#4 Owner JP1 resource group Define Details - [OR Job] Type Owner JP1 resource group Define Details - [Judgment Job] Judgment type Condition (Return code) Condition (File) Condition (Variable (char.)) Condition (Variable (number)) Hold Type Owner JP1 resource group
- #1
- When you create a unit under a planning group, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- #2
- When you create a unit when you connect to a JP1/AJS2 - Manager of version 08-00 or earlier, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- #3
- When you create a unit when you connect to a JP1/AJS2 - Manager of version 08-10 or earlier, the specified default value will be invalid because this definition item is disabled and not available for change in the Define Details dialog box.
- #4
- When you select the Change is not permitted check box for this definition item in the Set Default Values dialog box, the value in Abnormal in End judgment in the Define Details dialog box must be greater than the value in Warning. If you enter a value in Abnormal that is smaller than the value in Warning and click the OK button, an error message appears and the value in Warning is selected. Because the value in Warning cannot be changed, change the value in Abnormal and click the OK button.
- #5
- When you select the Change is not permitted check box for this definition item in the Set Default Values dialog box, if the File to transfer text box in any of Transfer file 1 to Transfer file 4 in the Define Details dialog box is blank, you cannot enter a value in the Destination file text box. If you enter a value in Destination file and click the OK button without entering a value in the File to transfer text box, an error message appears and File to transfer is selected. However, because the value in File to transfer cannot be changed, delete the value in Destination file and click the OK button.
- You can choose not to display the unit icons of the following types of units:
- Receive JP1 Event
- Monitoring Files
- Receive Mail
- Receive MQ Message
- Receive MSMQ Message
- Monitoring Log Files
- Monitoring Event Log
- Interval Control
- Send JP1 Event
- Send Mail
- Send MQ Message
- Send MSMQ Message
- OpenView Status Report
- Local Power Control
- Remote Power Control
- Item name
- Displays the item name you selected in the tree area.
- Browse button
- Displays the explanation of the manual for the item you selected in the tree area.
- Setting item area
- Displays a list of items from the items you selected in the tree area, the default statuses of the items, and other information.
- Change is not permitted
- This check box appears when you select a definition item in the tree area for which you can choose not to permit change. When you select this check box, the definition item is disabled and not available for change in the Define Details - [icon-name] dialog box. The check box is not selected by default.
- The unit is not used
- This check box appears when you select a unit in the tree area for which you can choose not to display its unit icon. When you select this check box, the unit icon does not appear in the icon list in the Jobnet Editor window. The check box is not selected by default.
