Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.3.31 Rerun dialog box (for a nested jobnet or job)

In the Rerun dialog box (for a nested jobnet or job), you specify how to re-execute jobnets or jobs. How to specify re-execution depends on whether a root jobnet is selected or a nested jobnet or job is selected. The following figure shows the Rerun dialog box (for a nested jobnet or job):

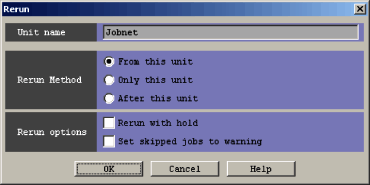

Figure 15-58 Rerun dialog box (for a nested jobnet or job)

The following explains the displayed items.

Unit name

Displays the name of the jobnet or job to be re-executed.

Rerun Method

Specify how to re-execute nested jobnets or jobs. The default is From this unit. For details, see 4.5.11(2) Rerun a nested jobnet or job in the manual Job Management Partner 1/Automatic Job Management System 3 Overview.

From this unit
Re-executes the specified unit and subsequent units.

Only this unit
Re-executes only the specified unit.

After this unit
Starts re-execution with the unit following the specified unit.

Rerun options

Specify whether to hold the unit specified for re-execution or to end the preceding unit in the abnormal status with a warning.

Run with hold

Holds the unit specified for re-execution. You can select this check box when you click the From this unit or Only this unit radio button in Rerun Method. You cannot select this check box when you click the After this unit radio button or when the selected unit is a jobnet connector.

Note that this check box is selected even for a jobnet connector if you have selected Rerun with hold for Rerun (for nested jobnet or job) in the Set Default Values dialog box. However, when you click the OK button, the check box is ignored.

Set skipped jobs to warning

If a preceding unit in abnormal status exists, end the end status of that unit with a warning.
