The Define Details - [Planning Group] dialog box defines the details of a planning group.
This dialog box contains the items displayed in common, and also contains the following pages:
- Definition page
- Attributes page
- Organization of this subsection
- (1) Items displayed in common
- (2) Definition page
- (3) Attributes page
(1) Items displayed in common
The following figure shows the items displayed in common.
Figure 15-33 Items displayed in common in the Define Details - [Planning Group] dialog box
The following explains the items displayed in common.
- Unit name
- Specify a unit name. Use a character string of up to 30 bytes. The default is a blank.
- Comment
- Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.
- Exec-agent
- You cannot set this item for a planning group.
(2) Definition page

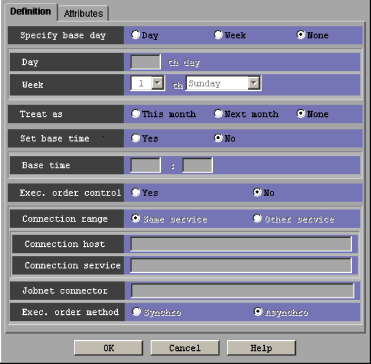

The following figure shows the Definition page in the Define Details - [Planning Group] dialog box.
Figure 15-34 Definition page in the Define Details - [Planning Group] dialog box
The following explains the displayed items.
- Specify base day
- Specify how to set the base date. The base date is the first date of a month. The default is None. The following gives how to set the base date:
- Day
Select this to specify the base date as a day of the month. You can specify the appropriate date in the Day field.
- Week
Select this to specify the base date as a day of the week. You can specify the appropriate day of the week in the Week field.
- None
Select this to use the base date defined for the upper-level job group.
If no base date is defined for the upper-level job group, 1 is assumed.
- Day
- Specify the base date as a day of the month. Available if you select Day for Specify base day. You can specify 1 to 31. The default is a blank.
- Week
- Specify the base date as a day of the week. Available if you select Week for Specify base day. You can enter 1 to 5, and the day of the week (Sunday to Saturday). The default is 1 and Sunday.
- Supplementary note
- The base date is the first date of a month.
- For example, if you select Day for the base date and specify 21, then the start date will be the 21st of each month, which ends on the 20th of the next month.
- Treat as
- Specifies whether a month starting from the specified base date should be treated as "this" month or "next" month. Available if you select Day or Week for Specify base day. The default is None. You can set one of the following:
- This month
Treats a month starting from the base date as this month.
- Next month
Treats a month starting from the base date as the next month.
- None
Follows the upper-level job group.
If no base month is defined for the upper-level job group, This month is assumed.
- Set base time
- Specifies whether to set the base time. The base time indicates the time at which a day starts. The default is No.
- Yes
Select this if you set the base time. You can specify an appropriate time using the hours:minutes format in the Base time field.
- No
Select this if you do not set the base time. In this case, the base time is assumed to be 00:00.
- Base time
- Set the base time in hours and minutes. Available if you select Yes for Set base time. You can set 0 to 23 hours, and 0 to 59 minutes. The default is a blank.
- For example, if 8:00 is set as the base time, a day starts at 8:00 and lasts until 7:59 on the next day.
- Exec. order control
- Specify whether to control the execution order of root jobnets directly under the planning group.
- Yes
Connects to a jobnet connector to control the execution order of root jobnets directly under the planning group.
When you click Yes, Jobnet Connector and Exec. order method are enabled.
- No
Does not control the execution order of root jobnets.
- The default selection is No.
- Connection range
- Specify the range of connection for a jobnet connector. The default selection is Same service.
- Same service
Click this option to connect to a jobnet connector under the same scheduler service.
- Other service
Click this option to connect to a jobnet connector under a different scheduler service. When you click this option, you can enter names in Connection host and Connection service.
- Connection range appears for JP1/AJS3 - View and JP1/AJS2 - View 08-50 or later.
- Connection host
- Use a character string of a maximum of 255 bytes to specify the host name of the host on which the jobnet connector to be connected is defined.
- This text box is available when you choose Yes in Exec. order control and choose Other service in Connection range.
- The text box is not available when you choose No in Exec. order control or choose Same service in Connection range.
- The text box is blank by default.
- You cannot specify single-byte spaces, tabs, and linefeed characters.
- You do not need to specify the host name here when the jobnet connector belongs to a different scheduler service but exists on the same host.
- This text box appears for JP1/AJS3 - View and JP1/AJS2 - View 08-50 or later.
- Connection service
- Use a character string of a maximum of 30 bytes to specify the scheduler service name of the scheduler service for which the jobnet connector to be connected is defined.
- You must specify a scheduler service name here when you choose Yes in Exec. order control and choose Other service in Connection range.
- This text box is not available when you choose No in Exec. order control or choose Same service in Connection range.
- The text box is blank by default.
- You can specify single-byte alphanumeric characters and symbols (! # $ % + @ - . _).
- This text box appears for JP1/AJS3 - View and JP1/AJS2 - View 08-50 or later.
- Jobnet Connector
- Use a character string of a maximum of 930 bytes to specify the full unit name of the jobnet connector to be connected. This text box is blank by default.
- An input error occurs if you specify a unit name with any of the following characteristics:
- A unit name that does not begin with a forward slash (/)
- A unit name where part of the unit name between forward slashes (/) exceeds 30 bytes#
- A unit name ending with a forward slash (/)
- #
- No error occurs when Other service is chosen in Connection range.
- This text box is enabled when you choose Yes in Exec. order control.
- Exec. order method
- Specify whether to synchronize the execution of the planning group with the start time of the jobnet connector.
- Synchro
Synchronizes with the start time of the jobnet connector. The execution of the planning group waits until the jobnet connector is executed.
- Asynchro
Starts the execution of the planning group without waiting for the execution of the jobnet connector.
- Asynchro is chosen by default.
- This section is enabled when you choose Yes in Exec. order control.
(3) Attributes page

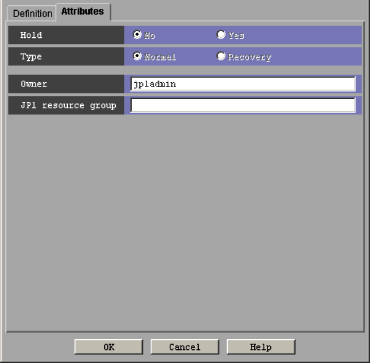

The following figure shows the Attributes page in the Define Details - [Planning Group] dialog box.
Figure 15-35 Attributes page in the Define Details - [Planning Group] dialog box
The following explains the displayed items.
- Hold
- You cannot select this item for a planning group.
- Type
- You cannot select this item for a planning group.
- Owner
- Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.
- JP1 resource group
- Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscores (_). The default is the JP1 resource group name of the upper-level unit. If you set a blank, you are not authorized to access the target.
