Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.3.12 Define Details - [Manager Job Group] dialog box

The Define Details - [Manager Job Group] dialog box defines the details of a manager job group.

This dialog box contains the items displayed in common, and also contains the following pages:

Definition page

Attributes page

Organization of this subsection

(1) Items displayed in common

(2) Definition page

(3) Attributes page

(1) Items displayed in common

The following figure shows the items displayed in common.

Figure 15-27 Items displayed in common in the Define Details - [Manager Job Group] dialog box

The following explains the items displayed in common.

Unit name

Specify a unit name. Use a character string of up to 30 bytes. The default is a blank.

Comment

Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.

Exec-agent

You cannot set this item for a manager job group.

(2) Definition page

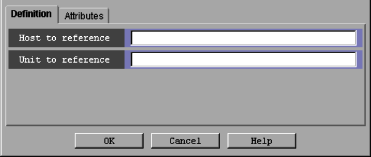

The following figure shows the Definition page in the Define Details - [Manager Job Group] dialog box.

Figure 15-28 Definition page in the Define Details - [Manager Job Group] dialog box

The following explains the displayed items.

Host to reference

Specify the name of the JP1/AJS3 - Manager host to be referenced. Use a character string of up to 255 bytes. The default is a blank.

Unit to reference

Specify a unit name in JP1/AJS3 - Manager to be referenced. Use a character string of up to 961 bytes. Use a full path name to specify the name of the unit to be referenced. The default is a blank.

Example

AJSROOT1:/GROUP/GROUP1

(3) Attributes page

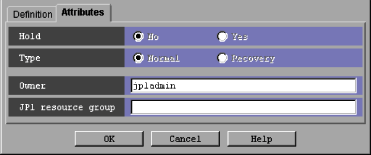

The following figure shows the Attributes page in the Define Details - [Manager Job Group] dialog box.

Figure 15-29 Attributes page in the Define Details - [Manager Job Group] dialog box

The following explains the displayed items.

Hold

You cannot select this item for a manager job group.

Type

You cannot select this item for a manager job group.

Owner

Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.

JP1 resource group

Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscore (_). The default is the JP1 resource group name of the upper-level unit. If you specify a blank, you are not authorized to access this group.
