This subsection explains the statuses that the business scopes and AJS3 unit monitored objects acquire.
- Organization of this subsection
- (1) Statuses of AJS3 unit monitored objects
- (2) Statuses of business scopes
- (3) Relationship between the operation on JP1/AJS3 Console Agent and the status acquirement
(1) Statuses of AJS3 unit monitored objects
The following statuses are displayed as the status of AJS3 unit monitored object.
(a) List of acquired statuses
The following table shows the statuses of AJS3 unit monitored objects that JP1/AJS3 Console Manager and JP1/AJS3 Console Agent notify of and the default icon display colors.
Table 13-3 Statuses of AJS3 unit monitored object and default display colors
No. Status name Default display color 1 Not registered Not specified 2 Wait for starting time Sky blue 3 Hold plan#1 Yellow 4 Being held Yellow 5 Not sched. to exe. Gray 6 Now running Green 7 Running+Warning Red 8 Running+Abend Red 9 Ended normally Light green 10 Ended with warning Light red 11 Ended abnormally Light red 12 Interrupted Light red 13 Killed Light red 14 Invalid exe.seq. Light red 15 Skipped so not exe. Gray 16 Blocked Brown 17 Now monitoring Green 18 Wait for start cond. Sky blue 19 Unmonitored+Ended Gray 20 Monitor-end normal Light green 21 Monitor terminated Light red 22 Interrupted monitoring Light green 23 No status#2 Not specified 24 Unrecognizable#3 Gray 25 Unknown#4 Red
- #1
- The color for representing Hold plan is displayed only when the Display option is selected for Hold plan in the Monitoring Properties dialog box. For the status, only the color indicates the status while the status name is not displayed.
- #2
- Indicates that no status has been notified from JP1/AJS3 Console Agent.
- #3
- Indicates that JP1/AJS3 Console Manager and JP1/AJS3 Console View cannot determine the status of the monitored jobnet.
- #4
- Indicates one of the following statuses:
- The monitored jobnet is not a root jobnet.
- The monitored host cannot be connected because of an invalid host name.
- The monitored jobnet does not exist.
- No right to reference the monitored jobnet.
- No right to for access the upper-level unit of the monitored jobnet.
- No status can be acquired because the maintenance of the monitored scheduler service is in progress.
- The monitored host cannot connect to the authentication server.
- The status cannot be acquired because JP1/AJS3 Console Agent has not started.
- JP1/AJS3 Console Manager cannot connect to JP1/AJS3 Console Agent.
- Trouble occurred on JP1/AJS3 Console Agent that prevented acquiring the status.
- When Unknown is displayed, you can check the cause in the Detail Information - [AJS3 Unit Monitored Objects] dialog box.
(b) Delay statuses
JP1/AJS3 Console can also monitor the delay status of AJS3 unit monitored object. The delay status of AJS3 unit monitored object is displayed in parentheses following the status name shown in the table above, Statuses of AJS3 unit monitored object and default display colors. (For example: Now running (Delayed start) )
The delay statuses of AJS3 unit monitored object are:
- Delayed end
- Delayed start
- Nested jobnet delayed end
- Nested jobnet delayed start
(2) Statuses of business scopes
The following statuses are displayed as the status of a business scope.
(a) Acquired statuses and priority
The status of business scope notified by JP1/AJS3 Console Manager and the default icon display colors are the same as those for AJS3 unit monitored objects. However, for the business scopes, Hold plan is not displayed in color. When no object exists under the business scope, the status of the business scope becomes No status status.
The status displayed has the highest priority among the lower-level business scopes and AJS3 unit monitored objects. The following table shows the priority of statuses.
Table 13-4 Priority of statuses of business scope
Priority Status 1 Unknown 2 Shutdown 3 Running+Abend 4 Ended abnormally 5 Killed 6 Interrupted 7 Invalid exe. seq. 8 Running+Warning 9 Ended with warning 10 Being held 11 Now running 12 Wait for start cond. 13 Now monitoring 14 Wait for start time 15 Skipped so not exe. 16 Unmonitored+Ended 17 Monitor terminated 18 Interrupted monitoring 19 Ended normally 20 Monitor-end normal 21 Not shed. to exe. 22 Not registered 23 Unrecognizable 24 No status (b) Priority of delay statuses
JP1/AJS3 Console can also monitor the delay status of a business scope. The delay statuses of a business scope are the same as those for AJS3 unit monitored objects.
The delay status displayed has the highest priority among the lower-level business scopes and the AJS3 unit monitored objects. The following table shows the priority of delay statuses. Without any unit under the business scope, Not delayed is displayed.
Table 13-5 Priority of delay statuses of a business scope
Priority Status 1 Delayed end 2 Nested jobnet delayed end 3 Delayed start 4 Nested jobnet delayed start 5 Not delayed (c) Display example of status of a business scope

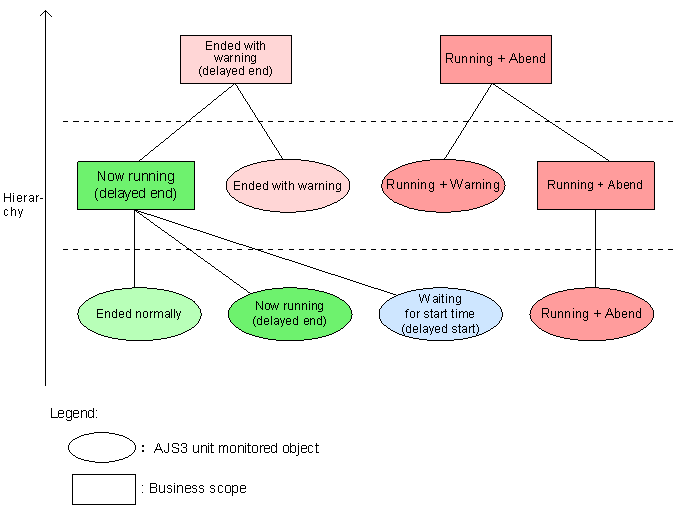

The following figure shows an example of status display of a business scope.
Figure 13-12 Display example of status of a business scope
- The status of the upper-level business scope is displayed based on the priority by merging the statuses of the lower-level business scopes and AJS3 unit monitored objects.
- Cautionary notes
- On acquiring the status, if the connection to the authentication server failed, the status of a monitored object, which requires an authority check and whose status acquirement has not been completed, becomes Unknown status. Additionally the message "KAVS1005-E Cannot connect to Access Control Server" is displayed for Information in the Detail Information - [AJS3 Unit Monitored Objects] dialog box.
- When some monitored objects require the authority check, the connection to the authentication server is tried at the monitoring interval. When the connection to the authentication server fails because the server has stopped or for other causes, it takes time until the connection request to the authentication server is timed out. It may take time until the status acquirement is completed.
(3) Relationship between the operation on JP1/AJS3 Console Agent and the status acquirement
The following explains the relationship between the operation on JP1/AJS3 Console Agent and the status acquirement.
- When the monitoring interval elapsed during operation:
The status is not acquired.
- When the monitoring interval has already elapsed from the previous status acquirement at completion of operation:
The statuses of all monitored objects on the JP1/AJS3 Console Agent host are immediately acquired.
- When the operation was done during the status acquirement:
The status acquirement is interrupted.
