This subsection describes how to define the applications that are to be monitored.
Defining the applications that are to be monitored consists of the following two main steps:
- Step 1
- Define a business scope.
- Step 2
- Define the AJS3 unit monitored objects.
Define FukuokaBranch OrderProcessing as the business scope for grouping the applications of the Fukuoka branch. Define jobnets Daily_Order_Processing, Weekly_Order_Processing, and Monthly_Order_Processing as AJS3 unit monitored objects.
In addition, for both Osaka and Sendai branches, define monitored applications in the same manner as you defined for the Fukuoka branch.
- Organization of this subsection
- (1) Defining a business scope
- (2) Defining an AJS3 unit monitored object
(1) Defining a business scope
To define business scope FukuokaBranch OrderProcessing:
- Drag a business scope icon from the icon list, and then drop it in the map area.
The system displays the Define Details - [Business Scope] dialog box.
- Define the object name.
See the following for the items to be entered in the Define Details - [Business Scope] dialog box.

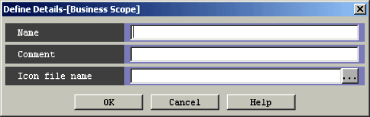

Figure 12-5 Define Details - [Business Scope] dialog box
- Name
- Enter the name of the business scope. In this example, type FukuokaBranch OrderProcessing. This name is used for the monitored object on the Main Scope window.
- Click the OK button.
The Define Details - [Business Scope] dialog box is closed.
Business scope FukuokaBranch OrderProcessing is defined in the map area.
(2) Defining an AJS3 unit monitored object
To define Daily_Order_Processing, Weekly_Order_Processing, and Monthly_Order_Processing as AJS3 unit monitored objects:
- In the tree area, click business scope FukuokaBranch OrderProcessing, which will manage the AJS3 unit monitored objects to be defined.
Business scope FukuokaBranch OrderProcessing is now highlighted.
- From the icon list, drag the AJS3 unit monitored object
, and then drop it in the map area.
The Define Details - [AJS3 Unit Monitored Objects] dialog box appears.
The following figure shows how to manipulate an AJS3 unit monitored object.

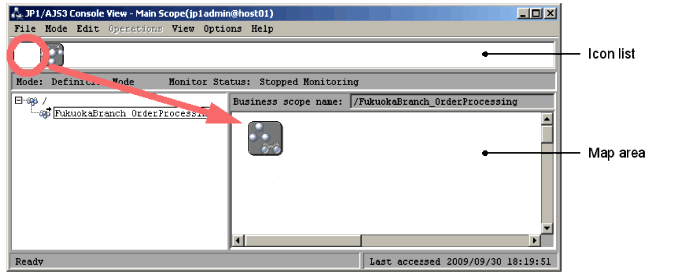

Figure 12-6 Drag and drop the AJS3 unit monitored object
- Define the information required for the AJS3 unit monitored object.
See the following for the items to be entered in the Define Details - [AJS3 Unit Monitored Objects] dialog box.

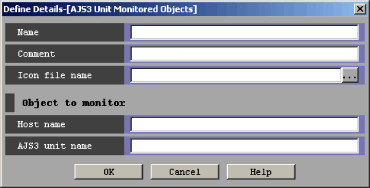

Figure 12-7 Define Details - [AJS3 Unit Monitored Objects] dialog box
- Name
- Enter the name of the AJS3 unit monitored object. In this example, enter Day_Surveillance.
- Host name
- Enter the name of the manager host (JP1/AJS3 Manager host) to be monitored. Enter host2 in this example.
- AJS3 unit name
- Enter the name of the root jobnet of the host to be monitored using the fully qualified unit name. Enter AJSROOT1:/FukuokaBranch OrderProcessing in this example.
- Click the OK button.
- Repeat steps 1 to 4 for Weekly_Order_Processing and Monthly_Order_Processing.
- Supplementary note
- You can create AJS3 unit monitored objects automatically.
- To create an AJS3 unit monitored object:
- Select a root jobnet to be monitored in the JP1/AJS3 - View window, and then select Options, and then Save As Monitored Object.
- Choose Edit, and then Auto-create Monitored Objects in the Main Scope window.
