2.3.1 Logging in to JP1/AJS3 - Manager from JP1/AJS3 - View

Perform the following procedure to log in to JP1/AJS3 - Manager from JP1/AJS3 - View.

  1. From the Start menu of Windows, choose Programs, JP1_Automatic Job Management System 3 - View, and then Job System Operation.
    The following Login screen appears.

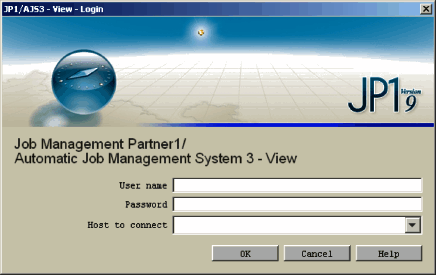

    Figure 2-2 Login screen

    [Figure]

  2. Enter the information required to log into JP1/AJS3 - Manager.
    Enter the following:

    User name
    Enter the name of the JP1 user who is to log into JP1/AJS3 - Manager.

    Password
    Enter the password of the JP1 user who is to log into JP1/AJS3 - Manager.

    Host to connect
    Enter the name of the JP1/AJS3 - Manager host the user logs into.

  3. Click the OK button.
    The following JP1/AJS3 - View window (Main window) appears.

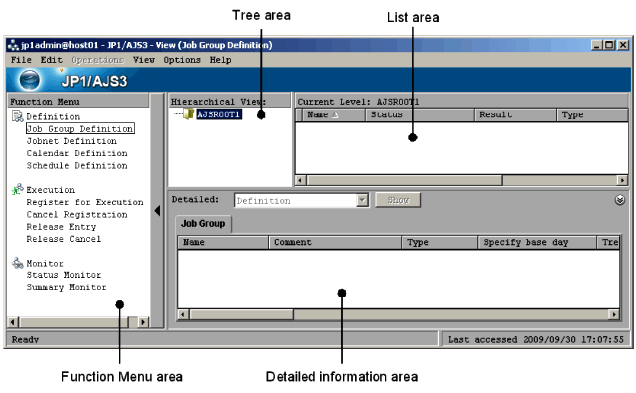

    Figure 2-3 JP1/AJS3 - View window (Main window) at startup

    [Figure]

    In the tree area, the AJSROOT1 job group is displayed.
