4.5.5 Adding display items to a window

You can add display items (columns) to the following areas in JP1/AJS3 - View:

List area in the JP1/AJS3 - View window

Execution result list in the Daily Schedule window

Execution result list in the Monthly Schedule window

You can add items to these windows that you would otherwise have to check in another window or in the Monitor Details dialog box. This makes monitoring work more efficient.

The following table lists display items you can add to windows:

Table 4-20 Display items that can be added to windows

Window name Display items (columns) you can add

JP1/AJS3 - View window

Start time (Status)

Start time (Result)

Rerun start time (Status)

Rerun start time (Result)

End time (Status)

End time (Result)

Execution type (Status)

Execution type (Result)

Start condition (Status)

Start condition (Result)

Process time (Status)

Process time (Result)

Time when start delayed (Status)

Time when start delayed (Result)

Time when end delayed (Status)

Time when end delayed (Result)

Execution ID (Status)

Execution ID (Result)

Change plan (Status)

Change plan (Result)

Daily Schedule window
Monthly Schedule window

Type

Comment

Rerun start time

Execution type

Start condition

Process time

Start delay time

End delay time

Execution ID

Change plan

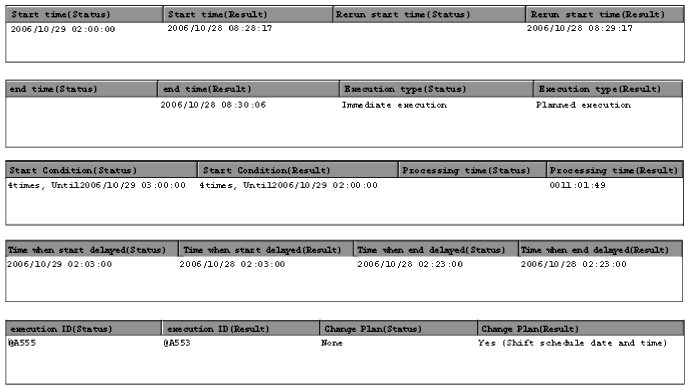

The following figure shows an example of display items added to a list or execution result list.

Figure 4-4 Example of a window with additional display items

For details about how to change the display items, see 11.4.5 Specifying the columns displayed in the list area in the Job Management Partner 1/Automatic Job Management System 3 Operator's Guide.

For details about the dialog box, see 15.3.40 Display Item Setup dialog box in the Job Management Partner 1/Automatic Job Management System 3 Operator's Guide.

Window name	Display items (columns) you can add
JP1/AJS3 - View window	Start time (Status) Start time (Result) Rerun start time (Status) Rerun start time (Result) End time (Status) End time (Result) Execution type (Status) Execution type (Result) Start condition (Status) Start condition (Result) Process time (Status) Process time (Result) Time when start delayed (Status) Time when start delayed (Result) Time when end delayed (Status) Time when end delayed (Result) Execution ID (Status) Execution ID (Result) Change plan (Status) Change plan (Result)
Daily Schedule window Monthly Schedule window	Type Comment Rerun start time Execution type Start condition Process time Start delay time End delay time Execution ID Change plan
