2.3.1 Connecting multiple LANs

JP1/AJS3 supports system configurations where JP1/AJS3 - Manager, JP1/AJS3 - Agent, or JP1/AJS3 - View is installed in a server (host) and multiple LANs are connected to this server (host).

For details about the communication settings for using JP1/AJS3 with multiple LANs connected, see 2.3.3 Example configurations with multiple LANs and their communications settings.

The following figure shows an example of a system configuration in which multiple LANs are connected.

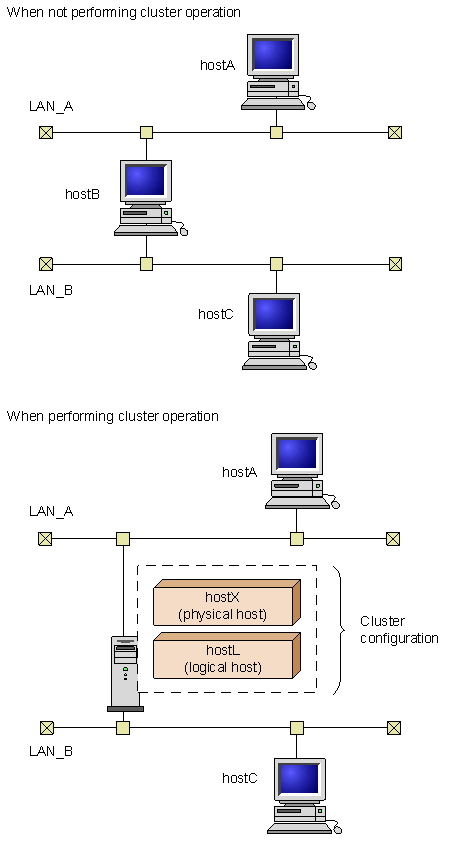

Figure 2-13 Example of a system configuration with multiple LANs connected

[Figure]
