Job Management Partner 1/Automatic Job Management System 3 Overview

8.3 User management using JP1/AJS3 Console

To use JP1/AJS3 Console to monitor applications you must first perform the following:

Register in the authentication server the JP1 user or users who log in with JP1/AJS3 Console.

Set the access permission levels for the target units you want to monitor.

Carry out user mapping at the monitoring target host (the JP1/AJS3 - Manager host where the target units for monitoring are defined).

An example of user management using JP1/AJS3 Console is shown in the following figure.

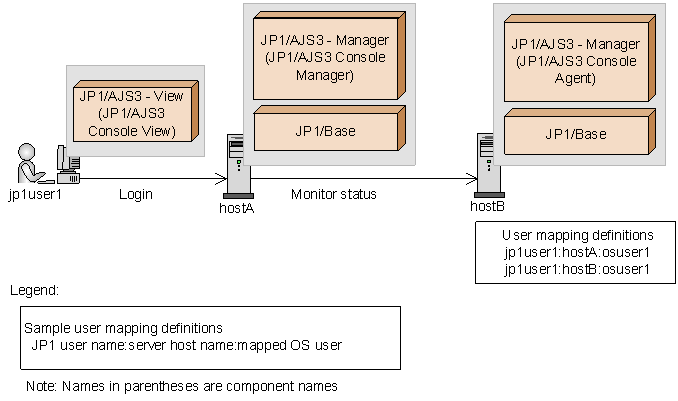

Figure 8-3 User management using JP1/AJS3 Console

To enable a JP1 user called jp1user1 to use JP1/AJS3 Console to monitor a jobnet, perform the following:

Register jp1user1 in the authentication server.

Set the access permission (the JP1 resource group and the JP1 permission level) required to monitor the status of the target unit, or carry out operations on the target unit.

Carry out user mapping at the monitoring target host (HostB) to map OS users to jp1user1 specifying HostA as the server host.

Supplementary note

If you do not want to monitor jobnets defined on the JP1/AJS3 Console Manager host, there is no need to carry out user mapping at the JP1/AJS3 Console Manager host. If the authentication bloc of the JP1/AJS3 Console Manager host and the JP1/AJS3 Console Agent host differ, there is no need to set JP1 permission levels in the authentication server at the JP1/AJS3 Console Manager host.

For more details on user management using JP1/AJS3 Console, see 6.6 User management when monitoring work tasks centrally in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.
