4.5.11 Rerunning a job or jobnet

You can specify the execution results of a jobnet or job that has completed execution, and rerun it.

For details about rerunning a jobnet when the execution sequence of the root jobnet is controlled using a jobnet connector, see 2.2.4(5) Re-execution of jobnet connectors and connection-destination jobnets in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

There are two methods of rerunning a job or jobnet. You can rerun the root jobnet, or rerun a nested jobnet or job. These methods are described below.

You can perform this operation using either the GUI, or the ajsrerun command. For details on using the GUI, see 9.11 Re-executing jobnets and jobs in the Job Management Partner 1/Automatic Job Management System 3 Operator's Guide. Alternatively, for details on the ajsrerun command, see the description of ajsrerun in 2. Commands in the manual Job Management Partner 1/Automatic Job Management System 3 Command Reference 1.

Organization of this subsection

(1) Rerun the root jobnet

(2) Rerun a nested jobnet or job

(3) The job preceding a judgment job ended abnormally

(4) Re-executing the dependent job of a judgment job

(5) Notes about rerunning jobnets or jobs

(6) Notes on resuming processing while a recovery job is running

(7) Notes on re-executing a jobnet with start conditions

(1) Rerun the root jobnet

You can choose one of the following rerun methods when you rerun a root jobnet.

From abnormally ended job

This method reruns from an abnormally ended job. If the rerun job ends normally, succeeding jobs are executed and processing continues.

When a nested jobnet has ended abnormally, you can rerun from the specific job in the nested jobnet that ended abnormally.

From after abnormally ended job

This method reruns from the job that follows the abnormally ended job.

When a nested jobnet has ended abnormally, you can rerun from the job that follows the job that ended abnormally in the nested jobnet.

From abnormally ended jobnet

This method reruns from the beginning of an abnormally ended nested jobnet.

When you rerun from an abnormally ended jobnet, the jobs that ended normally in the jobnet also rerun.

If you rerun from an abnormally ended job, jobs that ended normally before the abnormally ended job are not rerun.

From top of jobnet

This method reruns from the top of the root jobnet.

Only jobs that ended with warning

This method reruns only jobs that ended with a warning. When a nested jobnet is defined, you can rerun the jobs that ended with a warning in the nested jobnet.

(2) Rerun a nested jobnet or job

You can choose from the following methods to rerun a nested jobnet or job.

From the specified jobnet or job

This method reruns from the specified jobnet or job. If the rerun jobnet or job ends normally, succeeding jobs are executed and processing continues.

From the job after the specified jobnet or job

This method reruns from the job that follows the specified job or nested jobnet.

Only the specified jobnet or job

This method reruns only the specified job or nested jobnet.

Rerunning a jobnet or job results in an error in the following cases:

The status level of the job or jobnet you attempt to rerun is Now running, Running + Abend, Running + Warning, Waiting for prev. to end, Waiting for start time, or Being held.

The preceding jobnet or job ended normally or with a warning, and the jobnet or job you attempt to rerun is a recovery jobnet or recovery job

The jobnet or job you attempt to rerun is a judgment job or a subordinate unit in a judgment job

When the job or jobnet that you attempted to re-execute has the recovery attribute, and the preceding job or jobnet ended normally or with a warning

When the job or jobnet that you attempted to re-execute is a judgment job or a subordinate unit of a judgment job

When the upper-level jobnet of the job or jobnet that you attempted to re-execute does not have a schedule

In the following cases, attempting to execute a job or jobnet does not result in an error but they will not execute:

When execution of the job to be re-executed is canceled

When the jobnet that you attempted to re-execute does not have a schedule, even though its upper-level jobnet does have a schedule

(3) The job preceding a judgment job ended abnormally

When the job preceding a judgment job ends abnormally, you can rerun jobnets or jobs from the root jobnet as follows.

From abnormally ended job

From after abnormally ended job^#

From abnormally ended jobnet

From top

From any job or jobnet (excludes dependent jobs and jobnets)

Only jobs that ended with warning

# Procedure for rerunning a jobnet from the job after the job that ended abnormally

When a job preceding a judgment job ends abnormally, if you rerun the jobnet from the next job, the status of the job that ended abnormally changes to Ended normally. The process continues from the next judgment job.

When the judgment job makes a judgment using the return code of the preceding job, it uses the return code from when the preceding job ended abnormally.

(4) Re-executing the dependent job of a judgment job

The execution of the dependent job of a judgment job depends on the execution result of the judgment job. You might want to re-execute the dependent job if it terminates abnormally, but the method for re-executing a dependent job differs from that for executing ordinary jobs.

When an ordinary job (PC job or Unix job) has terminated abnormally, you can select and re-execute the job. However, if a dependent job of a judgment job has terminated abnormally, you cannot re-execute it by selecting it or the judgment job. To re-execute a dependent job, select and re-execute the upper-level jobnet.

(5) Notes about rerunning jobnets or jobs

Take note of the following when you rerun a jobnet or job.

Processes from before the rerun have still not ended
When you rerun a jobnet from a specific job, the rerun job may catch up with a job that started before the rerun and still has active processes. In this case, start the rerun job after the preceding job ends.

Result information for a job before the rerun
When you rerun a job, the result information for the job (execution start time, execution end time, status, code) is updated to reflect the results of the rerun. However, the information in the standard output file and the standard error output file is retained.

Changing the status of a jobnet or job that precedes the rerun jobnet
If the status of the preceding jobnet or job was Ended abnormally, Killed, Failed to start, Unknown end status, or Not executed + Ended, on rerunning the status is forcibly changed to Ended normally, Ended with warning, or Bypassed. The following table details these changes.

Table 4-6 Status change of units

No. Status of preceding unit Does the status apply?^#1 After status of preceding unit is changed

Jobnet Job Set skipped jobs to warning?

Root Nested Yes No

1 Not sched. to exe. Y Y Y Not sched. to exe. Not sched. to exe.

2 Waiting for start time Y Y N Waiting for start time Waiting for start time

3 Waiting for prev. to end N Y Y Waiting for prev. to end Waiting for prev. to end

4 Being held Y Y Y Being held Being held

5 Waiting to execute N N Y Waiting to execute Waiting to execute

6 Now queuing N N Y Now queuing Now queuing

7 Not executed + Ended [-W] N Y Y Ended with warning Bypassed

8 Bypassed N Y Y Bypassed Bypassed

9 Now running Y Y Y Now running Now running

10 Running + Warning Y Y N Running + Warning Running + Warning

11 Running + Abend Y Y N Running + Abend Running + Abend

12 Ended normally Y Y Y Ended normally Ended normally

13 Ended with warning Y Y Y Ended with warning Ended with warning

14 Ended abnormally [-WR] Y Y Y Ended with warning Ended normally

15 Skipped so not exe. Y Y N Ended with warning Bypassed

16 Invalid exe. seq. Y Y N Ended with warning Ended normally

17 Interrupted Y Y N V5: Ended with warning^#2
V6: Interrupted^#2 V5: Ended with warning^#2
V6: Interrupted^#2

18 Killed [-WR] Y Y Y Ended with warning Ended normally

19 Failed to start [-WR] N N Y Ended with warning Ended normally

20 Unknown end status [-WR] N N Y Ended with warning Ended normally

21 Shutdown Y Y Y N/P N/P

22 Normal end + False N N Y Normal end + False Normal end + False

23 Wait for start cond. Y Y^#3 N N/P N/P

24 Now monitoring Y Y^#3 N N/P N/P

25 Unmonitored + Ended Y Y^#3 N N/P N/P

26 Monitor terminated Y Y^#3 N N/P N/P

27 Interrupted monitoring Y Y^#3 Y^#3 N/P N/P

28 Monitor-end normal Y Y^#3 N N/P N/P

29 Start delay Y Y^#3 N ^#4 ^#4

30 End delay Y Y Y ^#4 ^#4

31 Nested jobnet delayed start Y Y N ^#4 ^#4

32 Nested jobnet delayed end Y Y N ^#4 ^#4

Legend:

Root: Root jobnet

Nested: Nested jobnet

Y: Applies

N: Does not apply

N/P: Rerun is not possible (an error message is output)

Note

Numbers 1 to 6 indicate the status when the upper-level jobnet is terminated before the preceding unit is rerun.

#1

Indicates whether each type of unit can enter the indicated status.

#2

Partial rerunning of an interrupted unit depends on the setting (V5 or V6) of the environment parameter VRSHIFT_INTRERUN. It is set to V6 by default. The table shows the status for each setting.

#3

Since this status only applies to a start condition (.CONDITION) or an event icon in a start condition, the unit cannot be a preceding unit.

#4

Delay is additional information relating to the unit status. Therefore, the delay status does not change even if the succeeding unit is rerun.

When rerunning the succeeding unit of a unit that has terminated abnormally
If a unit has terminated abnormally, all the succeeding units other then recovery units move to the Not executed + Ended status. The status is changed unit by unit in the order in which the units are linked with relation lines. Accordingly, when you rerun the succeeding unit of the abnormally terminated unit, the status of the succeeding unit might not move from the Waiting for prev. to end status to the Not executed + Ended status, depending on the timing. Before you attempt to rerun the succeeding unit of the abnormally terminated unit, wait until all the succeeding units are placed in the Not executed + Ended status. You must be especially careful when you rerun the succeeding unit from a recovery job.
If you rerun the succeeding unit of an abnormally terminated unit when the succeeding unit is in the Wait for prev. to end status, the following problems might occur:

An attempt to rerun the unit fails
This problem occurs when the unit to be rerun is still in the Wait for prev. to end status.

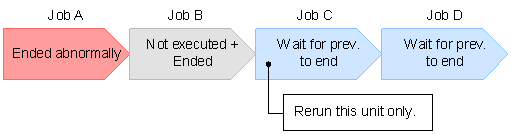

Figure 4-32 When the unit in the Wait for prev. to end status is rerun

Job C is in the Wait for prev. to end status and therefore cannot be rerun. Wait until Job C moves to the Not executed + Ended status, and then rerun it.

An attempt is made to rerun only the specified unit, but succeeding units are also run
This problem occurs when you rerun a unit in the Not executed + Ended status while another unit is in the Wait for prev. to end status, resulting in no preceding units in the Ended abnormally status.

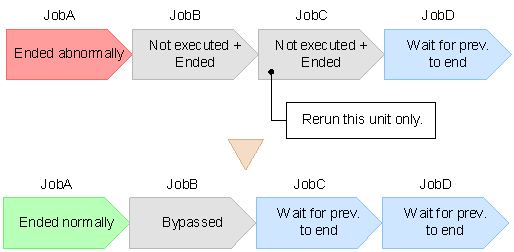

Figure 4-33 When the succeeding job has a unit in the Wait for prev. to end status

When Job C in the Not executed + Ended status is rerun, Job C moves to the Wait for prev. to end status, Job A moves to the Ended normally status, and Job B moves to the Bypassed status. Because none of the preceding units for Job D are in the Ended abnormally status, Job D does not move to the Not executed + Ended status, and will therefore run after Job C is rerun.

When concurrent execution is disabled
If you rerun a jobnet for which concurrent execution is disabled while another generation of the jobnet is running, the status of the re-executed generation changes to Waiting for start time and it is executed when the other generation finishes.
In the same circumstances but with concurrent execution enabled, the jobnet is re-executed immediately.

When Schedule skip is set as the schedule option
If you rerun a jobnet that has Schedule skip set as its schedule option, and the next scheduled start time arrives while the rerun is in progress, the next schedule will not be skipped but will be executed after the rerun finishes. The Schedule skip option applies only when the next start time arrives and the preceding generation was executed at its scheduled start time. For details about skipping a schedule, see 3.3.3(2) Schedule option.

When rerunning a root jobnet or preceding unit as the result of a judgment job
Take care when rerunning a root jobnet or preceding unit as the result of a judgment job. For details, see 2.4.3 Dynamically changing a process depending on the result of a preceding job (example of defining a jobnet that uses a judgment job) in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

No.	Status of preceding unit	Does the status apply?^#1	After status of preceding unit is changed
Jobnet	Job	Set skipped jobs to warning?
Root	Nested	Yes	No
1	Not sched. to exe.	Y	Y	Y	Not sched. to exe.	Not sched. to exe.
2	Waiting for start time	Y	Y	N	Waiting for start time	Waiting for start time
3	Waiting for prev. to end	N	Y	Y	Waiting for prev. to end	Waiting for prev. to end
4	Being held	Y	Y	Y	Being held	Being held
5	Waiting to execute	N	N	Y	Waiting to execute	Waiting to execute
6	Now queuing	N	N	Y	Now queuing	Now queuing
7	Not executed + Ended [-W]	N	Y	Y	Ended with warning	Bypassed
8	Bypassed	N	Y	Y	Bypassed	Bypassed
9	Now running	Y	Y	Y	Now running	Now running
10	Running + Warning	Y	Y	N	Running + Warning	Running + Warning
11	Running + Abend	Y	Y	N	Running + Abend	Running + Abend
12	Ended normally	Y	Y	Y	Ended normally	Ended normally
13	Ended with warning	Y	Y	Y	Ended with warning	Ended with warning
14	Ended abnormally [-WR]	Y	Y	Y	Ended with warning	Ended normally
15	Skipped so not exe.	Y	Y	N	Ended with warning	Bypassed
16	Invalid exe. seq.	Y	Y	N	Ended with warning	Ended normally
17	Interrupted	Y	Y	N	V5: Ended with warning^#2 V6: Interrupted^#2	V5: Ended with warning^#2 V6: Interrupted^#2
18	Killed [-WR]	Y	Y	Y	Ended with warning	Ended normally
19	Failed to start [-WR]	N	N	Y	Ended with warning	Ended normally
20	Unknown end status [-WR]	N	N	Y	Ended with warning	Ended normally
21	Shutdown	Y	Y	Y	N/P	N/P
22	Normal end + False	N	N	Y	Normal end + False	Normal end + False
23	Wait for start cond.	Y	Y^#3	N	N/P	N/P
24	Now monitoring	Y	Y^#3	N	N/P	N/P
25	Unmonitored + Ended	Y	Y^#3	N	N/P	N/P
26	Monitor terminated	Y	Y^#3	N	N/P	N/P
27	Interrupted monitoring	Y	Y^#3	Y^#3	N/P	N/P
28	Monitor-end normal	Y	Y^#3	N	N/P	N/P
29	Start delay	Y	Y^#3	N	^#4	^#4
30	End delay	Y	Y	Y	^#4	^#4
31	Nested jobnet delayed start	Y	Y	N	^#4	^#4
32	Nested jobnet delayed end	Y	Y	N	^#4	^#4

(6) Notes on resuming processing while a recovery job is running

If a job has terminated abnormally, JP1/AJS3 starts a sequence of recovery jobs or jobnets. However, if you resume the processing from the job after the abnormally terminated one, the rest of the recovery jobs or jobnets will be placed in the Not executed + Ended status and will not be executed. In this case, resume processing after all recovery processes have been performed.

If you want to resume the subsequent jobs even when an error is detected, consider whether you can use a judgment job to perform recovery with a dependent job when the termination code of the judgment job has exceeded a threshold.

(7) Notes on re-executing a jobnet with start conditions

When monitoring of start conditions for a root jobnet is completed and the jobnet status changes from Now monitoring to any of the following statuses, the status of the lower-level units becomes Not executed + Ended.

Unmonitored + Ended

Monitor terminated

Monitor-end normal

Because the Not executed + Ended status is treated as an abnormal termination, be careful when you re-execute a generation of a jobnet that has any of the following statuses:
