4.4.1 Checking a jobnet schedule

You can check the schedule of a jobnet registered for execution in the following JP1/AJS3 - View windows:

Daily Schedule window (Hierarchical View or All Jobs)

Monthly Schedule window

The following provides a brief introduction to checking schedules in these two windows. For details on window operations, see the Job Management Partner 1/Automatic Job Management System 3 Operator's Guide.

Organization of this subsection

(1) Checking schedules in the Daily Schedule window

(2) Checking schedules in the Monthly Schedule window

(1) Checking schedules in the Daily Schedule window

In the Daily Schedule window, you can check the execution schedules, status, and results of the jobnets and jobs scheduled for a specific day.

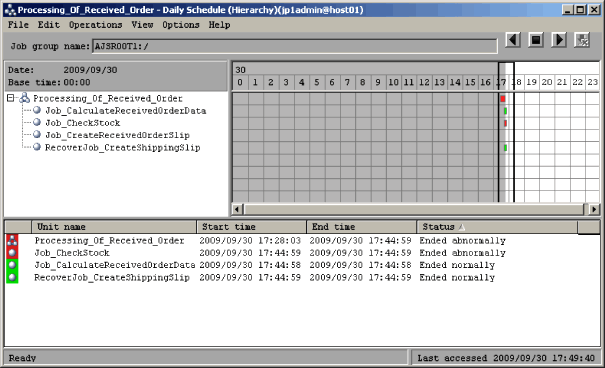

The following figure shows the Daily Schedule [Hierarchy] window.

Figure 4-17 Daily Schedule [Hierarchy] window

The Daily Schedule [Hierarchy] window is divided into hours of the day. Here you can check the daily schedules, their execution status and results. In the schedule area, the gray part shows past schedules and the white part shows future schedules. When you click a unit schedule in the gray area, the execution result list displays detailed information about that unit's execution results or status. When you click a schedule in the white area, you can view detailed information about that unit's execution schedule. But generations without execution IDs do not appear in the execution result list.

The execution result list shows the start time and end time of each of the listed units. For details on the start and end times appearing here, see 4.4.2(2) Execution simulation.

By double-clicking on a schedule in the schedule area, or on a unit in the execution result list, you can view a detailed schedule for that unit.

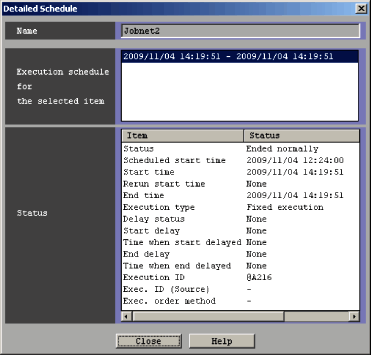

The following figure shows the Detailed Schedule window.

Figure 4-18 Detailed Schedule dialog box

(2) Checking schedules in the Monthly Schedule window

In the Monthly Schedule window, you can check the execution schedules, status, and results of the jobnets and jobs scheduled for a specific month.

A square appearing in the schedule area indicates a dummy schedule (an execution schedule that has not been finalized) for a jobnet registered for planned execution or for fixed execution with a specified generation count. Circles indicate the finalized execution schedules for a jobnet registered for period-based fixed execution, or execution schedules corresponding to the generation count specified for generation-based fixed execution.

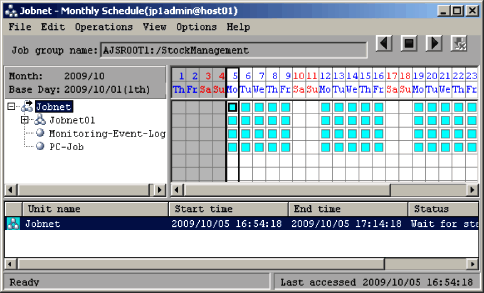

The following figure shows the Monthly Schedule window.

Figure 4-19 Monthly Schedule window

The Monthly Schedule window shows the date and the day of the week for each day of the month. Here you can check the schedules for each unit during the month, their scheduled times and execution status. In the schedule area, the gray part shows past schedules and the white part shows future schedules. When you click a unit schedule in the gray area, the execution result list displays detailed information about that unit's execution results or status. When you click a schedule in the white area, you can view detailed information about that unit's execution schedule. Generations without execution IDs do not appear in the execution result list.

The execution result list shows the start time and end time of each of the listed units. For details on the start and end times appearing here, see 4.4.2(2) Execution simulation.

You can view a detailed schedule for a unit by double-clicking a schedule name in the schedule area or a unit name in the execution result list. For the Detailed Schedule dialog box, see Figure 4-18.
