1.2.1 Overview of JP1/AJS3 functions

The following table summarizes the programs and functions that constitute JP1/AJS3. JP1/AJS3 uses these functions in combination to control job execution.

Table 1-1 JP1/AJS3 functions

Program Function Summary
JP1/AJS3 - Manager System management control
  • Management of services, processes, and environment settings
Scheduler control
  • Execution schedule management
  • Execution sequence control using a jobnet
Agent management control
  • Execution agent management
Job execution control
  • Job transfer and status management (Manager)
  • Job execution (Agent)
Submit job execution control
  • Job management using queuing (Manager)
Event/action control
  • Management of event monitoring status (Manager)
  • Event monitoring (Agent)
Embedded database control
  • The relational database that stores jobnet definitions, execution agent definitions, and other information
JP1/AJS3 - Agent Job execution control
  • Job execution (Agent)
Event/action control
  • Event monitoring (Agent)
JP1/AJS3 - View View control
  • Job and jobnet definitions
  • Job and jobnet scheduling and execution status display

The following figure shows the functions provided by JP1/AJS3 and their inter-relationships.

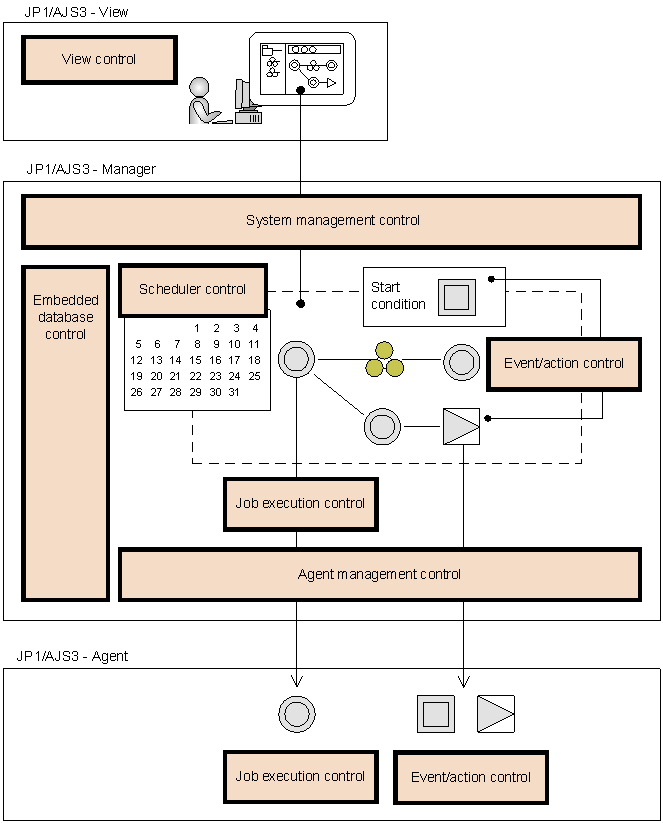

Figure 1-7 JP1/AJS3 functions

[Figure]
