10.2.2 Trace log for issued JP1 events

The trace log for issued JP1 events is used to output the conversion results when NNMi incidents are converted into JP1 events. You can use this log to obtain the results of filtering by the filter conditional statements in the NNMi incident forwarding filter definition file and to obtain the JP1 event issuance status.

The default output destinations for trace logs for issued JP1 events are as follows:

In Windows:
  • Physical host: EG-for-NNMi-path\log\jegnevent{1|2|3|4}.log
  • Logical host: shared-folder\JP1EG4NNMI\log\jegnevent{1|2|3|4}.log

In UNIX:
  • Physical host: /var/opt/jp1eg4nnmi/log/jegnevent{1|2|3|4}.log
  • Logical host: shared-directory/jp1eg4nnmi/log/jegnevent{1|2|3|4}.log

You can use any text editor to view the trace logs for issued JP1 events. The following shows an output example of trace log information for issued JP1 events.

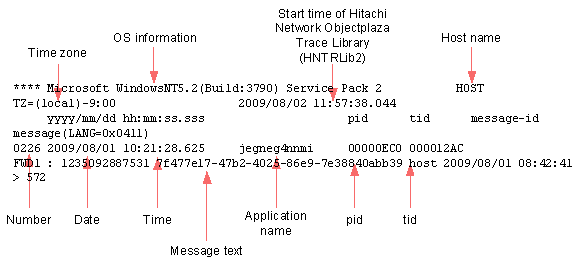

Figure 10-2 Output example of trace log information for issued JP1 events

[Figure]

The tables below list and describe the header information and output items that are output to the trace logs for issued JP1 events.

Table 10-3 Header information in the trace log for issued JP1 events

Header information Description
OS information Information about the OS on which the trace function of JP1/IM - EG for NNMi is running
Host name Name of the host at which the trace function of JP1/IM - EG for NNMi is running
Time zone

In Windows:
Time zone of the OS

In UNIX:
Value of the TZ environment variable for the trace process.
If the TZ environment variable has not been set, Unknown is displayed.
Trace function start time Time the trace function of JP1/IM - EG for NNMi started

Table 10-4 Output items in the trace log for issued JP1 events

Output item Description
Number Trace record number (4 digits)
This number is assigned to each process that outputs log information.
Date Trace acquisition date: yyyy/mm/dd (year/month/date)
Time Trace acquisition time (local time): hh:mm:ss.sss (hour:minute:second.millisecond)
Application name Name that identifies the application (application ID name)
JP1/IM - EG for NNMi outputs the following application names:
  • JP1/IM - EG for NNMi service
    jegneg4nnmi
  • Process management
    JEGN_SPMD
pid Process ID (assigned by the OS)
tid Thread ID (used for identifying threads)
Message text Message text that is output to the trace log for issued JP1 events
This is a message text output by this product.

Format of message text
The following shows the format of the message texts that are output to the trace log for issued JP1 events:
conversion-result[Figure]:[Figure]acquisition-request-date-and-time[Figure]UUID[Figure]source-node-name[Figure]creation-date-and-time[Figure]>[Figure]event-database-number
[Figure] indicates one or more consecutive spaces or tabs.
The following shows an output example of a message text.

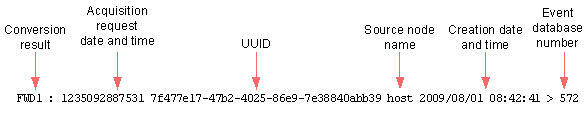

Figure 10-3 Output example of a message text in the trace log for issued JP1 events

[Figure]

The following table describes the items in the message text.

Table 10-5 Items in the message text in the trace log for issued JP1 events

Item Description
Conversion result Result of converting an NNMi incident into a JP1 event:

FWDn
Indicates that the NNMi incident was converted into a JP1 event because filter conditional statement n specified in the forwarding condition block were satisfied.

EXC
Indicates that the NNMi incident was not converted into a JP1 event because none of the filter conditional statements specified in the forwarding condition block was satisfied.
Acquisition request date and time Date and time an NNMi incident acquisition request was issued to NNMi
This value is expressed as the elapsed time in milliseconds since 1970-01-01 at 00:00:00 (world standard time).
UUID UUID of the NNMi incident
Source node name Source node name of the NNMi incident
Creation date and time NNMi incident creation date and time (local time: yyyy/mm/dd hh:mm:ss (year/month/date hour:minute:second))
Event database number Serial number of the JP1 event that was issued by converting the NNMi incident
This item is output only when the conversion result is FWDn.

Note:
The time of a log entry in the trace log for issued JP1 events reflects the format for the time zone of the process that outputs the log.
Therefore, if a user changes the TZ environment variable and then starts a service or executes a command, the time might be output in a different format than that used for the time zone set in the OS.
