3.9.3 Status-Change Condition page

The Status-Change Condition page is used to display or set the event conditions for changing the status of the selected monitoring node.

The following figure shows an example of the Status-Change Condition page of the Properties window.

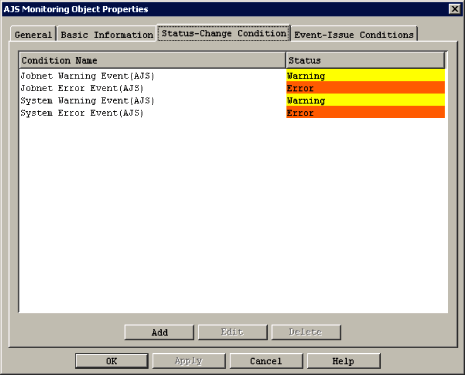

Figure 3-13 Properties window (Status-Change Condition page)

The following describes the items displayed on the Status-Change Condition page of the Properties window.

Status-change condition display field

This area lists the conditions for changing the application status of the monitoring node. Each condition in the field consists of a condition name and a status.

The user can edit a condition listed in the status-change condition display field by selecting it, and then clicking Edit to display the Status-Change Condition Settings window. This window displays the settings of the selected condition.

For example, if the user selects an event monitoring condition that has been set for a monitoring object, the Status-Change Condition Settings window displays the conditions for the selected monitoring events.

To add a condition, the user clicks Add. The Status-Change Condition Settings window opens, and the user can set a new condition for changing the status of the monitoring node. The new condition is added at the bottom of the status-change condition display field.

A maximum of eight status-change conditions can be set for one monitoring object or monitoring group.

To delete a condition, the user selects a condition in the status-change condition display field, and then clicks Delete.
