Job Management Partner 1/Integrated Management - Manager GUI Reference

2.33 Event-Information Mapping Definitions window

The Event-Information Mapping Definitions window is used to map items displayed in the event list with program-specific extended attributes so that the extended attributes can be displayed in the corresponding columns of the event list.

To open the Event-Information Mapping Definitions window, the user must have JP1_Console_Admin permission. This window is displayed when the user chooses Options from the menu bar of the Event Console window and then Event-Information Mapping Definitions. The Event-Information Mapping Definitions window is not available in Web-based JP1/IM - View.

The following figure shows an example of the Event-Information Mapping Definitions window.

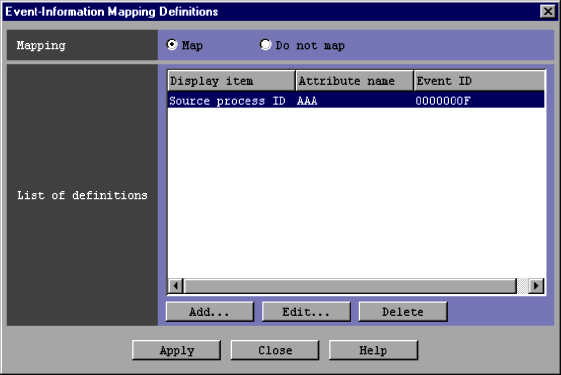

Figure 2-45 Event-Information Mapping Definitions window

The following describes the items displayed in the Event-Information Mapping Definitions window.

Mapping

Specifies whether to enable mapping between the display items and program-specific extended attributes. Selecting Map enables the mapping.

List of definitions

This area lists the event-information mapping definitions that have already been set. A mapping definition is displayed on each line. A maximum of 16 definitions can be set.

If an event-information mapping definition is double-clicked in the list, the Event-Information Mapping Detailed Definitions window appears.

Add

Clicking this button allows the user to add a new event-information mapping definition. When this button is clicked, the Event-Information Mapping Detailed Definitions window appears.

Edit

Clicking this button allows the user to edit the event-information mapping definition selected in the list box in the List of definitions area. When this button is clicked, the Event-Information Mapping Detailed Definitions window appears.

Delete

Clicking this button deletes the event-information mapping definition selected in the list box in the List of definitions area.
