2.31 Conditions for Updating List of Action Results window

The Conditions for Updating List of Action Results window is used to change the conditions for displaying the execution results of automated actions in the List of Action Results window.

The Conditions for Updating List of Action Results window is displayed when the user clicks the Update Settings button in the List of Action Results window.

When JP1/IM - View is connected to JP1/IM - Central Console whose version is 07-01 or earlier, the window that is provided for compatibility is displayed. For details about this window, see the applicable manual for the old version. Also be careful when JP1/IM - View is connected to JP1/IM - Manager (Central Console) that has been upgraded from version 07-01 or earlier. In this case, the settings specified in the Conditions for Updating List of Action Results window version 07-01 or earlier are not carried over.

The following figure shows an example of the Conditions for Updating List of Action Results window.

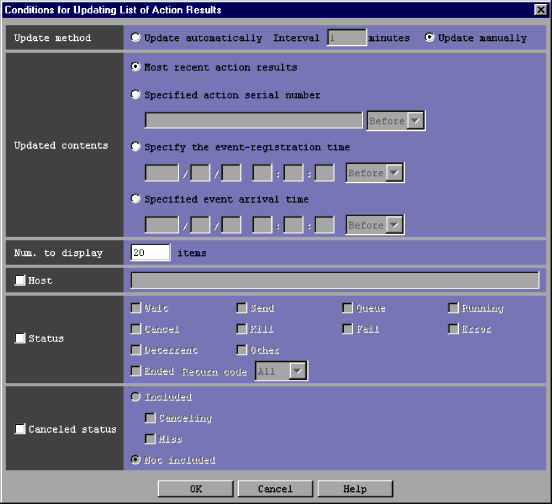

Figure 2-43 Conditions for Updating List of Action Results window

The following describes the items displayed in the Conditions for Updating List of Action Results window.

Update method

Specifies whether to refresh the List of Action Results window automatically or manually.

If the Update automatically radio button is selected, the window is refreshed automatically. The user specifies the refresh interval in minutes in the Interval text box. The range of specifiable values is from 1 to 1,440. The default is 1.

If the Update manually radio button is selected, the window is refreshed manually. When manual refresh is selected, the Interval text box is disabled.

The default is Update manually.

Updated contents

Specifies which action execution results are to be acquired. One of the following four types can be selected:

Most recent action results

Selecting this radio button acquires the results of the most recently executed actions. The number of action execution results to be acquired is specified in the Num. to display area.

Specified action serial number

Selecting this radio button and specifying the action serial number acquires the execution results of the action with the specified action serial number. After entering the serial number, the user selects Before or After from the drop-down list to specify the range of actions to be displayed. A value from 1 to 2,147,483,647 can be specified as an action serial number.

Selecting Before from the drop-down list acquires the execution results of the actions preceding (and including) the specified action. If Before is selected, JP1/IM - View acquires the preceding execution results starting with the most recent results.

Selecting After from the drop-down list acquires the execution results of the actions following (and including) the specified action. When After is selected, JP1/IM - View acquires the subsequent execution results starting with the oldest results.

The number of action execution results to be acquired is specified in the Num. to display area.

Specify the event-registration time

Selecting this radio button and specifying the time that the JP1 events were registered in the event databases on the event-issuing hosts acquires the execution results of the actions that are registered within the specified timeframe.

The user enters the base time, and then selects either Before or After from the drop-down list.

Selecting Before from the drop-down list acquires the execution results of the actions registered before (and at) the specified time. If Before is selected, JP1/IM - View acquires the previous execution results starting with the most recent results.

Selecting After from the drop-down list acquires the execution results of the actions registered after (and at) the specified time. If After is selected, JP1/IM - View acquires the subsequent execution results starting with the oldest results.

The number of action execution results to be acquired is specified in the Num. to display area.

The time is specified in YYYY/MM/DD hh:mm:ss format, and the range of specifiable values is from 1970/01/01 00:00:00 GMT to 2038/01/19 03:14:07 GMT in the default time zone of the machine.

For example, on a machine whose time zone is set to GMT+9 (Japan), the range of values that can be specified is from 1970/01/01 09:00:00 to 2038/01/19 12:14:07.

Specified event arrival time

Selecting this radio button and specifying the time that the JP1 events arrived at the local server acquires the execution results of the actions for which JP1 events arrived at the local server within the specified timeframe.

Selecting Before from the drop-down list acquires the execution results of the actions for which JP1 events arrived before (and at) the specified time. If Before is selected, JP1/IM - View acquires the previous execution results starting with the most recent results.

Selecting After from the drop-down list acquires the execution results of the actions for which JP1 events arrived after (and at) the specified time. If After is selected, JP1/IM - View acquires the subsequent execution results starting with the oldest results.

The number of action execution results to be acquired is specified in the Num. to display area.

The time is specified in YYYY/MM/DD hh:mm:ss format, and the range of specifiable values is from 1970/01/01 00:00:00 GMT to 2038/01/19 03:14:07 GMT in the default time zone of the machine.

For example, on a machine whose time zone is set to GMT+9 (Japan), the range of the time that can be specified is from 1970/01/01 09:00:00 to 2038/01/19 12:14:07.

Num. to display

Specifies the maximum number of actions that can be displayed in the List of Action Results window. The range of specifiable values is from 1 to 200. The default is 20.

Host

Specifies the names of the hosts on which actions were executed. To specify host names, the user selects the Host check box, and then specifies the host names in the text box with a maximum of 255 bytes. The host names are separated with a comma (,). A maximum of 10 host names can be specified.

Alphanumeric characters, underscores (_), hyphens (-), periods (.), and commas (,) can be entered in the text box, although the commas (,) can only be used as separators.

Also note that hyphens (-) and periods (.) cannot be used as the last character, and that host group names cannot be specified.

Status

Specifies the execution statuses of the actions to be displayed. To specify execution statuses, the user selects the Status check box, and then selects the check boxes of the statuses that are to be displayed. Multiple statuses can be specified.

The available check boxes are Wait, Send, Queue, Running, Cancel, Kill, Fail, Error, Deterrent, Other, and Ended. The actions displayed by selecting these check boxes include actions with the status suffixes -R, -RU, -RD, -RUD, and -D. For example, when the Running check box is selected, actions in the Running, Running-R, Running-RU, Running-RD, and Running-RUD statuses are displayed.

For details about the statuses that can be selected in this area, see the table under the description of the Log area in 2.29 Action Log Details window.

If Ended is selected, the condition for selecting return codes can also be selected from 0, Not 0, and All.

Canceled status

Specifies whether actions for which cancellation is in progress and actions for which cancellation failed are to be displayed. These actions are displayed in the List of Action Results window when the Canceled status check box, the Included radio button, and either one or both of the Canceling and Miss check boxes are selected.

If Canceling is selected, the actions for which cancellation is in progress are displayed. If Miss is selected, the actions for which cancellation failed are displayed.

When the Not included radio button is selected, the actions for which cancellation is in progress and the actions for which cancellation failed are not displayed.

The default is Not included.
