Job Management Partner 1/Integrated Management - Manager GUI Reference

2.23 Detailed Settings for Event Receiver Filter window

The Detailed Settings for Event Receiver Filter window is used to specify the filter conditions of an event receiver filter. This window is displayed when the Add or Edit button is clicked in the Settings for Event Receiver Filter window.

If no conditions (items under Conditions) have been specified for one or more of the pass-conditions groups set in this window, all JP1 events will be displayed (acquired). On the other hand, if no conditions (items under Conditions) have been specified for one or more of the exclusion-conditions groups set in this window, no JP1 events will be displayed (acquired). At least one condition must be specified for each condition group in order to filter events.

The following figure shows an example of the Detailed Settings for Event Receiver Filter window.

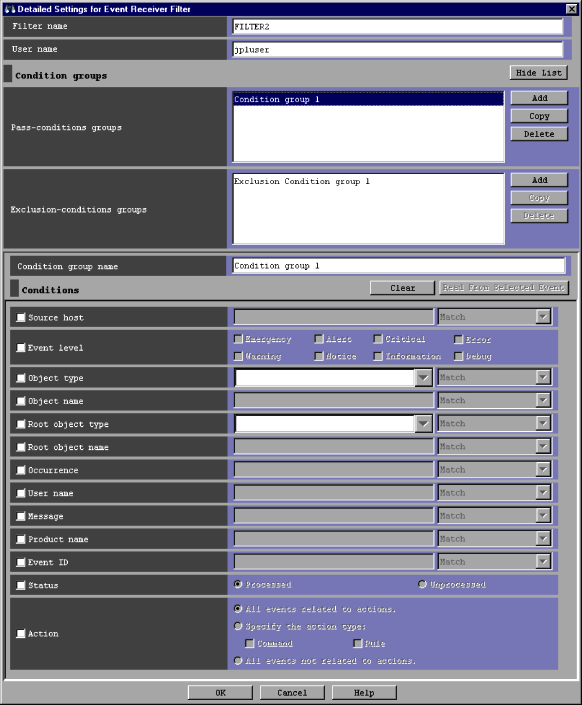

Figure 2-27 Detailed Settings for Event Receiver Filter window

The following describes the items displayed in the Detailed Settings for Event Receiver Filter window.

Filter name

Specifies the name of an event receiver filter. The conditions set for a filter are identified by the name specified in this area.

The name specified here is listed in the Specifications area of the Settings for Event Receiver Filter window.

User name

Specifies the names of the users to which the restrictions imposed by the event receiver filter apply. Multiple user names require a comma as a separator.

Show List (or Hide List)

Clicking the Show List button displays the list of condition groups. When the list is displayed, the button changes to the Hide List button, which, if clicked, hides the list.

Pass-conditions groups

This area displays the list of pass-conditions groups. If the user selects a condition group from the list, the name of the selected group is displayed in the Condition group name area, and the condition settings are displayed in the Conditions area. The user can edit these condition settings.

A maximum of 30 condition groups can be set. When 30 condition groups have been specified, the Add and Copy buttons are disabled.

Exclusion-conditions groups

This area displays the list of exclusion-conditions groups. If the user selects a condition group from the list, the name of the selected group is displayed in the Condition group name area, and the condition settings are displayed in the Conditions area. The user can edit these condition settings.

A maximum of 30 condition groups can be set. When 30 condition groups have been specified, the Add and Copy buttons are disabled.

Add

Clicking this button adds a new condition group. For pass-conditions groups, the default name Condition group n (n is a number) is assigned to the new pass-conditions group that is added. For exclusion-conditions groups, the default name Exclusion-condition group n (n is a number) is assigned to the new exclusion-conditions group that is added. Each time a new condition group is added, the focus moves to the text box in the Condition group name area so that the user can assign a name.

Copy

Clicking this button copies the selected condition group. When the user selects a condition group and clicks this button, a new condition group in which the same conditions as those defined in the selected condition group is created. The new condition group that is created is assigned the default name Copy original-condition-group-name, and is added to the list of condition groups. After creating a copy of a condition group, if the user creates another copy of the same condition group, a number is added after the string Copy in CopyN original-condition-group-name (N is a number). The first number used is 2, which is incremented each time the same condition group is copied. Note that each time a new condition group is added to the list, the focus moves to the text box in the Condition group name area so that the user can assign a name.

Delete

Clicking this button deletes the selected condition group. When this button is clicked, a message dialog box displaying the following message appears:

KAVB0257-I Are you sure you want to delete this condition group?

Clicking the Yes button in the message dialog box deletes the selected condition group.

Condition group name

This box is used to specify the name of a condition group.

If the user selects an existing condition group and specifies a new name, the name of the condition group is replaced with the new name. The same name cannot be specified for a pass-conditions group and an exclusion-conditions group.

If the user attempts to specify an existing condition group name, a message dialog box displaying the following message appears:

KAVB0256-E The specified condition group name already exists.

Clear

Clicking this button clears all condition settings displayed under Conditions.

Read From Selected Event

Clicking this button applies the attribute values of the JP1 event selected in the Event Console window to the corresponding items under Conditions. The following describes how the attribute values are applied:

When an event attribute value includes a control character (such as a linefeed or tab character)
The part before the first control character is applied. If an option condition can be specified for the event attribute, First characters is selected.

When an event attribute value does not include a control character
The entire event attribute value is applied. If an option condition can be specified for the event attribute, Match is selected.

If the information of the selected JP1 event is mapped in the Event-Information Mapping Definitions window, the attribute values for the display items and program-specific extended attribute values that have been mapped are not applied. For details about the Event-Information Mapping Definitions window, see 5.1.3 Displaying extended attributes of JP1 events in the Job Management Partner 1/Integrated Management - Manager Administration Guide.

Source host

Specifies the name of a host (event server name) that issues a JP1 event. Multiple host names require a comma as a separator. A maximum of 100 host names can be specified. If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified character strings from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Event level

Specifies the event severity levels from Emergency, Alert, Critical, Error, Warning, Notice, Information, and Debug.

Object type

Specifies the object type of a JP1 event. The character string can be typed in the text box or selected from the drop-down list.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Object name

Specifies the object name of a JP1 event. Multiple object names require a comma as a separator. A maximum of 100 object names can be specified. If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified characters string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Root object type

Specifies the root object type of a JP1 event. The root object type can be typed in the text box or selected from the drop-down list.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Root object name

Specifies the root object name of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Occurrence

Specifies the occurrence type of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

User name

Specifies the user name of a JP1 event.

Multiple user names require a comma as a separator. A maximum of 100 user names can be specified. If a user name that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Message

Specifies the message text of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression. The recommended option is First characters or Is contained. If Regular expression is selected, make sure that control characters used in the message text are not included in the expression.

Product name

Specifies the name of the program that issues a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Event ID

Specifies the event ID of a JP1 event. Multiple event IDs require a comma as a separator.

From the drop-down list on the right, the user selects a condition for the specified character strings from Match and Does not match.

Status

Specifies the event statuses of JP1 events. If the user selects Processed, only events whose status is set to Processed are filtered. If the user selects Unprocessed, only events whose status is set to Unprocessed are filtered.

Action

For JP1 events for which an automated action is defined, this item enables a search based on whether the defined automated action has been executed.

When linkage with JP1/IM - Rule Operation has been set up, the Action area is expanded to display the additional options shown below.

When linkage with JP1/IM - Rule Operation has been set up, the action type can be specified as a filter condition. For details about the setup for linkage with JP1/IM - Rule Operation, see 8.1.1 Settings for enabling the JP1/IM - Rule Operation linkage function in the Job Management Partner 1/Integrated Management - Manager Configuration Guide.
