Job Management Partner 1/Integrated Management - Manager GUI Reference

2.18 Event Search Conditions (Program-Specific Information in Extended Attribute) window

The Event Search Conditions (Program-Specific Information in Extended Attribute) window is used to set program-specific extended attributes for JP1 events as event search conditions.

This window is displayed when the user clicks the Configure button in the Extended attribute area of the Event Search Conditions window. The following figure shows an example of the Event Search Conditions (Program-Specific Information in Extended Attribute) window.

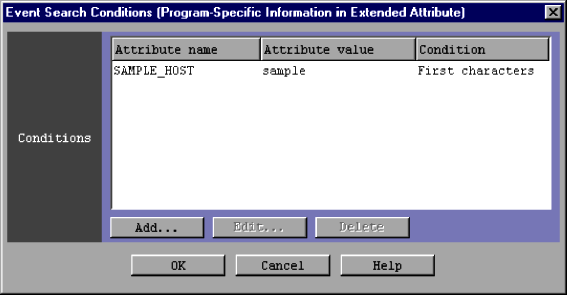

Figure 2-22 Event Search Conditions (Program-Specific Information in Extended Attribute) window

The following describes the items displayed in the Event Search Conditions (Program-Specific Information in Extended Attribute) window.

Conditions

This area displays a list of program-specific extended attribute conditions that are already set. Attribute names, attribute values, and conditions are listed.

A program-specific extended attribute condition is displayed for each line. A maximum of five conditions can be set.

When a program-specific extended attribute condition is double-clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Add

Clicking the Add button allows the user to add a new program-specific extended attribute condition. When the button is clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Edit

Clicking the Edit button allows the user to edit the existing program-specific extended attribute condition that is selected in the Conditions list. When the button is clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Delete

Clicking the Delete button deletes the existing program-specific extended attribute condition that is selected in the Conditions list.
