9.2.2 Integrated trace log

The integrated trace log contains log information that is obtained by using the Hitachi Network Objectplaza Trace Library (HNTRLib2) to integrate the trace information that is output by individual programs into a single output file. The integrated trace log outputs more detailed messages than the common message log.

The default output destination of the integrated trace log is as follows:

In Windows:

system-drive\Program Files\Hitachi\HNTRLib2\spool\hntr2{1|2|3|4}.log

In UNIX:

/var/opt/hitachi/HNTRLib2/spool/hntr2{1|2|3|4}.log

You can view the integrated trace log file from a text editor of your choice. The figure below shows an output example of the integrated trace log.

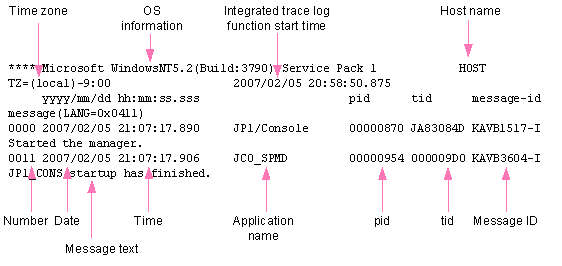

Figure 9-2 Integrated trace log file output example

The header information that is output to the integrated trace log file and the output items are explained below.

Table 9-1 Integrated trace log file header information

Header information	Explanation
OS information	Information on the OS under which the Hitachi Network Objectplaza Trace Library (HNTRLib2) started.
Host name	The name of the host on which the Hitachi Network Objectplaza Trace Library (HNTRLib2) started.
Time zone	In Windows: OS's time zone In UNIX: Environment variable TZ of the integrated trace process. If the environment variable TZ is not set up, Unknown is output.
Integrated trace log function start time	Time at which the Hitachi Network Objectplaza Trace Library (HNTRLib2) started.

Table 9-2 Integrated trace log file output items

Output items	Explanation
Number (4 digits)	Trace code serial number A number is assigned to each process that outputs a log.
Date (10 bytes)	Trace collection date: yyyy/mm/dd (year/month/day)
Time (12 bytes)	Trace collection time (local time): hh:mm:ss.sss (hour:minutes:seconds.milliseconds)
AP name (16 bytes or shorter)	Name that identifies an application (application identifier) The following AP names are output by JP1/IM - Manager: JP1/IM-Manager Service JP1/IM-Manager Event Base Service evflow Automatic Action Service jcamain Event Generation Service evgen Central Scope Service jcsmain IM Configuration Management Service jcfmain Process management JCO_SPMD jcochstat command jcochngstat Other commands command-name The following AP names are output by JP1/IM - View: Central Console - View JP1/IM-View Central Scope - View JP1/IM-View IM Configuration Management - View JP1/IM-View Edit Tree window JP1/IM-Edit
pid	Process ID assigned by the OS
tid	Thread ID for identifying a thread
Message ID	Message ID explained in the message output format. Message ID used by this product.
Message text	Message text that is output to the integrated trace log. Message text that is output from this product.

The log time that is output to the integrated trace log is formatted according to the time zone of the process that output the log.

Consequently, if a user who has changed the environment variable TZ starts a service or executes a command, a time that is different from the time zone that is set in the OS may be output.
