7.2.1 Example 1 (non-cluster operation with JP1/IM - View connection)

In this example, although cluster operation is not employed, the manager is connected to two LANs that cannot be mutually routed, and JP1/IM - View is connected from each LAN.

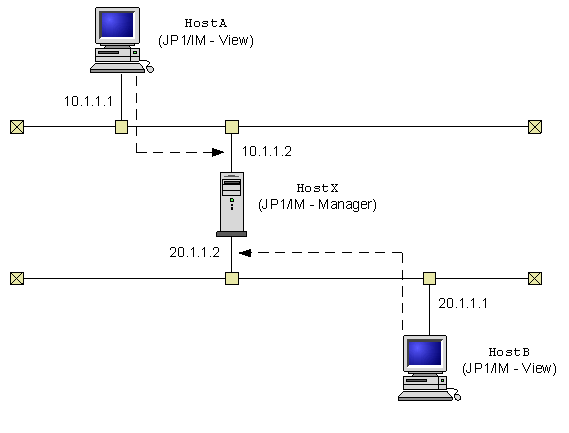

Figure 7-1 Connecting JP1/IM - View in a multi-LAN environment (non-cluster operation)

The following tables show the settings for each host.

Table 7-1 Settings for HostX (JP1/IM - Manager)

Host name Binding method^# jp1host setting^#

HostX send ANY, receive ANY --

send ANY, receive IP 10.1.1.2, 20.1.1.2

Legend:

--: Setting is not required

#: Can be connected with either settings.

You can achieve normal operation without having to change the JP1/Base communication settings (when cluster operation is not employed, the ANY binding methods can be used for both send and receive operations).

Table 7-2 Settings for HostA and HostB (JP1/IM - View)

Host name Host to connect Other conditions

HostA HostX Conversion from host name HostX to 10.1.1.2 must be possible.

HostB HostX Conversion from host name HostX to 20.1.1.2 must be possible.

Host name	Binding method^#	jp1host setting^#
HostX	send ANY, receive ANY	--
send ANY, receive IP	10.1.1.2, 20.1.1.2

Host name	Host to connect	Other conditions
HostA	HostX	Conversion from host name HostX to 10.1.1.2 must be possible.
HostB	HostX	Conversion from host name HostX to 20.1.1.2 must be possible.
