5.9.1 Example of creating system-monitoring objects (JP1/AJS jobnet monitoring)

This subsection presents an example of creating a system-monitoring object that monitors the execution status of JP1/AJS jobnet AJSROOT:/Group1/Order_Processing.

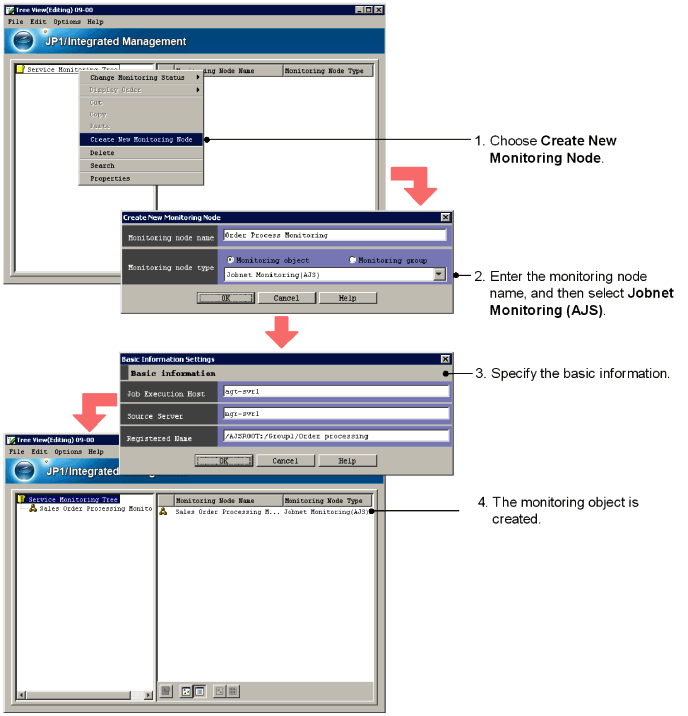

Figure 5-17 Example of creating a system-monitoring object

1. Open the Create New Monitoring Node window.
   Use one of the following methods to open the window:

   • Select a monitoring group, and then from the right-click pop-up menu, choose Create New Monitoring Node.
   • Select a monitoring group, and then from the menu bar, choose Edit, then Create New Monitoring Node.
   • To open the window from the details area, right-click with no monitoring node selected, and from the displayed pop-up menu, choose Create New Monitoring Node.
   If there are no monitoring nodes, use the menu bar or the pop-up menu that is displayed by right-clicking in the monitoring tree area.

2. Enter a name for the monitoring node, and then select Jobnet Monitoring (AJS).
   Set the following items in the Create New Monitoring Node window:

   • Monitoring node name
     Specify any name.

   • Monitoring node type
     Select Jobnet Monitoring (AJS).

3. Specify the basic information for the monitoring node.
   In the Basic Information Settings window, specify the following information.


   Table 5-5 Example of basic information for a monitoring node

   Monitoring node attribute name	Attribute value to be entered (example)	Description
   Job execution host	agt-svr1	Host where the job is executed. Enter the name of the JP1/AJS agent that is to execute the job.
   Event-issuing server	mgr-svr1	Host that issues JP1 events. In JP1/AJS, enter the name of the JP1/AJS manager.
   Registration name	AJSROOT:/Group/Order_Processing	Enter a complete name in the format shown below; specification of job group names is optional: scheduler-service-name:/job-group-name-1/job-group-name-2/.../jobnet-name

4. The monitoring object is created.
   The monitoring object that monitors the execution status of the JP1/AJS jobnet AJSROOT:/Group/Order_Processing is created.
