2.3.2 How to use the Hitachi Program Product Installer

The Hitachi Program Product Installer is on the JP1/IM distribution medium. This subsection describes the following procedures:

User permissions for execution of the Hitachi Program Product Installer
  • To use the Hitachi Program Product Installer, you need root permissions. Either log on as root or use the su command to change the user to root.
Organization of this subsection
(1) Starting the Hitachi Program Product Installer
(2) Installing JP1/IM - Manager
(3) Removing JP1/IM - Manager
(4) Displaying version information

(1) Starting the Hitachi Program Product Installer

To start the Hitachi Program Product Installer:

  1. Insert the JP1/IM - Manager distribution medium CD-ROM in the drive.

  2. Mount the CD-ROM.
    The mounting method depends on the OS, hardware, and environment in use. For details about the mounting method, see the OS documentation.
    • In Solaris
      Normally when you insert the CD-ROM, it mounts automatically.
      /usr/sbin/mount (checks to see if the CD-ROM is mounted)
      If the CD-ROM has not mounted automatically, enter the following command:
      /usr/sbin/mount -r -F hsfs /dev/dsk/c0t4d0s0 /cdrom
    • In AIX
      /usr/sbin/mount -r -v cdrfs /dev/cd0 /cdrom
    Note that the device special file name indicated in bold type and the underlined CD-ROM file system mount directory name depend on the environment.

  3. Start the Hitachi Program Product Installer.
    The directory and file names on the CD-ROM may differ depending on the machine environment. Use the ls command to check the directory and file names, and then use the displayed names.
    • In Solaris
      /cdrom/cdrom0/solaris/setup /cdrom/cdrom0
    • In AIX
      /cdrom/aix/setup /cdrom
    Replace the underlined part with the actual CD-ROM mount directory name.

  4. Unmount the CD-ROM.
    After you finish the installation, unmount the CD-ROM. For details about how to unmount a CD-ROM, see the OS documentation.
    • In Solaris
      /usr/bin/eject (ejects the CD-ROM that was mounted automatically)
      If you used the mount command to mount the CD-ROM manually, enter the following command:
      /usr/sbin/umount /cdrom
    • In AIX
      /usr/sbin/umount /cdrom
    Replace the underlined part with the actual CD-ROM mount directory name.

(2) Installing JP1/IM - Manager

This subsection explains how to use the Hitachi Program Product Installer to install JP1/IM - Manager. When you start the Hitachi Program Product Installer, the initial window appears.

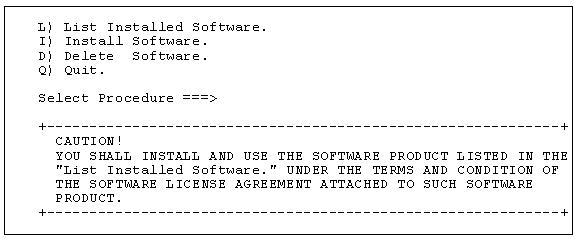

Figure 2-3 Example of the Hitachi Program Product Installer's initial window

[Figure]

In Select Procedure in the initial window, enter I to display a list of software programs that can be installed. Move the cursor to the software program that you want to install, and then press the space bar to select it. Entering I again installs JP1/IM - Manager. After installation is completed, enter Q to return to the initial window.

(3) Removing JP1/IM - Manager

Enter the following command to start the Hitachi Program Product Installer:

/etc/hitachi_setup

The Hitachi Program Product Installer's initial window is displayed. For details about the initial window, see Figure 2-3 Example of the Hitachi Program Product Installer's initial window.

In Select Procedure in the initial window, enter D to display a list of software programs that can be removed. Move the cursor to the software program that you want to remove, and then press the space bar to select it. Entering D again removes the software program. After the software program has been removed, enter Q to return to the initial window.

(4) Displaying version information

Execute the following command to start the Hitachi Program Product Installer:

/etc/hitachi_setup

The Hitachi Program Product Installer's initial window is displayed. For details about the initial window, see Figure 2-3 Example of the Hitachi Program Product Installer's initial window.

In Select Procedure in the initial window, enter L to display a list of Hitachi products that have been installed.
