3.4.2 Installation and setup procedure in a cluster system (for Windows)

The following figure shows the procedures for installing and setting up PFM - RM for Platform in a cluster system.

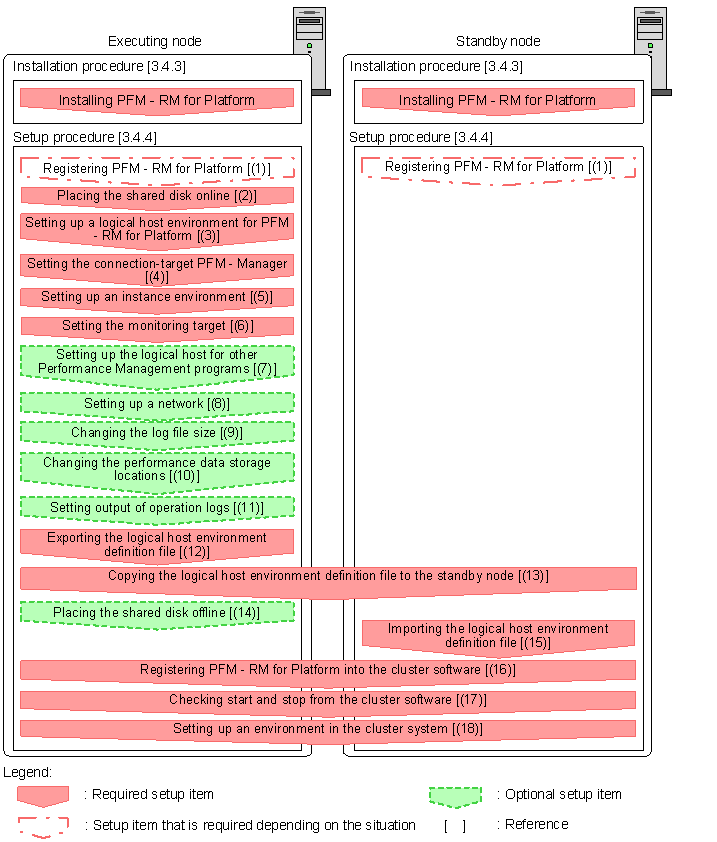

Figure 3-5 Installation and setup procedures in a cluster system (for Windows)

[Figure]

Note
Setting up a PFM - RM in a logical host environment does not inherit the existing PFM - RM definition in the physical host environment. A new environment is created when an instance environment is set up in the logical and physical host environments.
