Appendix E.3 Installation order during migration from 07-10 or earlier to 09-00 or later

This section describes the installation order when upgrading Performance Management program from 07-10 or earlier to 09-00 or later. The uninstallation order is in the reverse order of installation.

Organization of this subsection
(1) When migrating to PFM - Manager to 09-00 or later
(2) When migrating to PFM - Agent to 09-00 or later
(3) When migrating to PFM - View to 09-00 or later
(4) Configurations of Performance Management that must not be combined

(1) When migrating to PFM - Manager to 09-00 or later

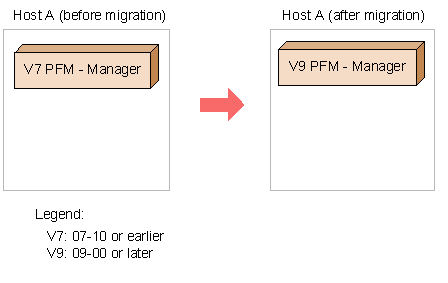

(a) When migrating to PFM - Manager to 09-00 or later

[Figure]

Installation order
  1. Perform an overwrite installation of 09-00 or later of PFM - Manager over the previous installation.

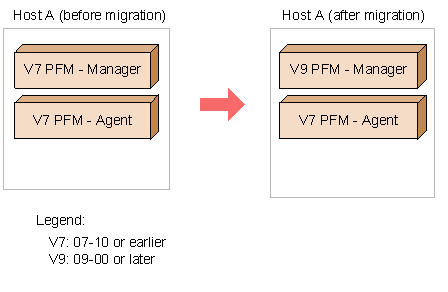

(b) When migrating only PFM - Manager to 09-00 or later in an environment where 07-10 or earlier of PFM - Manager and PFM - Agent have been installed on the same host

[Figure]

Installation order
  1. Perform an overwrite installation of 08-00 or later of PFM - Manager over the previous installation.

Note:
In this configuration, when uninstalling PFM - Manager, also uninstall 07-00 or earlier of PFM - Agent.

(2) When migrating to PFM - Agent to 09-00 or later

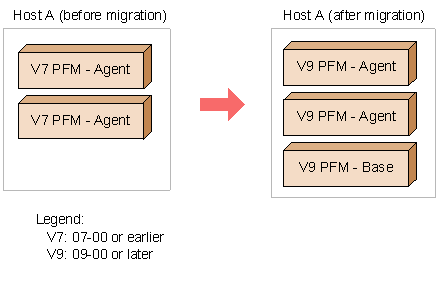

(a) When migrating all of one or more PFM - Agents to 09-00 or later

[Figure]

Installation order
  1. Perform a new installation of 09-00 or later of PFM - Base.
  2. Perform an overwrite installation of 09-00 or later of PFM - Agent over the previous installation.

Note:
You need only install one PFM - Base even if multiple PFM - Agents are installed on a single host.
Additionally, there is no installation order between PFM - Agents.

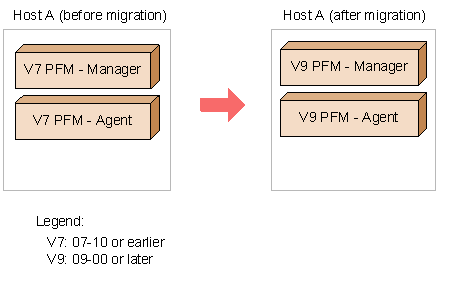

(b) When migrating PFM - Manager and PFM - Agent to 09-00 or later in the environment where 07-10 or earlier of PFM - Manager and PFM - Agent have been installed on the same host

[Figure]

Installation order
  1. Perform an overwrite installation of 09-00 or later of PFM - Manager over the previous installation.
  2. Perform an overwrite installation of 09-00 or later of PFM - Agent over the previous installation.

Note:
When you install PFM - Manager and PFM - Agent on the same host, there is no need to install PFM - Base.

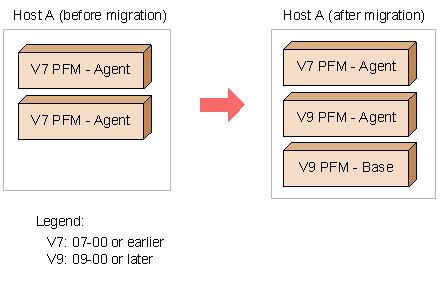

(c) When migrating only parts of PFM - Agent to 09-00 or later in an environment where 07-00 or earlier of multiple PFM - Agents have been installed on a single host

[Figure]

Installation order
  1. Perform a new installation of 09-00 or later of PFM - Base.
  2. Perform an overwrite installation of 09-00 or later of PFM - Agent over the previous PFM - Agent to be upgraded.

Note:
When uninstalling PFM - Base in this configuration, also uninstall 07-00 or earlier and 09-00 or later of PFM - Agent.

(3) When migrating to PFM - View to 09-00 or later

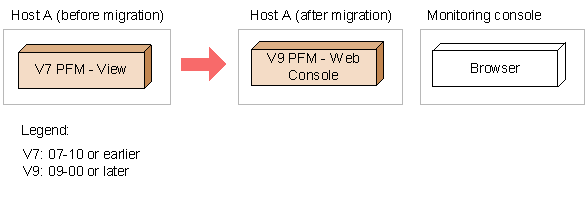

(a) When migrating 07-00 or earlier of PFM - View to 09-00 or later of PFM - Web Console

[Figure]

Installation order
  1. Perform a new installation of 09-00 or later of PFM - Web Console.

Note:
When you use only PFM - Web Console as a monitoring console environment, you are permitted to uninstall 07-00 or earlier of PFM - View.

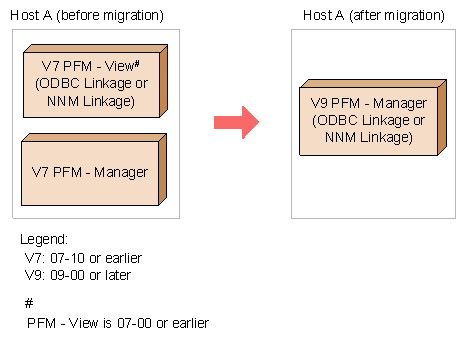

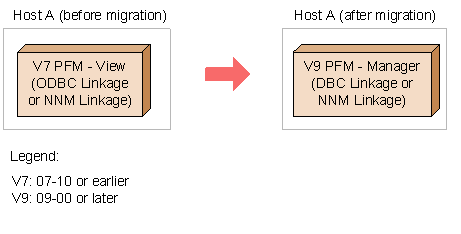

(b) When migrating the ODBC or NNM linkage function for 07-00 or earlier of PFM - View to 09-00 or later

You can use the following two methods for this migration:

Note:
When you use only PFM - Web Console in the monitoring console environment, you are permitted to uninstall 07-00 or earlier of PFM - View.

(4) Configurations of Performance Management that must not be combined

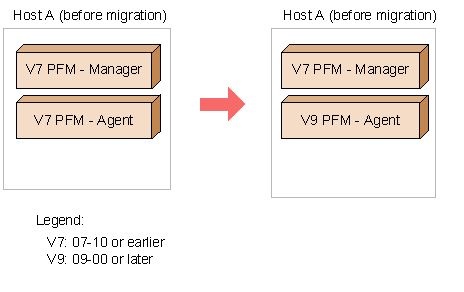

Performance Management cannot be used in the following configuration.

Note:
When PFM - Manager and PFM - Agent are installed on the same host, the prerequisite product of PFM - Agent of 09-00 or later becomes PFM - Manager 08-00 or later. As a result, if you are using PFM - Agent 09-00 or later, you must use PFM - Manager 08-00 or later. However, PFM - Base cannot be installed in this environment, because PFM - Manager and PFM - Base are mutually exclusive regardless of version.
