The trace to be analyzed can be sorted out from the trace of processes executed on the specified week, date and time by specifying week, date and time in the message tracking prompt.

The following figure shows the trace to be analyzed that are acquired by sorting the performance analysis trace:

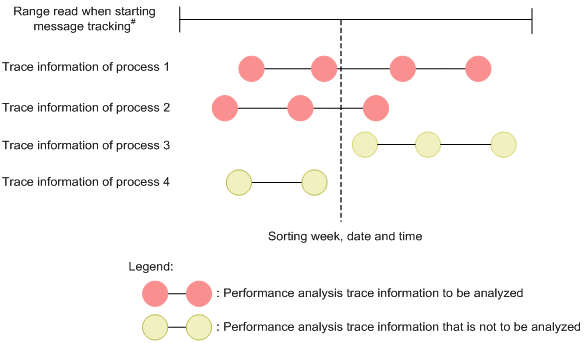

Figure 7-117 Traces to be analyzed by sorting performance analysis trace

Note#:

The performance analysis trace can be sorted in both the normal start and range specified start. For details about starting the message tracking, see 7.10.2 Starting message tracking.

Execute the focus command at message tracking prompt for sorting performance analysis trace. For details about the focus command, see cscmsgtk (Starting the message tracking functionality) in the manual Cosminexus Service Platform Reference.

Note

Display warning message when week, date and time for which there are no traces to be analyzed is specified. In such cases, omit the sorted week, date and time and execute the focus command and restore the traces to be analyzed to startup status.
