For details on how to install Service Platform, see "2.2 Application server setup" in "Application Server System Setup and Operation Guide". For points to be considered for installation, see "Appendix J Points to be considered when installing and uninstalling" in "Application Server System Setup and Operation Guide". Read the installation procedure product name "Application Server" as "Service Platform".

Configuration software included in Service Platform in UNIX is as follows:

• Component Container
• Component Transaction Monitor
• DABroker Library#
• Developer's Kit for Java
• Performance Tracer
• Reliable Messaging
• Service Coordinator
• TPBroker
• Web Services - Security
• XML Processor
• HTTP Server
• Service Platform- Base

Note #

These are included only in HP-UX (IPF) version Service Platform.

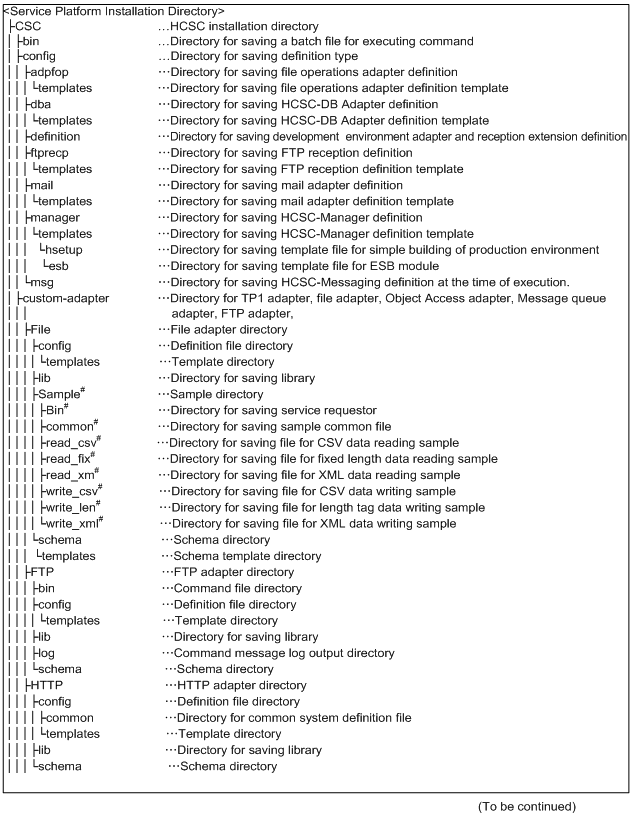

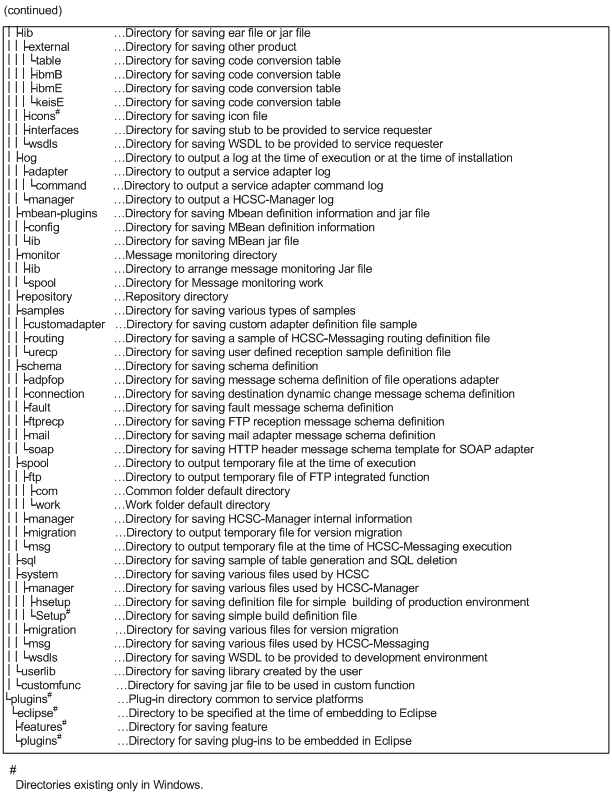

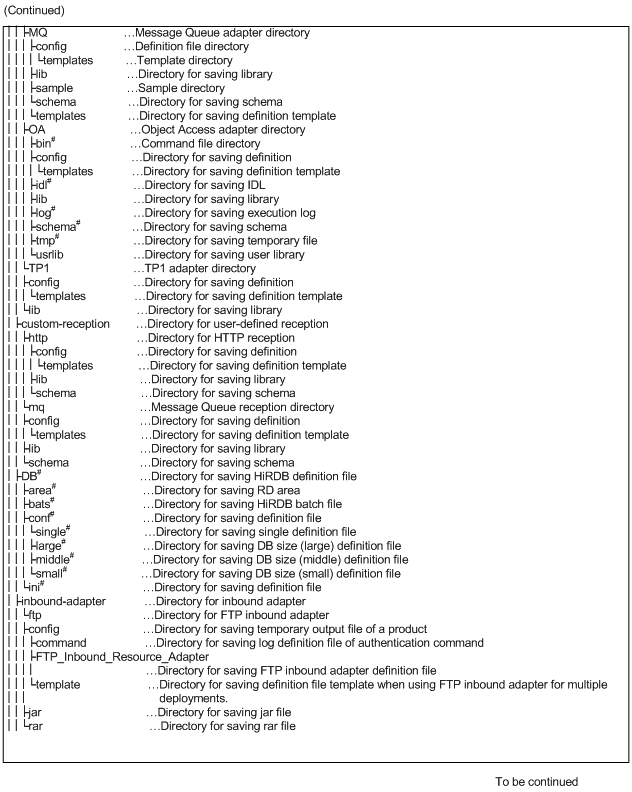

The following figure shows directory configuration after installation of Service Coordinator from among the software that configures Service Platform. For directory configuration after installation of configuration software other than Service Coordinator, see "Appendix B Directory configuration after installation" in "Application Server System Setup and Operation Guide".

Figure 2-2 FigureDirectory configuration after installation
