This subsection describes the WSDL extension attribute of the WS-Addressing 1.0 specifications available with Cosminexus:

• wsaw:Action attribute
  This extension attribute is used to bind the Action value of the addressing header with the wsdl:input, wsdl:output and wsdl:fault elements.
  You can code the wsaw:Action attribute as the extension attribute of the wsdl:input, wsdl:output, and wsdl:fault elements, the child elements of the wsdl:portType/wsdl:operation element. If you code this attribute as the extension attribute of other elements, the value is ignored. If a space is specified in this attribute, the space is used as the Action value as it is. Also, if null ("") is specified, the wsaw:Action attribute is ignored.
  If this attribute is coded in WSDL, the javax.xml.ws.Action and javax.xml.ws.FaultAction annotations are created in SEI that is generated using the cjwsimport command. For details on the javax.xml.ws.Action annotation, see the section 16.2.13 javax.xml.ws.Action annotation and for details on the javax.xml.ws.FaultAction annotation, see the section 16.2.15 javax.xml.ws.FaultAction annotation.

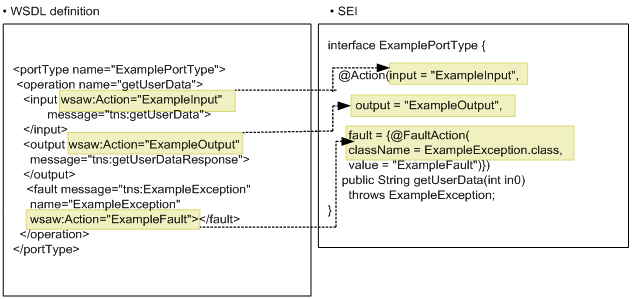

  The following figure shows an example of mapping, when the wsaw:Action attribute is used.


  Figure 37-3 Example of mapping when the wsaw:Action attribute is used
