The following figure shows the life cycle of an Explicit memory block.

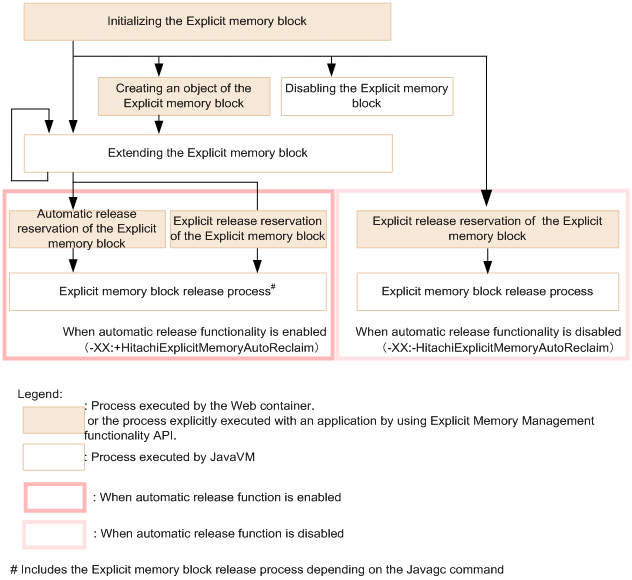

Figure 8-10 Life cycle of Explicit memory block

Each stage in the life cycle, which is shown in the figure, is described below.

Initializing and disabling the Explicit memory block

The Explicit memory block is initialized and generated.

• Web container initializes the Explicit memory block, which stores the objects related to an HTTP session or objects for communication with the redirector.
• In an application, if you want to place any object in the Explicit heap, explicitly initialize the Explicit memory block by using the Explicit Memory Management functionality API.

The Explicit memory block might be disabled depending on the status at the time of initialization.

The processes executed during the initialization of the Explicit memory block and the conditions by which an Explicit memory block is disabled are described in 8.6.2 Initializing the Explicit memory block.

Generating objects in the Explicit memory block

In an application, if you want to store any object in an Explicit memory block, generate and place the object in the Explicit memory block by using the Explicit Memory Management functionality API.

Details on generating objects in the Explicit memory block are described in 8.6.3 Directly generating objects in the Explicit memory block.

Extending the Explicit memory block

If the area to place objects becomes insufficient during use, JavaVM expands the Explicit memory block.

Details on expanding the Explicit memory block are described in 8.6.4 Extending the Explicit memory block.

Reserving release and releasing the Explicit memory block

The behavior of the processes of reserving release and releasing the Explicit memory block varies according to whether the automatic release functionality in the Explicit Memory Management functionality is enabled (-XX:+HitachiExplicitMemoryAutoReclaim) or disabled (-XX:-HitachiExplicitMemoryAutoReclaim).

If the automatic release functionality is enabled (-XX:+HitachiExplicitMemoryAutoReclaim)

• Explicit release reserving of the Explicit memory block
  The release is reserved for Explicit memory blocks that are specified by the Explicit Memory Management functionality API. For details on the explicit release reserving of the Explicit memory block when the automatic release functionality is enabled, see 8.7.1 Explicit release reserving of the Explicit memory block when the automatic release functionality is enabled.

• Automatic release reserving of the Explicit memory block
  A Release is reserved for Explicit memory blocks processed by automatic release functionality in the Explicit Management Heap. For details on the automatic release reserving of the Explicit memory block when the automatic release functionality is enabled, see 8.7.2 Automatic release reserving of the Explicit memory block when the automatic release functionality is enabled.

• Releasing of the Explicit memory block
  The process releases the objects that are placed in the Explicit memory blocks reserved by the explicit release reserving or automatic release reserving. For details on the process of releasing the Explicit memory block when the automatic release functionality is enabled, see 8.7.3 Releasing the Explicit memory block when the automatic release functionality is enabled.
  If you use the javagc command, you can execute the release process at any time, for Explicit memory blocks that are not released. For details on the release process of Explicit memory blocks by using the javagc command, see 8.9 Releasing Explicit memory blocks by the javagc command.


If the automatic release functionality is disabled (-XX:-HitachiExplicitMemoryAutoReclaim)

• Explicit release reserving of Explicit memory block
  The reserve release in Explicit memory blocks when the objects placed in the Explicit memory block become unnecessary.


1. Web container reserves release of the Explicit memory block, which has stored objects related to the HTTP session or objects for communication with the redirector.
2. In an application, if you have stored any object in the Explicit memory block, explicitly reserve the release of the Explicit memory block by using the Explicit Memory Management functionality API.

For details on the explicit release reserving of the Explicit memory block when the automatic release functionality is disabled, see 8.8.1 Explicit release reserving of the Explicit memory block when the automatic release functionality is disabled. Note that when the explicit release reserving is executed, the Explicit memory block is not yet destroyed.

• Releasing of Explicit memory block
  JavaVM releases Explicit memory blocks reserved for release when the copy garbage collection or the full garbage collection occurs. It also destroys the objects placed in Explicit memory blocks at the same time. However, some objects are not destroyed and move to the Java heap.
  For details on the process of releasing the Explicit memory block when the automatic release functionality is disabled, see 8.8.2 Releasing the Explicit memory block when the automatic release functionality is disabled.


An Explicit memory block transits through the states such as enabled, released and reserved for release at each stage in the life cycle.

Moreover, an active Explicit memory block maintains a sub-status as described in the following table.

Table 8-5 Sub-status of Explicit memory block

Sub-status	Status of Explicit memory block
Enable	This is the initial status. In this status, you can use all functionality of the Explicit memory block.
Disable	In this status, you cannot move Java objects to the corresponding Explicit memory block. The status might change to this state when you extend the Explicit memory block.
