This subsection describes the status transition of batch applications using the scheduling functionality.

The following figure shows the status transition of batch applications.

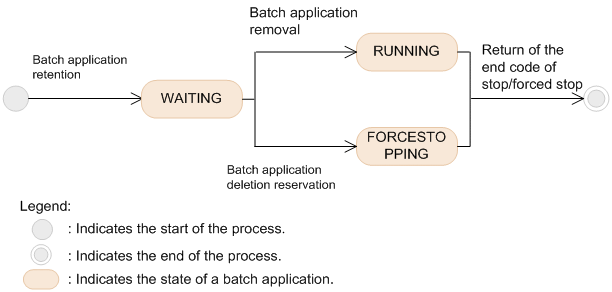

Figure 4-6 Status transition of batch applications (Using the scheduling functionality)

The following table describes the respective status of batch applications.

Table 4-3 Description of the respective status of batch applications

Status of batch application	Explanation
WAITING	This is a standby status in a schedule queue because another batch application is running on the batch sever.
RUNNING	In this status, a batch application is running on a batch server.
FORCESTOPPING	In this status, the batch application, which is in the schedule key, is reserved for deletion by the batch forced stop command.

You can confirm the status of batch applications from the batch application information. For details on how to display the batch applications information, see 4.5.4 Displaying a list of batch application information.
