This subsection describes the configuration of a system using the scheduling functionality.

The following figure shows an example of configuring a system using the scheduling functionality.

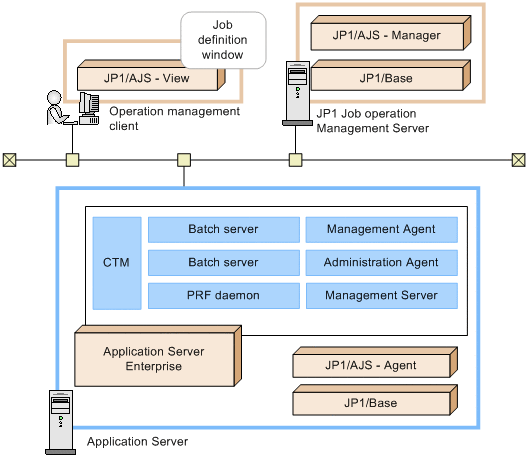

Figure 4-4 Example of configuring a system using the scheduling functionality

In this figure, the system that is executing batch applications is integrated with JP1/AJS. If you do not integrate the system with JP1/AJS, the management client, JP1 Job Management Server, and JP1/AJS - Agent and JP1/Base of Application Server, shown in the above figure, are not required. For the operation procedures of batch servers and batch applications, see 2.2.2(1) System integrated with JP1/AJS and 2.2.2(3) System not integrated with JP1/AJS, BJEX, and JP1/Advanced Shell.
