Appendix E.20 Analysis when CJMSP Broker stops due to an error

The following figure shows the procedure of analysis from the status when CJMSP Broker stops due to an error.

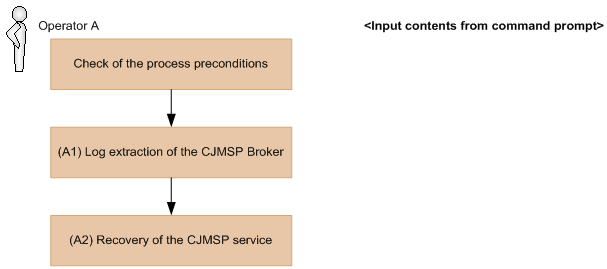

Figure E-19 Procedure of analysis from the status when CJMSP Broker stops due to an error

[Figure]

Organization of this subsection: (1) Process preconditions; (2) Information and supplementary explanation required for execution

(1) Process preconditions

The J2EE server process is running.
The CJMSP resource adapter is running.
The CJMSP Broker process is running.
The application is running.

(2) Information and supplementary explanation required for execution

The coding, such as (A1), corresponds to the coding in the figure.

(A1): Check the log beneath Cosminexus-installation-directory/CC/cjmsp/var/instances/instance-name/log, and analyze the problem.

(A2): Recover the Cosminexus JMS Provider service according to the procedure described in Appendix E.23 Recovery when CJMSP Broker stops due to an error.
