Checking the persistence subscriber status

The following figure shows the procedure for checking the latest status of the persistence subscriber.

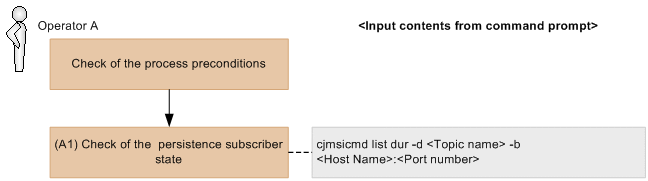

Figure E-17 Procedure for checking the persistence subscriber status

[Figure]

Organization of this subsection: (1) Process preconditions; (2) Information and supplementary explanation required for execution

The coding, such as (A1), corresponds to the coding in the figure.

(A1)

Topic-name: Topic name containing the persistence subscriber you want to check

host-name:port-number: The host name and port number on which CJMSP Broker is running.; If you omit the port number when CJMSP Broker is started, the default port number 7676 is used. In this case, you can omit the -b option.

An example of display is as follows:


-----------------------------------------------------------------------
Durable Sub. Name Client ID Number of Messages Durable Sub. State
-----------------------------------------------------------------------
DurableSUB1 clientId 9998 INACTIVE
KDAN34323-I Successfully listed durable subscriptions.

Appendix E.18 Checking the persistence subscriber status

(1) Process preconditions

(2) Information and supplementary explanation required for execution
