Appendix E.8 Checking the state of the CJMSP resource adapters and CJMSP Broker
This subsection describes the procedure for checking whether a Cosminexus JMS Provider service is available.
You check the states of the J2EE servers and applications with the management portal (Management Server) functionality.
The following figure shows the procedure for checking the state of the CJMSP resource adapters and CJMSP Broker.

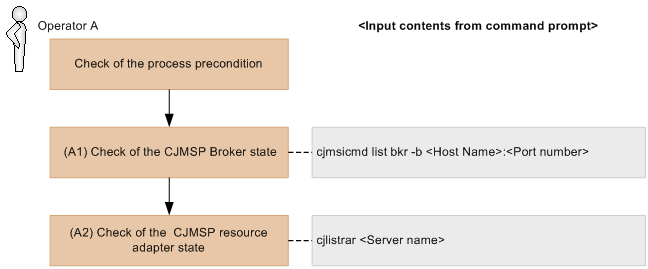

Figure E-7 Procedure for checking the state of the CJMSP resource adapters and CJMSP Broker
![[Figure]](FIGURE/ZU0E0090.GIF)
- Organization of this subsection
- (1) Process preconditions
- (2) Information and supplementary explanation required for execution
(1) Process preconditions
- The J2EE server process is running.
- The CJMSP resource adapter is running.
- The CJMSP Broker process is running.
- The application is running.
(2) Information and supplementary explanation required for execution
The coding, such as (A1), corresponds to the coding in the figure.
- (A1)
- host-name:port-number
- The host name and port number on which CJMSP Broker is running.
- If you omit the port number when CJMSP Broker is started, the default port number 7676 is used. In this case, you can omit the -b option.
- (A2)
- server-name
- Server name set up with Management Server
- CJMSP service start status
- When CJMSP Broker is OPERATING and the CJMSP resource adapter is running, the state of the Cosminexus JMS Provider service is running.
- An example result of (A1) is as follows:
----------------------
Address State
----------------------
localhost:7676 OPERATING
|
- An example result of (A2) is as follows:
running Cosminexus_JMS_Provider_RA
|
